China XLPE Insulated Boat Power Cables 0.6/1.2kV Fire Resistant CCS BV Approval for sale

XLPE Insulated Boat Power Cables 0.6/1.2kV Fire Resistant CCS BV Approval

Price Negotiable

Price: US$1.00~US$20.00

MOQ: 100 Meter

Delivery Time: 25 WORKING DAYS

Brand: JIANGNAN CABLE

Product Description

0.6/1kV Rated Voltage Marine Power Cable with 90°C Operating Temperature and Flame Retardant XLPE Insulated Marine Cable CJV82/DA/SA/NA

0.6/1kV Rated Voltage Marine Power Cable

XLPE insulated marine power cable with 90°C operating temperature, designed for reliable electrical power distribution in marine environments.

Executive Standard

This product complies with IEC60092-353 standard.

Cable Categories and Types

CJV/DA/SA/NA: XLPE insulated polyvinyl chloride sheathed marine power cable DA SA NA type
CJV80/DA/SA/NA: XLPE insulated PVC inner sheathed copper wire braided armoring power cable for shipment type DA SA NA
CJV90/DA/SA/NA: XLPE insulated PVC inner sheathed steel wire braided armoring power cable for shipment type DA SA NA
CJV82/DA/SA/NA: XLPE insulated PVC inner sheathed copper wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJV92/DA/SA/NA: XLPE insulated PVC inner sheathed wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJPJ/SC/NC: XLPE insulated crosslinked polyolefin outer sheathed marine power cable SC NC type
CJPJ80/SC/NC: XLPE insulated XLPE inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPJ90/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed steel wire braided armoring power cable for marine type SC NC
CJPJ85/SC/NC: XLPE insulated crosslinked polyolefin copper wire braided armoring power cable for marine type SC NC
CJPJ95/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJPF/SC/NC: XLPE insulated polyolefin sheathed marine power cable SC NC type
CJPF80/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPF90/SC/NC: XLPE insulated polyolefin inner sheathed steel wire braided marine power cable SC NC type
CJPF86/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armored polyolefin outer sheathed marine power cable SC NC type
CJPF96/SC/NC: XLPE insulated polyolefin inner sheathed wire braided armored polyolefin outer sheathed marine power cable SC NC type
CJPJR/SC: XLPE insulated crosslinked polyolefin sheathed marine power flexible cable type SC
CJPFR/SC: XLPE insulated polyolefin sheathed marine power flexible cable type SC
CJ82/DA/SA/NA: XLPE insulated copper wire braided armoring PVC sheathed marine power cable SC NC type
CJ92/DA/SA/NA: XLPE insulated wire braided armoring polyvinyl chloride sheathed marine power cable SC NC type
CJ85/SC/NC: XLPE insulated copper wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ95/SC/NC: XLPE insulated wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ86/SC/NC: XLPE insulated copper wire braided armoring polyolefin outer sheathed marine power cable SC NC type
CJ96/SC/NC: XLPE insulated wire braided armoring polyolefin outer sheathed marine power cable SC NC type

Product Application

Suitable for power and lighting equipment in marine structures including cabins and offshore oil platforms.

Cable Parameters (0.6/1kV Rated Voltage)

Rated Voltage of 0.6/1kV
No.of cores x sectional area	CJV82/DA/SA CJV92/DA/SA CJPJ85/SC CJPJ95/SC CJPF86/SC CJPF96/SC				CJV82/NA CJV92/NA CJPJ85/NC CJPJ95/NC CJPF86/NC CJPF96/NC
	Over diam,mm		Approx weight		Over diam.mm		Approx. weight
	Norn.	Max	Type 82/85/86	Type 92/95/96	Nam.	Max	Type 82/85/86	Type 92/95/96
1*1	7.2	9.2	93		/	7.7	9.7	101	/
1*1.5	7.5	9.5	102			8.0	10.0	111
1*2.5	7.9	9.9	117			8.4	10.4	127
1*4	8.4	10.4	139			8.9	10.9	149
1*6	9.0	11.0	166			9.5	11.5	176
1*10	9.9	11.9	224			10.4	12.4	243
1*16	10.9	12.9	302			11.4	13.4	315
1*25	12.7	14.7	416			13.2	15.2	447
1*35	14.0	16.0	542			14.5	16.5	558
1*50	15.7	17.7	715			16.2	18.2	733
1*70	18.1	20.1	976			18.6	20.6	996
1*95	20.0	22.0	1284			20.5	22.5	1307
1*120	22.7	24.7	1600			23.2	25.2	1626
1*150	24.8	26.8	1911			25.3	27.3	1939
1*185	27.5	29.5	2362			28.0	30.0	2410
1*240	30.4	32.4	3002			30.9	32.9	3036
1*300	33.4	35.4	3674			33.9	35.9	3711
2*1	10.8	13.0	164		160	11.8	14.0	191	187
2*1.5	11.4	13.6	192		188	12.4	14.6	213	209
2*2.5	12.4	14.6	226		222	13.4	15.6	249	245
2*4	13.4	15.6	275		271	14.4	16.6	316	311
2*6	14.6	16.8	354		349	15.6	17.8	381	376
2*10	16.6	18.8	498		490	17.6	19.8	529	521
2*16	18.8	21.0	694		683	19.8	22.0	742	730
2*25	23.0	25.2	1036		1022	24.0	26.2	1081	1067
2*35	25.8	28.0	1315		1300	26.8	29.0	1380	1364
2*50	29.4	31.6	1742		1720	30.4	32.6	1798	1776
2*70	33.8	36.0	2327		2301	34.8	37.0	2428	2402
2*95	38.2	40.4	3077		3047	39.2	41.4	3167	3137
2*120	42.0	44.2	3739		3707	43.0	45.2	3863	3830
3*1	11.2	13.4	188		185	12.3	14.5	213	209
3*1.5	11.9	14.1	216		212	12.9	15.2	241	237
3*2.5	12.9	15.2	259		255	14.0	16.2	302	298
3*4	14.0	16.2	339		335	15.1	17.3	369	364
3*6	15.5	17.7	422		416	16.6	18.8	466	459
3*10	17.4	19.7	607		599	18.5	20.7	679	668
3*16	19.8	22.0	872		860	20.9	23.1	915	902
3*25	24.2	26.5	1294		1280	25.3	27.5	1361	1346
3*35	27.8	30.1	1713		1693	28.9	31.1	1789	1768
3*50	31.4	33.7	2239		2215	32.5	34.8	2323	2298
3*70	36.2	38.4	3033		3005	37.2	39.5	3129	3101
3*95	40.6	42.9	4045		4014	41.7	44.0	4128	4096
3*120	44.9	47.1	4995		4953	46.0	48.2	5115	5072
3*150	49.4	51.6	6043		5996	50.5	52.7	6143	6095
3*185	55.0	57.2	7464		7412	56.0	58.3	7574	7521
4*1	11.9	14.2	216		212	13.1	15.4	244	240
5*1	12.9	15.2	242		238	14.2	16.6	294	289
7*1	13.7	16.1	280		276	15.2	17.6	337	332
10*1	16.6	19.2	414		407	18.6	21.2	508	496
12*1	17.0	19.6	449		441	19.1	21.7	551	540
14*1	17.7	20.4	501		493	19.9	22.6	614	602
16*1	18.7	21.4	571		559	21.6	24.4	669	656
19*1	19.5	22.3	638		626	22.6	25.4	775	761
24*1	23.2	26.2	825		811	26.6	29.6	966	950
27*1	23.6	26.6	906		891	27.1	30.1	1114	1093
30*1	24.3	27.4	985		969	27.9	31.0	1204	1182
33*1	25.3	28.4	1005		989	29.0	32.2	1249	1227
37*1	26.7	29.9	1084		1068	30.2	33.4	1326	1303
4*1.5	12.8	15.1	248		244	14.0	16.3	295	290
5*1.5	13.7	16.0	282		278	15.1	17.4	336	331
7*1.5	14.6	17.0	348		343	16.1	18.5	403	396
10*1.5	17.8	20.4	523		512	19.8	22.4	600	588
12*1.5	18.5	21.1	570		559	20.5	23.2	655	642
14*1.5	19.2	21.9	637		625	22.0	24.7	718	705
16*1.5	20.1	22.8	695		682	23.1	25.8	843	829
19*1.5	22.0	24.8	767		754	24.5	27.3	927	912
24*1.5	25.2	28.2	990		975	28.6	31.6	1194	1172
27*1.5	25.7	28.7	1160		1139	29.1	32.2	1331	1308
30*1.5	27.0	30.1	1257		1235	30.2	33.3	1460	1436
33*1.5	28.1	31.2	1290		1269	31.5	34.6	1482	1458
37*1.5	29.0	32.2	1394		1371	32.5	35.7	1619	1594
4*2.5	13.8	16.1	319		314	15.0	17.3	354	349
5*2.5	14.8	17.1	367		362	16.1	18.5	420	413
7*2.5	16.0	18.4	448		441	17.5	19.9	506	498
10*2.5	19.6	22.2	665		653	22.2	24.8	736	723
12*2.5	20.1	22.8	732		719	22.8	25.4	869	855
14*2.5	22.0	24.7	808		795	24.2	26.9	956	942
16*2.5	23.0	25.7	946		932	25.3	28.1	1050	1035
19*2.5	24.0	26.8	1050		1035	26.9	29.7	1180	1164
24*2.5	28.4	31.4	1347		1325	31.4	34.4	1515	1492
27*2.5	28.9	32.0	1504		1481	32.0	35.0	1710	1684
30*2.5	29.8	32.9	1655		1631	33.0	36.1	1879	1852
33*2.5	31.2	34.3	1697		1673	34.5	37.7	1926	1900
37*2.5	32.2	35.4	1858		1833	35.7	38.9	2106	2079
Note: Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.

Technical Characteristics

Rated voltage: 0.6/1(1.2)kV
Maximum continuous operating temperature: 90°C
Flame retardant performance complies with IEC60332-1-2 or IEC60332-3-22 standards
Fire resistance conforms to IEC60331-21 standard
Minimum bending radius for single-core cables: 6 times cable diameter

Cable Identification

Insulated core: White insulation with black numbering
Sheath printed with manufacturer name, cable type, voltage rating, specifications, length marking, etc.

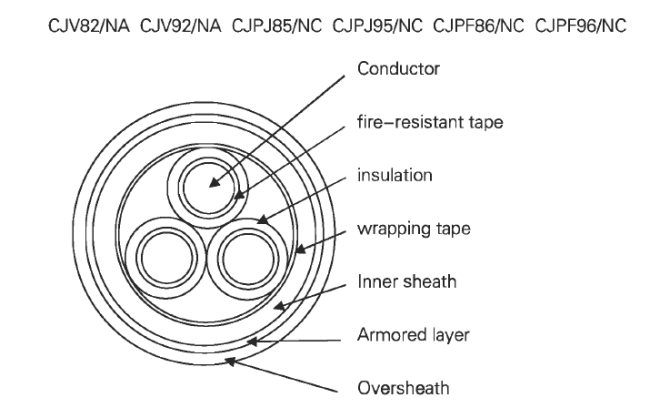

Structure Diagram
