18KW-40KW Marine Steam Heating Fan With LF3 Antirust Aluminum Impeller

CNF(Z)series steam heating fan

CNF(Z) Series Marine Steam Heating Fan with LF3 Antirust Aluminum Impeller and 0.3MPa Saturated Steam for 18-40KW Heating

When ship is anchoring,ambient temperature is near zero,CNF series marine heating fan can ensure the needed temperature of main & auxiliary engine room It is very important and essential for main & auxiliary engine quick start and help ship ready for navigation.The heating fans the following series.

CNF Series heating fan can be operated with 415V,380V,220v, 50Hz or 440V,460V,480V,60Hz marine AC motor.

Note:All fans can be designed specially upon request

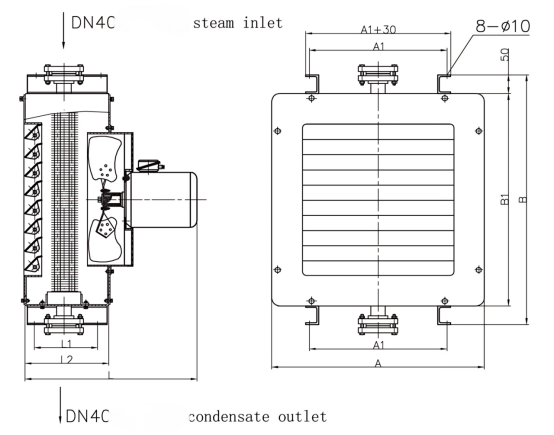

CNF(Z) steam series heating fans are mainly composed by cooling coil,impeller,inlet ring and motor etc.

Cooling tube and cooling fin are winded on the cooling pipe.(It can also use case according to the requirement).The contact area of cooling fin and cooling pipe is wide and compact,and improve the heat transferring ability and working pressure. Heating medium is 0.3MPa saturated steam, the working pressure of max,saturated steam is 1.0MPa.Impeller is LF3 antirust Aluminum. Casing is welded by common steel sheet or stainless steel.

Model explanation

C:marine or navy

NF: heating fan

(Z):heating medium is steam

(R) heating medium is hot water

(D) heating medium is electric heating

(Y) electric heating is hot oil

15: heating capacity is 15000kcal/h(rounded of)or KW
