Antirust Aluminum Marine Heating Fan 500-5000m3/H Boat Fans Ventilation
CNF(D) Series Electric Heating Fan with Stainless Steel Heating Pipe and LF3 Antirust Aluminum Impeller for 500-5000 m³/h Marine Ventilation
CNF(D)series electric heating fan
When ship is anchoring,ambient temperature is near zero,CNF series marine heating fan can ensure the needed temperature of main & auxiliary engine room It is very important and essential for main & auxiliary engine quick start and help ship ready for navigation.The heating fans the following series.
CNF Series heating fan can be operated with 415V,380V,220v, 50Hz or 440V,460V,480V,60Hz marine AC motor.
Note:All fans can be designed specially upon request
CNF(D)series heating fans are mainly composed by electric heater,impeller,inlet ring,motor and electric control box.The electric heating pipes arestainless steel and wrapped with stales steel tape.Impeller is LF3 antirust aluminum.Casing and electric control box are welded by common steel sheet or stainless steel.

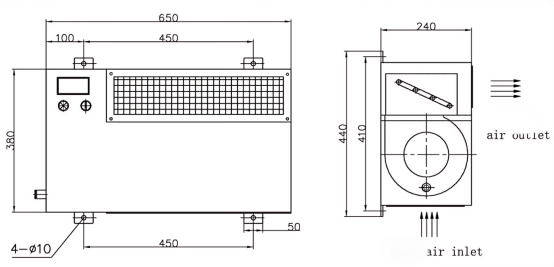

Overall dimension and parameter of cow power wall-mounted heating fan
Main Technical Parameters
|
MODEL |
CNF(D)-1.0-3.0 |
|
Heating capacity(KW) |
1.0-3.0 |
|
Flow rate(m3/h) |
500 |
|
Blower power |
40 |
|
Rating |
220V |

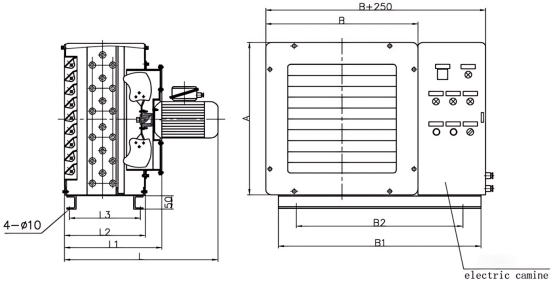

Overall dimension and parameter of high power power seat type or wall-mounted heating fan
Remark:The electric control cabinet and the heating fan itself may be installed toghter or suplied sepenrately according to the demand of user.
|
Model |
Heating capacity (KW) |
Flow rate m3/h |
Motor |
Dimensions(mm) |
Weight KG |
||||||||
|
Power (KW) |
Model |
A |
B |
B1 |
B2 |
L |
L1 |
L2 |
L3 |
||||
|
CNF(D)-3～6 |
3～6 |
500～1000 |
0.25 |
Y711-4-H |
420 |
420 |
600 |
500 |
500 |
330 |
250 |
200 |
48 |
|
CNF(D)-7～14 |
7～14 |
1200～2000 |
0.25 |
Y711-4-H |
550 |
550 |
700 |
600 |
500 |
380 |
300 |
250 |
62 |
|
CNF(D)-15～22 |
15～22 |
2500～3500 |
0.37 |
Y712-4-H |
650 |
650 |
800 |
700 |
500 |
380 |
300 |
250 |
82 |
|
CNF(D)-22～30 |
22～30 |
3500～5000 |
0.75 |
Y802-4-H |
750 |
750 |
900 |
800 |
600 |
380 |
300 |
250 |
98 |
Model explanation
C:marine or navy
NF: heating fan
(Z):heating medium is steam
(R) heating medium is hot water
(D) heating medium is electric heating
(Y) electric heating is hot oil
15: heating capacity is 15000kcal/h(rounded of)or KW
