PANAMA CANAL Mooring Roller Fairlead With 48T AND 70T Load

Price Negotiable

Price: NEGOTIABLE

MOQ: 3

Delivery Time: 15 WORKING DAYS

Brand: OEM

Product Description

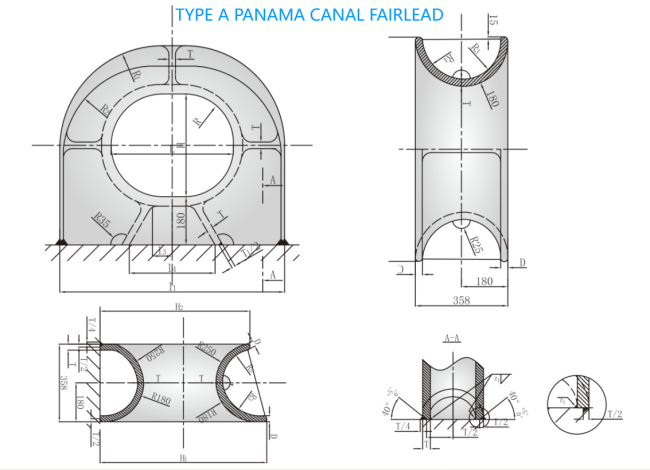

THE DIMENSIONS AND SWL OF TYPE A PANAMA CANAL FAIRLEAD											mm
NOMINAL SIZE DN	L	L1	L2	L3	L4	H	H1	H2	R	R1	R2
310	310	708	688	105	310	260	639	541	130	329	231
360	360	760	740	130	360	260	640	543	130	330	233
NOMINAL SIZE DN	R3	R4	R5	T	D	WELD LEG HEIGHT		SWL		Weight kg
NOMINAL SIZE DN	R3	R4	R5	T	D	Z1		KN	t	Weight kg
310	142	140	198	32	38	8		471	48	257
360	140	138	196	34	40	8.5		687	70	286
A: A certain welding method can vary while maintaining the same welding capacity/strength. B: The SWL values in the table are for reference only. These reference values are calculated based on the load values in Appendix A. The SWL can be adjusted according to the actual load conditions, and the actual marking values should be approved by both the user and the manufacturer. C: The calculated weight is for reference only.

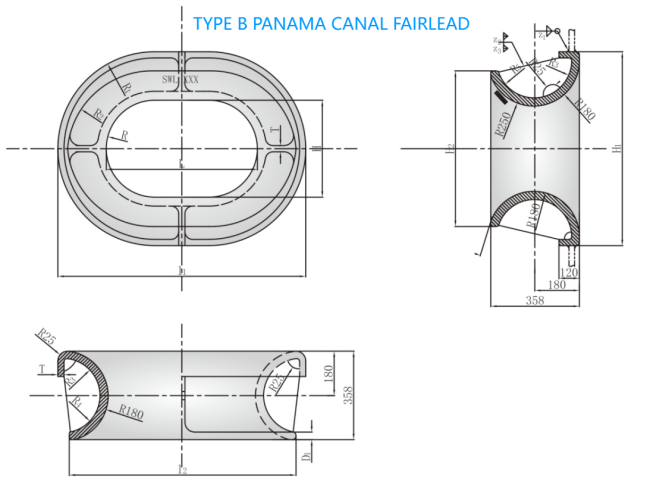

THE DIMENSIONS AND SWL OF TYPE B PANAMA CANAL FAIRLEAD											mm
NOMINAL SIZE DN	L	L1	L2	H	H1	H2	R	R1	R2	R3	R4
310	310	720	681	260	670	453	130	335	226.5	149	147
360	360	770	733	260	670	456	130	335	228	147	145
NOMINAL SIZE DN	R5	T	D1	θ	WELD LEG HEIGHT			SWL		Weight kg
NOMINAL SIZE DN	R5	T	D1	θ	z1	z2	z3	KN	t	Weight kg
310	205	25	31	44°	10	6	4	687	70	228
360	203	27	33	43°	10	6	4	775	79	248
A: A certain welding method can vary while maintaining the same welding capacity/strength. B: The SWL values in the table are for reference only. These reference values are calculated based on the load values in Appendix A. The SWL can be adjusted according to the actual load conditions, and the actual marking values should be approved by both the user and the manufacturer. C: The calculated weight is for reference only.
