550mm 600mm 800mm Width Marine Manhole High Corrosion Resistance
Price:
NEGOTIABLE
MOQ:
5
Delivery Time:
15 WORKING DAYS
Brand:
OEM
Product Description

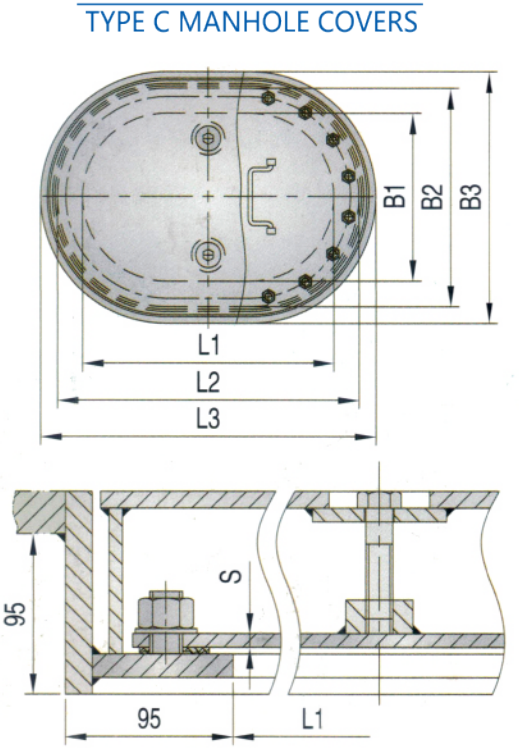

| TYPE C MANHOLE COVERS | |||||||||||
| TYPE | NOMINAL SIZE |
L1 | L2 | L3 | B1 | B2 | B3 | S | FASTENER | WEIGHT KG |
|
| mm | DIA | QUT | |||||||||
| C | 450X350 | 450 | 570 | 650 | 350 | 470 | 550 | 10 | M20 | 16 | 116.6 |
| 12 | 121.6 | ||||||||||
| 14 | 128.6 | ||||||||||
| 600X400 | 600 | 720 | 800 | 400 | 520 | 600 | 10 | 20 | 136.1 | ||
| 12 | 142.2 | ||||||||||
| 14 | 149.5 | ||||||||||
| 800X600 | 800 | 920 | 1000 | 600 | 720 | 800 | 12 | 26 | 171.5 | ||
| 14 | 182.6 | ||||||||||
| 18 | 206.8 | ||||||||||
| 800X400 (ELLIPSE) |
800 | 930 | 1010 | 400 | 530 | 610 | 12 | 24 | 102.8 | ||
| 14 | 118.2 | ||||||||||
| 18 | 146.2 | ||||||||||
| APPLICABLE TO WATERTIGHT AND OILTIGHT MANHOLE COVERS FOR SHIPS,NOT SUITABLE FOR BOILERS AND PRESSURE VESSELS,AND COMPLIES WITH ISO 5894 | |||||||||||
