A0 Class Marine Windows QG064-00 Aluminium Boat Windows Fire Proof
Price:
NEGOTIABLE
MOQ:
5
Delivery Time:
20 WORKING DAYS
Brand:
OEM
Product Description

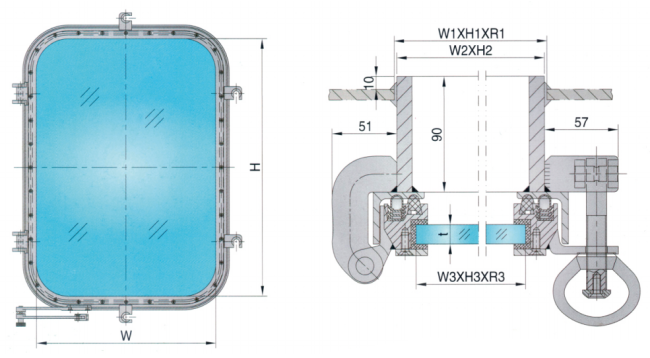

| A0-CLASS FIRE-RESISTANT OPENABLE RECTANGULAR WINDOW | |||||||
| NO | NOMINAL SIZE WXH |
SIZE OF B.H.OPENING W1XH1XR1 |
SIZE OF OUTLINE W2XH2 |
GLASS THICK | SIZE OF GLASS W3XH3XR3 |
||
| HEAVY | MEDIUM | ||||||
| 1 | 300X425 | 352X477XR76 | 348X473 | 15 | 15 | 318X443XR59 | |
| 2 | 355X500 | 407X552XR76 | 403X548 | 15 | 15 | 373X518XR59 | |
| 3 | 400X560 | 452X612XR76 | 448X608 | 15 | 15 | 418X578XR59 | |
| 4 | 450X630 | 502X682XR126 | 498X678 | 15 | 15 | 468X648XR109 | |
| 5 | 500X710 | 552X762XR126 | 548X758 | 15 | 15 | 518X728XR109 | |
| 6 | 560X800 | 612X852XR126 | 608X848 | 15 | 15 | 578X818XRX109 | |
| Example of Marking: AO-CLASS fire-resistant openable rectangular window (left inward opening)with a transparent size of560×800mm A0-CLASS FIRE-RESISTANT OPENABLE RECTANGULAR WINDOW 560×800-LIQG064-00 THE GLASS COULD ALSO BE HEATED GLASS IF NEEDED. |
|||||||
