OEM Aluminum Marine Doors Marine Water Tight Doors GB/T3477-2023
Price:
NEGOTIABLE
MOQ:
5
Delivery Time:
15-20 WORKING DAYS
Brand:
OEM
Product Description

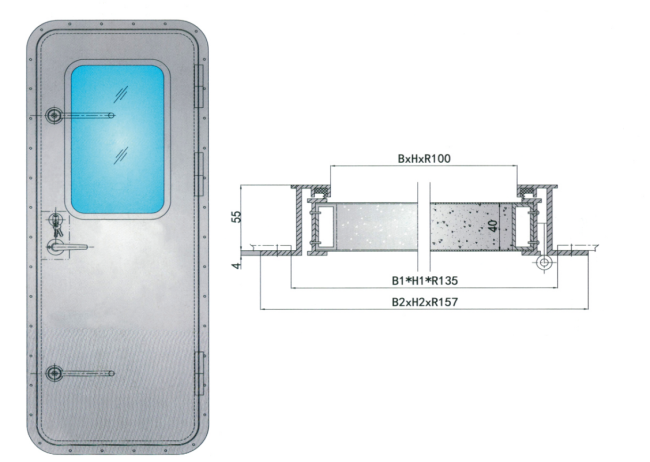

| ALUMINIUM WEATHERTIGHT DOOR | |||
| Nominal size BxHxR |
SIZE OF B.H.OPENING B1×H1×R1 |
Size of frame B2×H2×R2 |
Weight KG |
| 500×1000×R100 | 570×1070×R135 | 614×1114×R157 | 28.6 |
| 500×1200×R100 | 570×1270×R135 | 614×1314×R157 | 28.3 |
| 500×1400×R100 | 570×1470×R135 | 614×1514×R157 | 37.0 |
| 600×1200×R100 | 670×1270×R135 | 714×1314×R157 | 45.6 |
| 600×1400×R100 | 670×1470×R135 | 714×1514×R157 | 51.2 |
| 600×1600×R100 | 670×1670×R135 | 714×1714×R157 | 62.9 |
| 1. Example Of Marking: Through-hole size:500×1000,D=150,left outward opening,standard material door style,ALUMINIUM WEATHERTIGHT DOOR ALUMINIUM WEATHERTIGHT DOOR 500X1000-150LO GB/T 3477-2023 2.USED FOR CABIN OF VARIOUS KINDS OF SHIPAND WAR SHIPS,THE DOOR SURFACE WILL BE ANODIZED BAKING DINISHED OR PVC CIVERED. |
|||
