Manual Hinged Boat Cabin Door Pressure Tight Aluminum Boat Door
Price:
NEGOTIABLE
MOQ:
1
Delivery Time:
25 WORKING DAYS
Brand:
OEM
Product Description

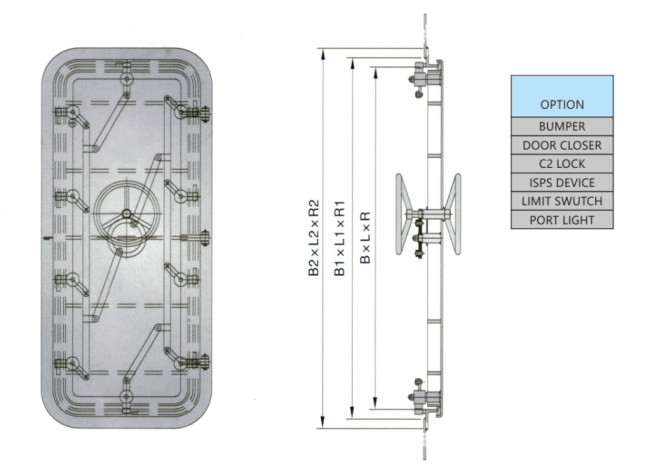

| MANUAL HINGED PRESSURE-TIGHT WATERTIGHT DOOR | mm | ||||||||||
| SIZE OF DOORWAY BXLXR |
SIZE OF B.H.OPENING B1XL1XR1 |
SIZE OF OUTLINE B2XL2XR2 |
THICKNESS T |
WEIGHT KG |
|||||||
| 600×1500×100 | 700×1600×150 | 800×1700×200 | 8 | 206 | |||||||
| 600×1600×100 | 700×1700×150 | 800×1800×200 | 212 | ||||||||
| 700×1500×100 | 800×1600×150 | 900×1700×200 | 227 | ||||||||
| 700×1600×100 | 800×1700×150 | 900×1800×200 | 239 | ||||||||
| 700×1700×100 | 800×1800×150 | 900×1900×200 | 250 | ||||||||
| 800×1500×100 | 900×1600×150 | 1000×1700×200 | 248 | ||||||||
| 800×1600×100 | 900×1700×150 | 1000×1800×200 | 263 | ||||||||
| 800×1700×100 | 900×1800×150 | 1000×1900×200 | 289 | ||||||||
| 1. Example of Marking: Manual Hinged Type Pressure-Tight Watertight Door with a through-hole size of 600X1500 and a door panel thickness of MANUAL HINGED TYPE PRESSURE-TIGHT WATERTIGHT DOOR 600X1500-8-5.1CB/T33572-2017 2. THE APPLICABLE WATER PRESSURE FOR THIS DOOR SHALL NOTEXCEED0.15MPa. |
|||||||||||
