Steel Weathertight Door In Ship Quick Acting Marine Access Door
Price:
NEGOTIABLE
MOQ:
5
Delivery Time:
25 WORKING DAYS
Brand:
OEM
Product Description

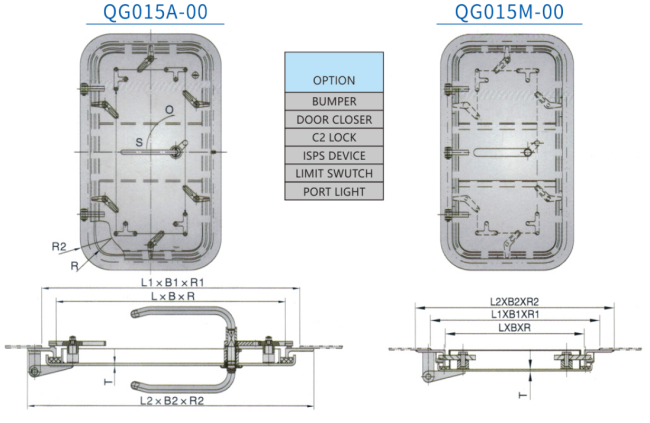

| QUICK-ACTING WEATHERTIGHT (WATERTIGHT) STEEL DOOR | |||||||
| SIZE OF DOORWAY LXBXR |
SIZE OF B.H.OPENING L1XB1XR1 |
SIZE OF OUTLINE L2XB2XR2 |
THICKNESS T |
WEIGHT KG | |||
| 262WHL003A-00 | 262WHL003M-00 | ||||||
| 1400×600×R100 | 1500×700×R150 | 1600×800×R200 | 6 | 120 | 129 | ||
| 8 | 138 | 147 | |||||
| 1400×900×R100 | 1500×1000×R150 | 1600×1000×R200 | 6 | 145 | 160 | ||
| 8 | 175 | 185 | |||||
| 1600×600×R100 | 1700×700×R150 | 1800×800×R200 | 6 | 126 | 137 | ||
| 8 | 144 | 155 | |||||
| 1600×750×R100 | 1700×850×R150 | 1800×950×R200 | 6 | 147 | 161 | ||
| 8 | 172 | 186 | |||||
| 1600×900×R100 | 1700×1000×R150 | 1800×1000×R200 | 6 | 163 | 178 | ||
| 8 | 191 | 206 | |||||
| 1. Marking example:The through-hole size is1600X600,and the door panel thickness is 8mm.It is a steel weathertight door (left outwardopening) QUICK-ACTING WEATHERTIGHT STEEL DOOR 1600X600-8-6.1JY015A-00 The through-hole size is 1600X750,and the door panel thickness is 8mm.Itis steel quick-acting watertight door(left external opening) QUICK-ACTING WATERTIGHT STEEL DOOR1600X750-8-6.1JY015M-00 2.Usage:THESE TWO TYPES OF DOORS CAN BE USED AS BOTH WEATHERTIGHT AND WATERTIGHT DOORS. WHEN USED AS WATERTIGHT DOORS,THE WATER PRESSURE SHALL NOT EXCEED 0.07MPa |
|||||||
