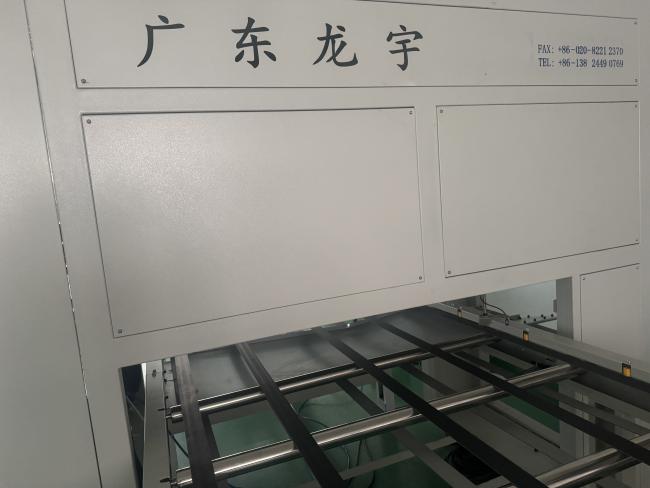

One Component Glue Spraying Machine For Marine Board Lamination
Single-Component Glue Spraying Machine
Specifications:
|
Technical Parameter |
Specification |
|
Model Number |
LY-01-1300 |
|
Work Coating Amount |
500 - 4000 g/min |
|
Adhesive Flow Accuracy |
≤ ±5% |
|
Glue Nozzle Hole Interval |
17mm |
|
Coating Width Range |
100 - 1300 mm (Auto-recognition) |
|
Max. Production Line Speed |
15 m/min |
|
Glue Application (Unit Area) |
100 - 400 g/m² (Total ≤ 4000 g/min) |
|
Adhesive Viscosity Range |
Up to 25,000 mPa.s |
|
Adhesive Type |
Single-Component |
|
Equipment Length (Standard) |
6 m (Customizable) |
|
Air Supply |
0.6 - 0.8 MPa |
|
Power Supply |
380V, 50Hz, 3-Phase (Optional) |
|
Max. Power |
7 KW |
Quick Detail:

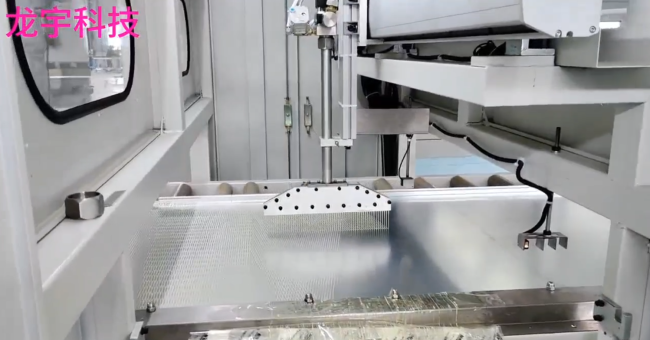

1. High-Speed Coating: Work coating amount from 500 to 4000 g/min.
2. Precision Control: Adhesive flow accuracy within ±5%.
3. Wide Adaptability: Coating width range 100-1300mm, automatically adjustable.
4. High Efficiency: Compatible with production line speeds up to 15m/min.
5. Simplified Process: Designed for single-component adhesives (viscosity below 25,000 mPa.s).
6. Robust Design: Standard length 6m (customizable), power up to 7KW.
Notices:
1. Ensure the air supply is stable and meets the required pressure (0.6-0.8 MPa) before operation.
2. Use only single-component adhesives within the specified viscosity range (≤ 25,000 mPa.s) for optimal performance.
3. Regular maintenance of the glue nozzle is recommended to prevent clogging.
Applications:
Primarily used for the automated glue application process in manufacturing:
1. Door and Door Panels
2. Automotive Interior Panels and Trim
3. Building Insulation Wall Panels
4. Other large-format panel laminating industries.
