CNC Automatic Glue Spraying Machine 15KW 1300mm for Medical Furniture Panels
Price:
USD: 30000.00-50000.00
MOQ:
1 Set
Delivery Time:
30-60 days
Brand:
LONGYU
Product Description
CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels
Fully Automatic CNC Gluing Machine
The LY-04-1300 Fully Automatic CNC Gluing Machine revolutionizes adhesive application for non-standard, irregular-shaped panels. It integrates advanced infrared scanning technology to first map the exact dimensions and contours of each workpiece. This data then guides the computer numerical control (CNC) system to execute precise, programmable glue paths automatically.
| Technical Parameter | Specification |
|---|---|
| Model Number | LY-04-1300 |
| Work Coating Amount | 500 - 4000 g/min |
| Adhesive Flow Accuracy | ≤ ±5% |
| Glue Nozzle Hole Interval | 8mm |
| Coating Width Range | 100 - 1300 mm (Optional) |
| Max. Production Line Speed | 8 m/min |
| Board Inspection Range (W x L) | 0.2 - 1.3 M (Wide) x 1.0 - 2.5 M (Length) |
| Glue Application (Unit Area) | 120 - 400 g/m² (Total ≤ 4000 g/min) |
| Adhesive Viscosity Range | Up to 25,000 mPa.s |
| Adhesive Type | Two-Component |
| Air Supply | 0.6 - 0.8 MPa |
| Power Supply | 380V, 50Hz, 3-Phase (Optional) |
| Max Power | 15 KW |

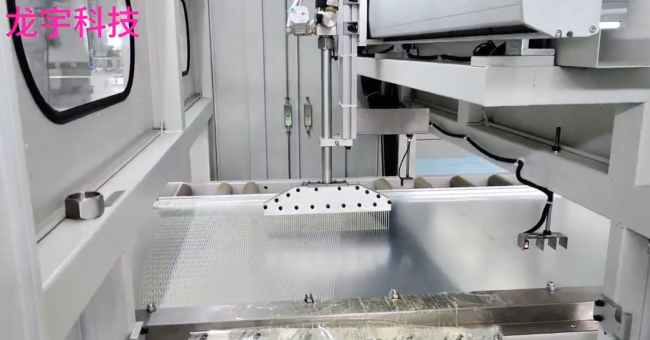

Machine Overview
Operation Notices
- Ensure the infrared detection system is kept clean and calibrated for accurate board profiling.
- Programming the CNC path is required for new panel shapes, which unlocks the machine's flexibility.
- Use compatible two-component adhesives to leverage the full potential of this precision dispensing system.
Applications
Perfect for automated glue application on custom-shaped and irregular panels, such as:
- Medical Doors and Cabinets
- Bathroom Vanities and Baseboards
- Specialty Furniture Components
- Other custom woodworking or composite panels requiring contour following
