Automatic SPC Composite Board Production Line PLC Control 2 Boards/Min

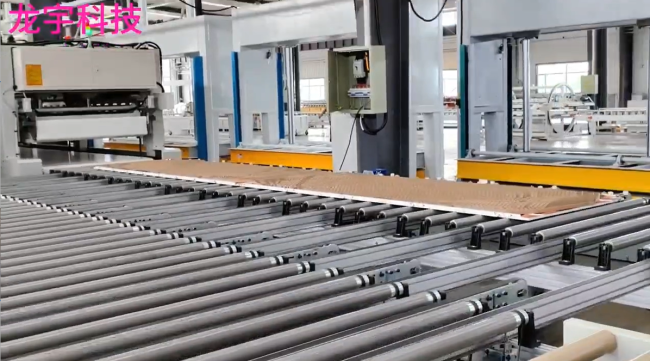

Automatic SPC Composite Board Production Line
Technical Specifications
| Item | Specification |
|---|---|
| Model | LY-18-1300 |
| Machine Type | SPC Composite Board Production Line |
| Applicable Board Width | 1–1.3m |
| Applicable Board Length | 2–3m |
| Applicable Board Thickness | 1–3mm |
| Production Efficiency | 2 boards/min |
| Glue Spreading Width | 500–1300mm |
| Glue Flow Rate | 500–4000g/min |
| Glue Application per m² | 100–300g/m² |
| Adhesive Flow Accuracy | ≤ ±5% |
| Glue Hole Interval | 8mm |
| Adhesive Viscosity | Below 25000mpa.s |
| Adhesive Type | Dual Component |
| Press Pressure | 100T (Optional) |
| Equipment Length | 48m (Customizable) |
| Gas Source | 0.6–0.8MPA |
| Power Supply | 380V 50Hz Three Phase |
| Maximum Power | 70KW |
Quick Detail
1. Automatic SPC composite board production system
2. Designed for SPC panel and wood board lamination
3. Production efficiency up to 2 boards per minute
4. Glue spreading width 500–1300mm
5. Glue flow rate 500–4000g/min
6. Adhesive flow accuracy ≤ ±5%
7. Dual-component adhesive system
8. 100T hydraulic press machine
9. Customizable 48m production line length
10. Intelligent PLC automatic control system
Production Line Configuration
1. Three Axis Feeding Robotic Arm
2. Glue Spreading Machine
3. Cold Press Machine
4. Flipper Machine
5. Rail Platform Car
6. Three Axis Palletizing Robotic Arm
7. Elevating Positioning Platform
8. Corona Treater
Applications
1. SPC flooring panel manufacturing
2. Wood board composite panels
3. Silicon calcium insulation board lamination
4. Ecological door board production
5. Decorative building panel production
