4 Layers Vacuum Hot Pressing Production Line for RV / Refrigerated Truck Panels
Multilayer Vacuum Hot Pressing Production Line LY-15-3000 for RV & Refrigerated Truck Panels, 73M Length, 4 Layers
Specifications
| Parameter Category | Item | Specification |
|---|---|---|
| Basic Specs | Model | LY-15-3000 |
| Line Type | Multilayer Vacuum Hot Pressing Production Line | |
| Equipment Length | 73 m (Customizable) | |
| Processing Capacity | Applicable Board Width | 0.5 - 3 m (Customizable) |
| Applicable Board Length | 2 - 13 m | |
| Applicable Board Thickness | 1 - 100 mm | |
| Max. Production Line Speed | 6 m/min | |
| Glue Spraying System | Work Coating Amount | 500 - 4000 g/min |
| Flow Accuracy | ≤ ±5% | |
| Glue Nozzle Hole Pitch | 8 mm | |
| Coating Width Range | 1000 - 3000 mm (Optional) | |
| Glue per Unit Area | 200 - 1000 g/m² | |
| Adhesive Viscosity | ≤ 25,000 mpa.s | |
| Adhesive Type | Two-component / Single-component (Optional) | |
| Vacuum Hot Press | Press Type | 4-Layer Vacuum Hot Press |
| Vacuum Range | -0.01 ~ 0.08 MPa | |
| Utilities | Air Supply | 0.6 - 0.8 MPa |
| Power Supply | 380V 50Hz 3-Phase (Optional) | |
| Maximum Power | 200 KW |
Quick Detail:

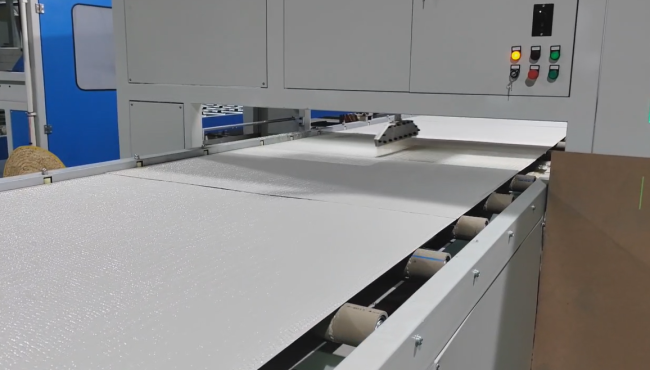

1. Integrated Multilayer Production Line: Combines unwinding, glue spraying, 4-layer negative pressure machine, and cutting in one continuous line.
2. 4-Layer Vacuum Hot Press: High-efficiency multilayer pressing for maximum output with minimal footprint.
3. Precision Glue Application: ±5% flow accuracy, 500-4000g/min coating amount, width up to 3000mm.
4. Large Format Capability: Handles panels up to 3m wide, 13m long, and 100mm thick.
5. High Output: Production line speed up to 6m/min, ideal for RV and refrigerated truck panel manufacturing.
Applications:
1. High-volume production of RV (Recreational Vehicle) cabin walls, floors, and roofs.
2. Manufacturing of refrigerated truck and trailer body panels.
3. Large-format sandwich panel production for other transportation and industrial applications.
