Portable Fast Response Dew Point Analyzer With Humidification Generator For Industrial Flue Gas
Price:
4600usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Capacitive-Resistance Method Industrial Flue Humidification Generator
Advanced air moisture humidity control device designed for laboratory and industrial applications, featuring precise capacitive-resistance measurement technology.
Product Overview
This intelligent dew point analyzer represents advanced technology with high automation levels and operational convenience. Utilizing European Standard techniques, it ensures accurate and steady data collection across a wide measurement range with fast response times and clear display interfaces.
Key Features
- Portable design: Lightweight construction for easy transport and field use
- Rapid testing: Immediate startup capability with fast humidity measurement results
- Gas efficient: Consumes only approximately 2L (101.2kPa) per test cycle
- Secure connections: German-imported self-lock joints prevent gas leakage
- Data storage: High-capacity memory stores up to 50 test results
- Comprehensive display: LCD shows dew point, micro-water (ppm), temperature, humidity, time, date, and battery status
- Connectivity: RS232 interface supports printer connectivity for result documentation
- Extended operation: Built-in 4Ah rechargeable battery provides up to 10 hours of continuous use
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range (Dew Point) | －80℃～+20℃ |
| Measurement Range (Moisture) | 0～19999uL/L |
| Accuracy | ±0.5℃(－60℃～＋20℃) ±1.0℃(－80℃～－60℃) |
| Resolution (Dew Point) | 0.1℃ |
| Resolution (Moisture) | 1uL/L |
| Response Time (+20℃,0.1Mpa) | 63%: 5s, 90%: 45s (-60℃~+20℃) 63%: 10s, 90%: 240s (+20℃~-60℃) |
| Sampling Flow Rate | 0.6L/min±20% |
| Pressure Range | 0～1.0Mpa |
| Operating Temperature | －20℃～＋60℃ |
| Operating Humidity | 0～100%RH |
| Storage Temperature | －20℃～＋80℃ |
| Charging Time | 4 hours |

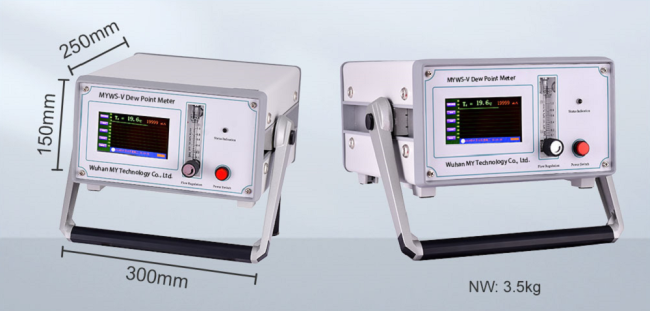

| Dimensions | 250*150*300mm³ |
| Weight | 3.5kg |

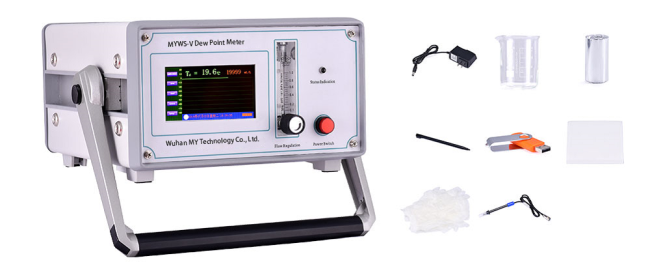

Standard Accessories
| Serial Number | Component | Quantity |
|---|---|---|
| 1 | Mainframe Unit | One |
| 2 | Test Line | One |
| 3 | Specification Documentation | Two |
| 4 | Inspection Report | One |
| 5 | Certification | One |
Product Images
