High Voltage Capacitance & Tan Delta Bridge with ±1% Accuracy & USB Control

Price Negotiable

Price: 1400usd

MOQ: 1

Delivery Time: 1 week

Brand: MINGYANG

Product Description

High Voltage Measurement Device: Transformer Capacitance Between Winding Tan Delta Bridge

This advanced high voltage measurement device provides comprehensive testing capabilities for transformer capacitance between winding tan delta bridge applications, offering precise measurements and robust functionality for industrial electrical testing.

Technical Specifications

Measurement Range	Capacitance: 2μF～2000μF Inductance: 5mH～5000mH Current: 20mA～2000mA
Measurement Accuracy	Capacitance: ± (1% reading + 2 words) Inductance: ± (1% reading + 5 words) Current: ± (1% reading + 2 words)
Dimensions	345mm × 295mm × 175mm
Instrument Weight	7kg

Operating Conditions

Ambient Temperature	-10℃～50℃
Ambient Humidity	≤85% RH
Working Power Supply	AC220V ±10%
Power Frequency	50 ±1 Hz

Key Features & Capabilities

Measure single capacitors in parallel capacitor groups without disconnecting lines, displaying voltage, current, loss, capacity, frequency, and impedance data
Display measured inductance values along with comprehensive electrical parameters including voltage, current, loss, capacity, frequency, and impedance
Support for both △-type and Y-type connection capacitor measurements in addition to standard capacitor groups
320×240 large-screen LCD display with Chinese menu prompts for intuitive operation
Built-in large-capacity non-volatile memory storing up to 256 test data sets per option
USB controller interface for easy data export and report generation
High-precision real-time clock function for accurate date and time calibration
Integrated high-speed micro thermal printer for immediate measurement and historical data printing
Test power supply over-current protection ensures instrument safety during output short circuits

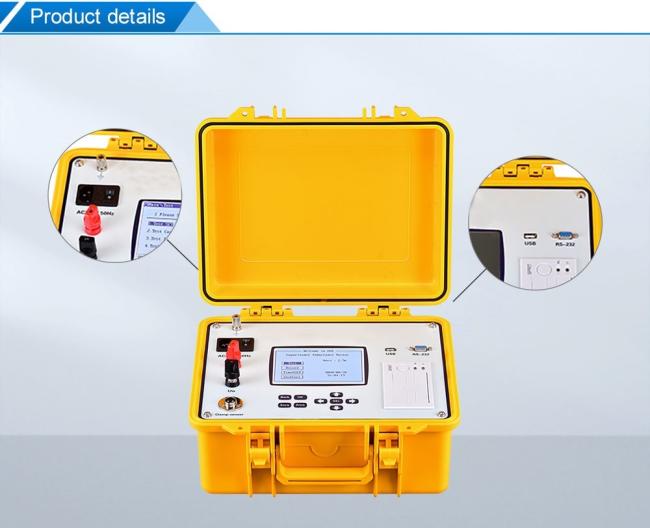

Product Images
