High Accuracy Vacuum Degree Tester 30kV Pulsed Field Non Disassembly For Circuit Breakers
Price:
2200usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Vacuum Switch Vacuum Degree Tester for High Voltage Circuit Breaker
Professional vacuum degree testing instrument for high voltage circuit breakers, manufactured in China with precision engineering for accurate vacuum measurement in various industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Test Object | Various types of vacuum switch tubes |
| Test Method | Non-disassembly measurement of vacuum tubes using a new excitation coil |
| Scope of Application | Multi-purpose instrument for measuring various types of vacuum switches |
| Measuring Range | 10⁻⁵～10⁻¹ Pa |
| Measurement Accuracy | 10⁻⁵～10⁻⁴ Pa: 10% 10⁻⁴～10⁻³ Pa: 10% 10⁻³～10⁻² Pa: 10% 10⁻²～10⁻¹ Pa: 10% |
| Magnetic Field Voltage | 1700V |
| Pulsed Electric Field High Voltage | 30kV |
| Switch Tube Opening Distance | Normal use of open distance |
| Use Environment | -20℃~40℃ |
| Host Weight | 24kg |
| Dimensions | 410×320×370mm³ |
| Sampler | Magnetron coil |
Features & Characteristics
- Quantitative measurement of vacuum degree for various model vacuum switch arc extinguishing chambers
- No disassembly required during on-site measurement
- Accurate and reliable test results
- Simple and convenient operation
- Save, print, and view test data functionality
- Widely used in power, steel, petrochemical, textile, coal, railway and other industrial sectors
- Lightweight and portable design for easy transportation

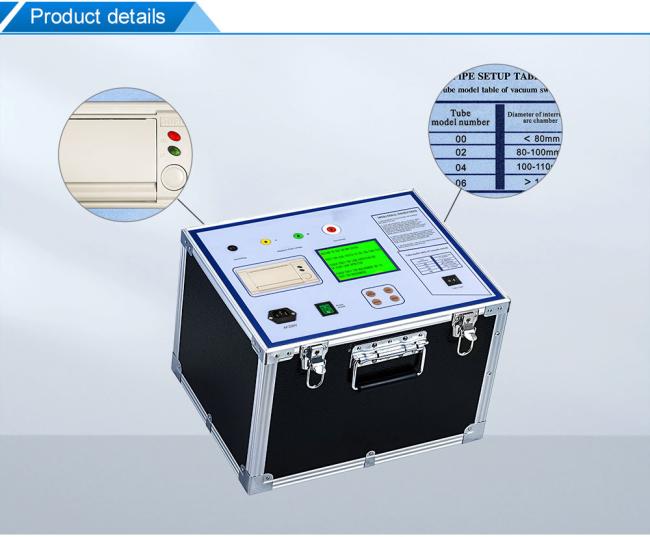

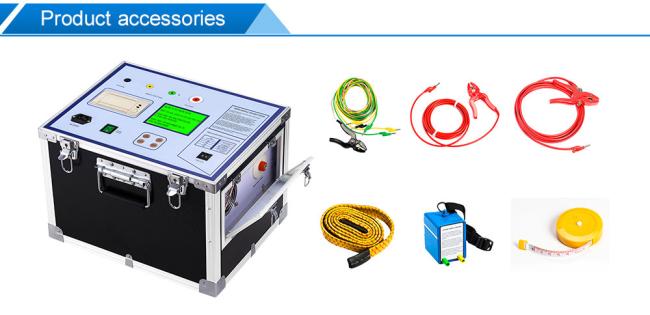

Product Images
