Professional DC Hipot Tester designed for DC high voltage test equipment applications, backed by a comprehensive 2-year warranty.

Work Method: Interval working, less than 30 minutes under rated load

Overload Capacity: No-load voltage can exceed 10% of rated voltage for 10 minutes. Maximum charging current is 1.25 times the rated current.

Power Supply: AC220V ±10% 50HZ

Temperature: -10°C to 40°C

Relative Humidity: No more than 85% when room temperature is 25°C (no condensation)

Altitude: Below 1500m

• Stable Output Current: High-frequency voltage doubler circuit with PWM pulse width modulation and voltage/current double closed-loop feedback technology for high voltage stability and minimal ripple. Full-scale smooth voltage regulation with 0.1kV voltage resolution and 1μA current resolution.
• Comprehensive Protection: Complete protection functions including zero-position, over-voltage, over-current, and breakdown protection. Nanosecond-level sensors ensure rapid, reliable operation for personnel and equipment safety.
• 75U Function: Smart high-precision 0.75U function button automatically sets voltage and current to 0.75U state, ideal for zinc oxide arrester testing.
• Zero-Start Boost: Imported multi-turn potentiometer ensures stable boost process with high adjustment accuracy.
• Overvoltage Setting: Digital dial switch for easy operation and high setting accuracy.

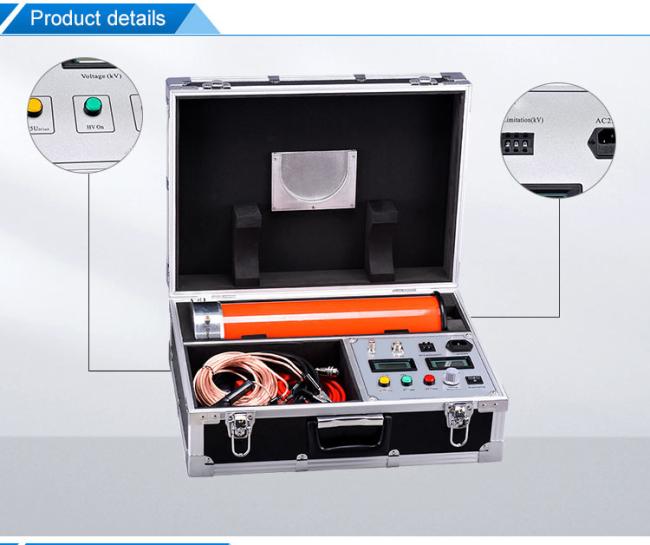

• Integrated Design: Compact design with host and pressure doubler in one chassis. Imported high-frequency high-voltage rectifier diodes improve efficiency and portability.
• Reliable Performance: High-performance imported components with special insulating coatings for excellent electrical performance, moisture resistance, and leak prevention.
• Simple Operation: Well-arranged interface with clear instructions for easy learning and use.
