Portable Digital Grounding Resistance Tester with 0~200Ω Range and 2 Years Warranty
Price:
250usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Portable Digital Grounding Resistance Tester
Professional Earth Resistance Measurement Meter
This portable digital grounding resistance tester provides accurate earth resistance measurement for electrical testing applications. The unit comes with a 2-year warranty and features electronic power source operation.
Technical Specifications
Operating Conditions
| Parameter | Specification |
|---|---|
| Environment Temperature | 0℃～+45℃ |
| Relative Humidity | ≤85%RH |
Measurement Range & Constant Current (RMS)
| Measurement Type | Range |
|---|---|
| Resistance | 0～2Ω (10mA), 2～20Ω (10mA), 20～200Ω (1mA) |
| Voltage | AC 0～19.99V |
Measurement Accuracy & Resolution
| Parameter | Specification |
|---|---|
| Precision | 0～0.2Ω ≤ ±3% ±1d 0.2Ω～199.9Ω ≤ ±1.5% ±1d 1～19.99V ≤ ±3% ±1d |
| Resolution | 0.001Ω, 0.01Ω, 0.1Ω, 0.01V |
Measurement Error Specifications
| Parameter | Specification |
|---|---|
| Allowable Auxiliary Grounding Resistance | RC (Between C1 and C2): 0～2Ω, 2～20Ω ≤ 1kΩ 20～200Ω ≤ 2kΩ RP (Between P1 and P2) < 40kΩ, error ≤ ±5% |
| Allowable Ground Voltage (Power Frequency RMS) | ≤5V, error ≤ ±5% |
Power Specifications
| Parameter | Specification |
|---|---|
| Maximum Power Loss | ≤2W |
| DC Power | 8 × 1.5V (AA, R6) Battery |
| AC Power | 220V/50Hz |

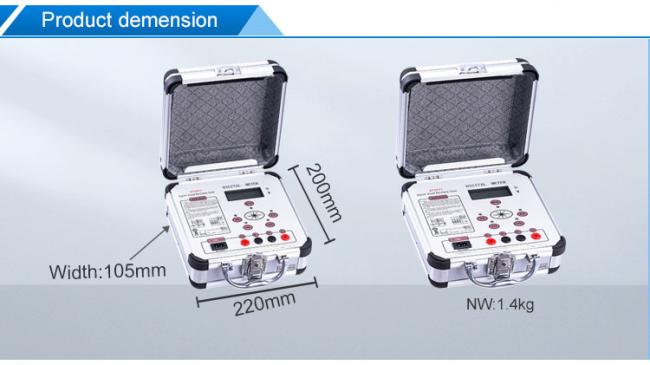

Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 220 × 200 × 105 mm³ |
| Weight | ≤1.4kg |

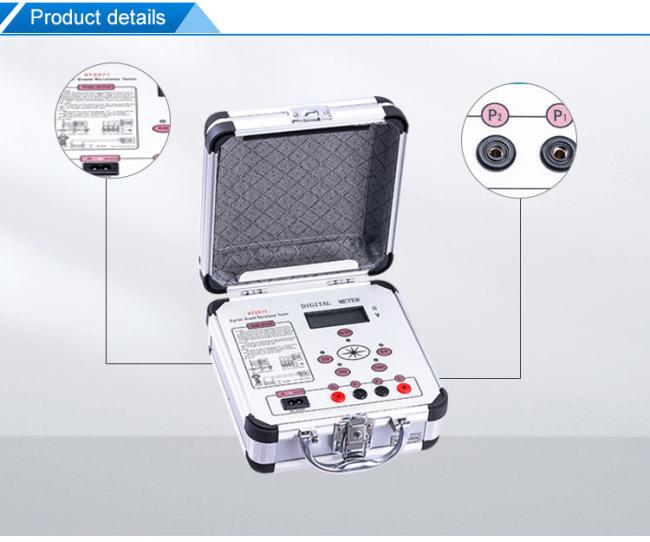

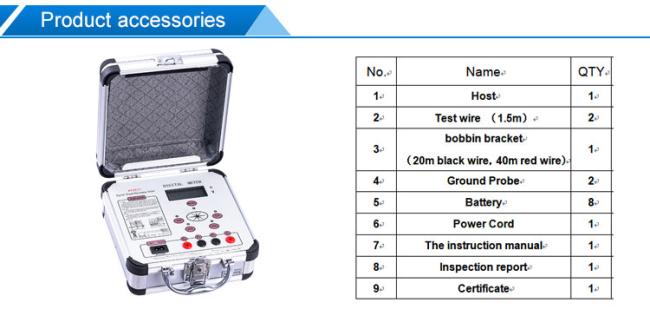

Product Images
