This circuit breaker analyzer is suitable for mechanical characteristic testing of SF6 switches, GIS combinations, vacuum switches, and oil switches produced domestically and internationally.

• Applicable to all types of SF6 switches, GIS switchgear, vacuum switches, and oil switches with metal contacts manufactured domestically and internationally

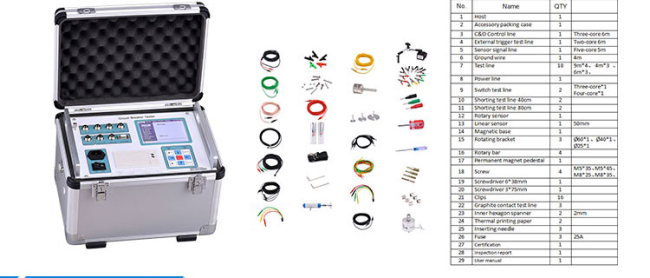

• Universal speed sensor, linear travel sensor, and rotation sensor for convenient and simple installation

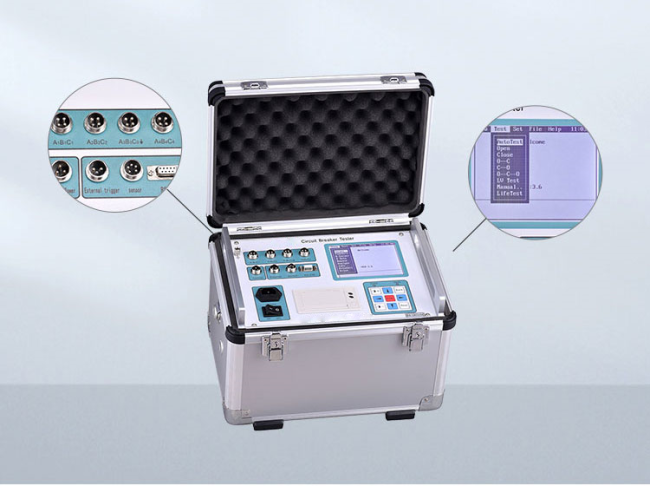

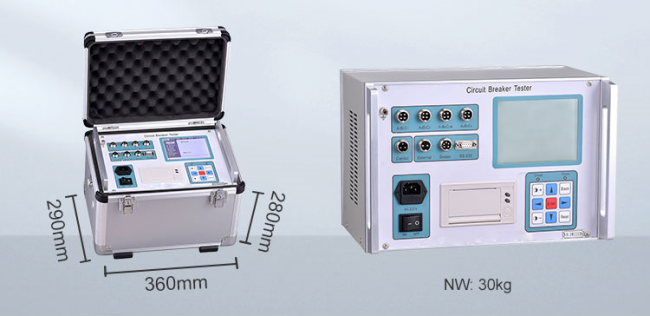

• Large LCD screen with direct transmissive type, background light, and electronically adjusted contrast
• English menu prompts for operation; displays all data and oscillograms after single on-off action
• Stores multiple sets of switch off and switch on test results with real-time clock for date and time recording
• Built-in high-speed micro-printer for printing all data and illustrations
• Includes Windows DB-8001/8001(II) Circuit Breaker Data Analysis Management Software for PC connectivity
• Strong data analysis function for effective analysis of circuit breaker mechanical characteristic parameters
• User-defined additional speed program for adding various instantaneous opening and closing speeds

• Input power supply: 220V±10% 50Hz±10%
• Atmospheric pressure: 86~106kPa
• Temperature: -10~40℃
• Humidity: ≤80%RH

• Dielectric strength: Power on power frequency 1.5KV pressure for 1 minute, without any arc over

• Time measurement range: 4000.0ms
• Time resolution: 0.1ms
• Error: Within 100ms: 0.1ms±1 digit; Above 100ms: 0.1%±1 digit; Synchronization: ±0.1ms
• Speed measurement range: 20.00m/s
• Speed resolution: 0.01m/s
• Error: Within 0-2m/s: ±0.1m/s±1 digit; Above 2m/s: ±0.2m/s±1 digit
