Portable Oil BDV Tester Oil Breakdown Voltage Tester Dielectric Strength Tester
Price:
1800usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Portable Oil BDV Tester - Transformer Oil Dielectric Strength Tester
Product Overview
The Portable Oil BDV Tester is a specialized instrument for measuring the breakdown voltage of transformer oil and other insulating fluids. Designed for both indoor and outdoor use, this tester provides reliable dielectric strength testing with advanced features and robust construction.
Key Features
- Large-capacity single-chip microcomputer control for stable and reliable operation
- Wide-range watchdog circuit eliminates system freezing
- Multiple operation options including GB1986 and GB2002 national standard methods, plus custom operations
- One-time cast special glass oil cup prevents oil leakage and interference
- Unique high-voltage end sampling design for direct A/D conversion and accurate measurements
- Comprehensive protection functions including over-current, over-voltage, and short-circuit protection
- Strong anti-interference capability and excellent electromagnetic compatibility
- Portable structure for easy movement and convenient indoor/outdoor use
Technical Specifications
| Parameter | Specification |
|---|---|
| Booster Capacity | 1.5 kVA |
| Booster Speed | 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s (four selectable gears) |
| Output Voltage | 0~80 kV |
| Power Supply Distortion Rate | <1% |
| Accuracy | ±1.5% |
| Display Mode | Large screen LCD English display |
| Electrode Gap | Standard 2.5 mm |
| Overall Dimensions | 409 mm × 393 mm × 388 mm |
| Instrument Weight | 29 kg |

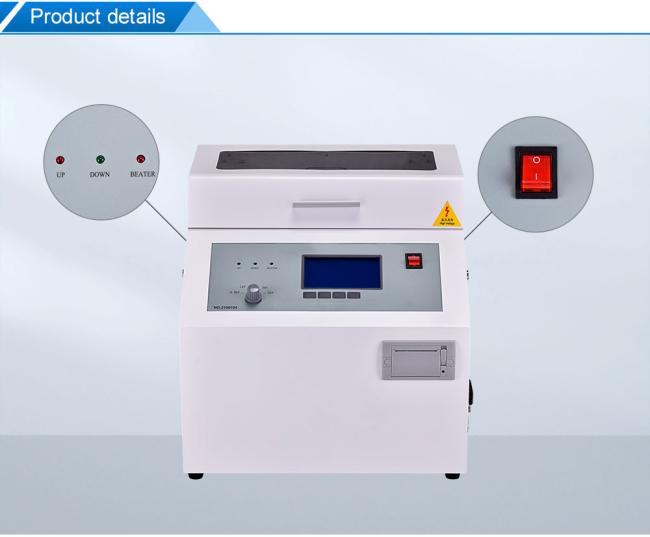

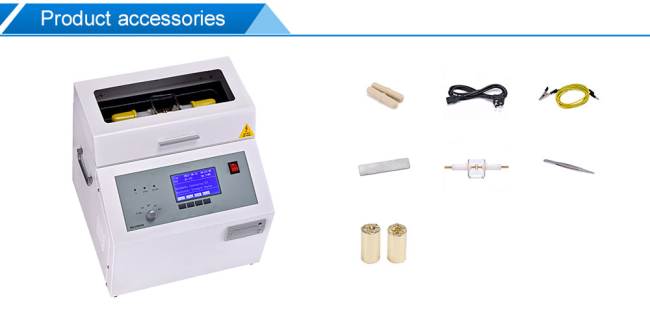

Product Images
