Electricians Portable Insulation Resistance Meter Hight Voltage For Transformer
Price:
1400usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Electricians Portable Insulation Resistance Meter
High Voltage Insulation Resistance Tester for Transformer applications, designed for professional electricians and industrial use.
Technical Specifications
| Measurement Range | Resistance Measurement Range | Accuracy |
|---|---|---|
| 20MΩ | 0.01～19.99MΩ | ±(5%＋3d) |
| 200MΩ | 5.0～199.9MΩ | ±(5%＋3d) |
| 2GΩ | 0.05～1.999GΩ | ±(5%＋3d) |
| 20GΩ | 0.5～19.99GΩ | ±(5%＋3d) |
| 200GΩ | 5.0～199.9GΩ | ±(10%＋3d) |
| 2000GΩ | 50～1999GΩ | ±(20%＋10d) |
Key Features
- Strong anti-electric field interference ability up to 2mA (50Hz), suitable for 500kV substations without dismantling wires to test insulation resistance of 500kV large-scale transformers
- Short-circuit current of 10mA, suitable for testing high capacity and high inductance applications
- Wide resistance range: 0.01MΩ ~ 1999GΩ with high resolution for accurate readings
- Wide output voltage range: 0.5kV, 1kV, 2.5kV, 5kV, 10kV, 20kV adjustable with smooth voltage adjustment from 0V to desired value
- Timekeeping function to remind users to record and analyze absorptance and polarization index of measured targets
- High quality construction with imported components for accuracy and reliability
- Easy to use: one-piece chassis, small size, light weight, and portable design
- Durable construction: rugged and strong grinding material with excellent overall texture and extended lifespan
Product Images
Field testing setup with clamp transformers

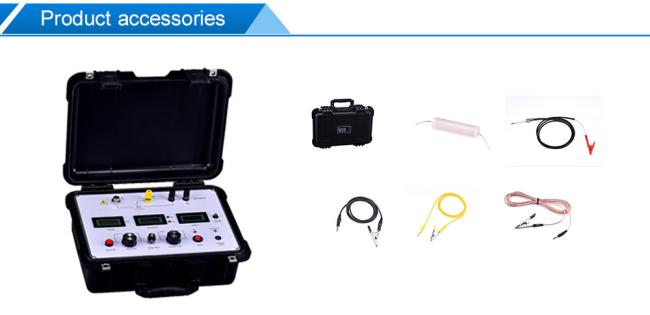

Measurement setup and configuration

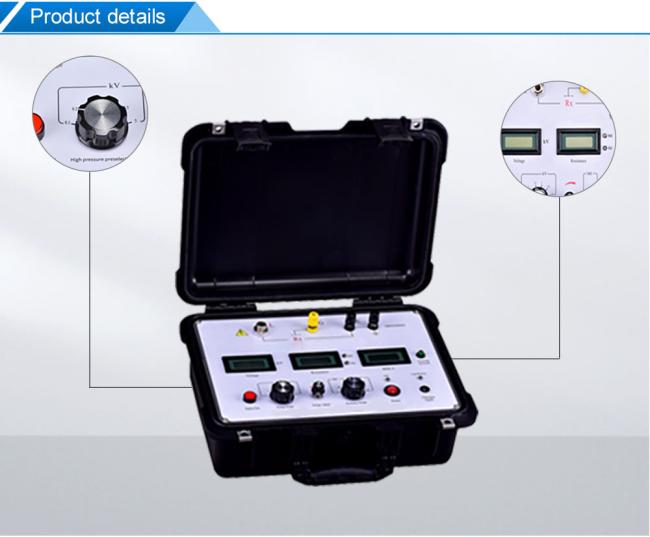

Detailed control panel and connections
