Large Screen Battery Handheld Micro Ohmmeter for Transformer Winding Resistance Testing
Price:
2200usd
MOQ:
1
Delivery Time:
1 week
Brand:
MINGYANG
Product Description
Handheld DC Resistance Tester MYFT Portable Touch Screen Transformer Winding DC Resistance Test Equipment with Data Storage Function for Power Substation Maintenance
This high-accuracy, battery-powered DC micro-ohmmeter is designed for measuring DC resistance in small and medium-sized transformers, generators, motors, and mutual inductors. Featuring multiple current gears to accommodate various measurement requirements, the instrument comes standard with lithium batteries for convenient field operation.
Product description
Transformer DC resistance is a must-test item for semi-finished products and finished products in transformer manufacturing, factory testing, installation, overhaul, after changing the tap changer, handover test and preventive test of the power department. In order to meet the need for rapid measurement of transformer DC resistance, our company has developed the MYFT handheld DC resistance tester. This instrument adopts new power supply technology and has the characteristics of small size, light weight, large output current, good repeatability, strong anti-interference ability, and complete protection functions. The whole machine is controlled by a high-speed microcontroller, has a high degree of automation, and has automatic discharge and discharge alarm functions. The instrument has high testing accuracy and is easy to operate, and can quickly measure the direct resistance of the transformer.
Key Features
- High-resolution 65K true color seven-inch touch screen with Chinese/English interface switching
- Clear display visibility even under strong lighting conditions
- Powered by internal battery or power adapter for outdoor operation
- Copper and aluminum temperature conversion function for resistance value comparison
- Digital battery management with remaining power display and alarm system
- Non-power-off data storage with perpetual calendar (stores 1000 test data sets)
- USB interface and printer expansion interface with optional external micro printer
- Comprehensive protection features including discharge sound alarm and voltage reverse connection protection
- 10A measurement capability for large-capacity distribution transformer testing
- Optional Bluetooth module for Android device connectivity and smart management
- Direct load switching during measurement with automatic data refresh
Technical Specifications
| Test Current | Measuring Range | Accuracy |
|---|---|---|
| <20mA | 100Ω-50KΩ | ±(0.2%+2) |
| 40mA | 1Ω-200Ω | |
| 200mA | 100mΩ-50Ω | |
| 1A | 10mΩ-10Ω | |
| 3A | 5mΩ-3Ω | |
| 10A | 0.5mΩ-0.2Ω |
| Minimum Resolution | 0.1μΩ |
| Operation Method | Touch screen operation |
| Dimensions | Host: 252*160*65(mm) | Outer box: 425*335*210(mm) |
| Weight | Host: 2KG | Outer box: 8KG |
| Battery Specifications | 14.8V 5200mAh |
| Test Lead Length | Standard 5 meters (custom lengths available) |
Company Profile
Wuhan Mingyang Industrial Technology Co., Ltd. has a professional sales and technical team to deliver premium pre-sales consultation and full technical support.
We maintain an efficient after-sales team to timely resolve all product and technical issues for global customers.

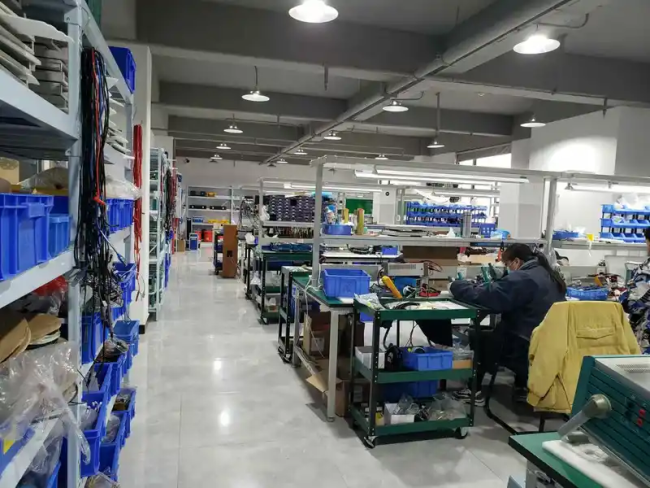

Founded in 2008 and based in Wuhan, China, we are a high-tech enterprise specialized in R&D, production, sales, OEM/ODM customization and after-sales service of power testing and high-voltage inspection equipment.
We keep enhancing independent innovation, upgrading factory facilities and adopting digital management systems. With reliable quality and good reputation, we have built worldwide customer networks and gained global trust. We sincerely look forward to long-term cooperation with you for mutual development.
Pre-sales Consulting Service
We provide comprehensive and professional pre-sales consulting services. Dedicated sales staff and senior technical engineers are arranged to answer customers’ questions regarding products, technologies and cooperation on a one-on-one basis. We deliver complete and detailed product information throughout the whole process to help customers fully understand product parameters, performances and usage details. All products are reasonably priced with high cost performance to ensure customers get value for money. All quotations are officially verified and stamped by the management team with authenticity and compliance guaranteed. Customers are warmly welcomed to visit our factory for field inspection and business negotiation.
Contract Performance Service
A formal sales contract and supporting technical agreement will be signed by both parties upon confirmation of cooperation intention. Adhering to the principle of integrity, we strictly comply with all clauses of signed contracts and technical agreements to ensure smooth and efficient project implementation. We maintain efficient communication throughout the cooperation, actively follow up with customer demands, and record customers’ inquiries and project schedules in detail to provide continuous professional technical docking and support. In all links including delivery, installation, commissioning and operation training, we respond to customer needs promptly and deliver high-quality services with efficiency and professionalism.
Packaging & Delivery Lead Time
We will arrange product delivery within 5-20 working days after receiving the confirmation of customer payment. All products are professionally packed with high-strength sturdy cartons or wooden boxes. The durable packaging effectively prevents collision and damage during transportation, ensuring the safe arrival of all goods at the destination.
We provide comprehensive and professional pre-sales consulting services. Dedicated sales staff and senior technical engineers are arranged to answer customers’ questions regarding products, technologies and cooperation on a one-on-one basis. We deliver complete and detailed product information throughout the whole process to help customers fully understand product parameters, performances and usage details. All products are reasonably priced with high cost performance to ensure customers get value for money. All quotations are officially verified and stamped by the management team with authenticity and compliance guaranteed. Customers are warmly welcomed to visit our factory for field inspection and business negotiation.
Contract Performance Service
A formal sales contract and supporting technical agreement will be signed by both parties upon confirmation of cooperation intention. Adhering to the principle of integrity, we strictly comply with all clauses of signed contracts and technical agreements to ensure smooth and efficient project implementation. We maintain efficient communication throughout the cooperation, actively follow up with customer demands, and record customers’ inquiries and project schedules in detail to provide continuous professional technical docking and support. In all links including delivery, installation, commissioning and operation training, we respond to customer needs promptly and deliver high-quality services with efficiency and professionalism.
Packaging & Delivery Lead Time
We will arrange product delivery within 5-20 working days after receiving the confirmation of customer payment. All products are professionally packed with high-strength sturdy cartons or wooden boxes. The durable packaging effectively prevents collision and damage during transportation, ensuring the safe arrival of all goods at the destination.
Shipping & Transportation Solutions
We offer diversified logistics solutions including express air freight, sea freight and railway transportation. We can recommend the most cost-effective and suitable shipping solution according to customers’ delivery time, budget and destination requirements. If customers appoint their own forwarders, we will fully cooperate and provide a complete set of official customs clearance documents to ensure smooth customs clearance. After shipment, we will continuously track the logistics progress until the goods are successfully and intactly received by customers.
We offer diversified logistics solutions including express air freight, sea freight and railway transportation. We can recommend the most cost-effective and suitable shipping solution according to customers’ delivery time, budget and destination requirements. If customers appoint their own forwarders, we will fully cooperate and provide a complete set of official customs clearance documents to ensure smooth customs clearance. After shipment, we will continuously track the logistics progress until the goods are successfully and intactly received by customers.
Warranty & After-sales Service
We take 100% customer satisfaction as our core service goal. Customers may feedback any product problems at any time, and we will follow up and resolve issues properly in a timely manner. All products are covered by one-year free warranty and lifelong free technical support. We promise to provide exclusive professional solutions within 24 hours upon receipt of customers’ product fault and usage feedback to efficiently solve after-sales problems.
We take 100% customer satisfaction as our core service goal. Customers may feedback any product problems at any time, and we will follow up and resolve issues properly in a timely manner. All products are covered by one-year free warranty and lifelong free technical support. We promise to provide exclusive professional solutions within 24 hours upon receipt of customers’ product fault and usage feedback to efficiently solve after-sales problems.
FAQ
1.Are you factory or trading company?
We are a professional manufacturer based in Wuhan, Hubei Province.
2.What is the MOQ?
Please contact our sales team for detailed MOQ.
3.Production & Delivery Time
Standard products: 3-5 working days delivery.
4.Custom orders: around 20 days, subject to quantity and specifications.
5.Payment Terms:50% T/T deposit in advance, 50% balance before shipment.
6.Can I customize products?
Yes, we support full customization according to your technical requirements.
1.Are you factory or trading company?
We are a professional manufacturer based in Wuhan, Hubei Province.
2.What is the MOQ?
Please contact our sales team for detailed MOQ.
3.Production & Delivery Time
Standard products: 3-5 working days delivery.
4.Custom orders: around 20 days, subject to quantity and specifications.
5.Payment Terms:50% T/T deposit in advance, 50% balance before shipment.
6.Can I customize products?
Yes, we support full customization according to your technical requirements.
