Robust Design And Large Diameter PU Extra Heavy Duty Caster 4-8 Inches For Hard Surfaces Concrete Floor
Application Scenarios
-
Industrial Use: Due to its robust design and large diameter, this wheel is very suitable for industrial environments, such as moving heavy equipment within factory workshops.
Commercial Use: In commercial environments, such as warehouses or retail stores, this wheel can be used to move shelves or other large items.
Home Use: Although not specifically designed for this, it can also find use at home, such as for moving furniture or gardening tools.
Sizes
Common sizes include 4 inches, 5 inches, 6 inches, and 8 inches.
the 8-inch caster is suitable for heavier loads, such as large industrial trolleys or vehicles.
| Product Name | Specification | Wheel Diameter (mm) | Wheel Width (mm) | Installation Height (mm) | Bracket Thickness (mm) | Base Plate Size (mm) | Hole Distance (mm) | Hole Diameter (mm) | Load Capacity (kg) | Wheel Material |
|---|---|---|---|---|---|---|---|---|---|---|

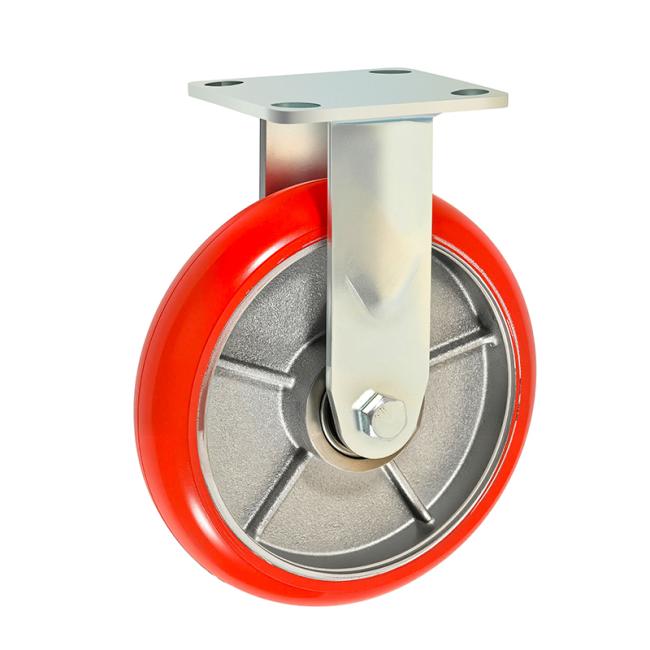

| 4-inch | Fixed Direction | 100-4" | 50 | 150 | 5.5 | 115 * 100 | 82 * 72 | 13 | 350 | PU |
| 4-inch | Omnidirectional | 100-4" | 50 | 150 | 5.5 | 115 * 100 | 82 * 72 | 13 | 350 | PU |

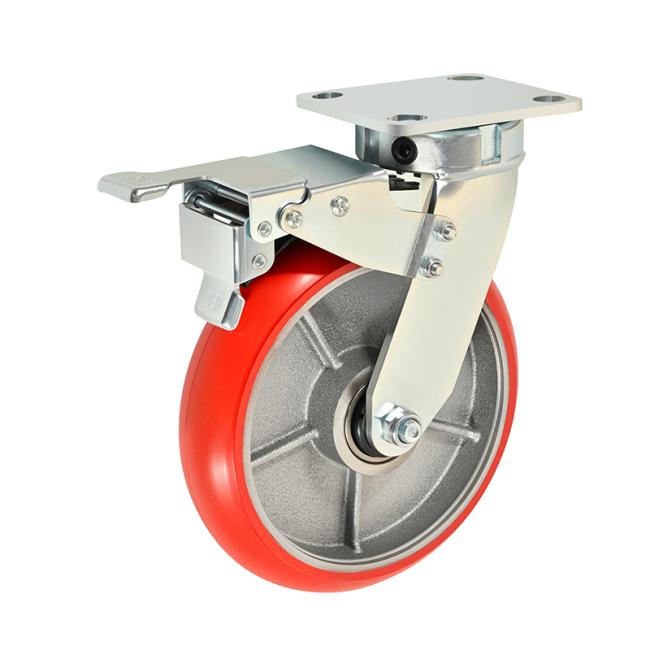

| 4-inch | Brake | 100-4" | 50 | 150 | 5.5 | 115 * 100 | 82 * 72 | 13 | 350 | PU |
| 5-inch | Fixed Direction | 125-5" | 50 | 169 | 5.5 | 115 * 100 | 82 * 72 | 13 | 400 | PU |
| 5-inch | Omnidirectional | 125-5" | 50 | 169 | 5.5 | 115 * 100 | 82 * 72 | 13 | 400 | PU |
| 5-inch | Brake | 125-5" | 50 | 169 | 5.5 | 115 * 100 | 82 * 72 | 13 | 400 | PU |
| 6-inch | Fixed Direction | 150-6" | 50 | 190 | 5.5 | 115 * 100 | 82 * 72 | 13 | 450 | PU |
| 6-inch | Omnidirectional | 150-6" | 50 | 190 | 5.5 | 115 * 100 | 82 * 72 | 13 | 450 | PU |
| 6-inch | Brake | 150-6" | 50 | 190 | 5.5 | 115 * 100 | 82 * 72 | 13 | 450 | PU |
| 8-inch | Fixed Direction | 200-8" | 50 | 240 | 5.5 | 115 * 100 | 82 * 72 | 13 | 500 | PU |
| 8-inch | Omnidirectional | 200-8" | 50 | 240 | 5.5 | 115 * 100 | 82 * 72 | 13 | 500 | PU |
| 8-inch | Brake | 200-8" | 50 | 240 | 5.5 | 115 * 100 | 82 * 72 | 13 | 500 | PU |
- Set 1: 2*brakes + 2* fixed
- Set 2: 2*swivel + 2* fixed
Easy Installation: There is a square mounting plate on top of the wheel with four holes, making it easy to fix onto various equipment and increasing usage flexibility.
- Large Diameter Design: The wheel features a large diameter, which helps reduce pressure on the ground during movement, thereby lowering the risk of wear and allowing it to roll over obstacles more smoothly.
- Small Contact Area: Despite the large diameter, the wheel’s contact area is relatively small. This means it is likely better suited for hard surfaces like concrete or tiles rather than soft ground, as the latter could cause the wheel to sink in.
- Sturdy and Durable: Visually, the wheel appears to be made of robust materials, possibly metal or high-strength plastic, indicating it can withstand heavy loads without easy damage.
- Easy Installation: There is a square mounting plate on top of the wheel with four holes, making it easy to fix onto various equipment and increasing usage flexibility.
