5" Heavy Duty Korean Style Red PP Caster 250kg Fixed Swivel Brake PP Trolley Wheel Logistics Trolleys

5" Heavy Duty Korean Style Red PP Caster 250kg | Fixed Swivel Brake

5 inch heavy duty Korean style red plastic-core PP caster, 125mm, 250kg load. PP-on-PP dual-color, Shore 95-98, 6202 bearing, 115x100 plate. Budget-friendly trolley wheel. LUMA OEM, MOQ 50, free sample.

5" Red Plastic-Core PP Caster — Heavy Duty Korean Style, 250kg

Budget-friendly 5 inch red PP trolley wheel. PP-on-PP dual-color injection, lightweight, rust-free, Shore 95-98. Fixed / Swivel / Brake. LUMA factory, 10+ years, MOQ 50.

--------------------------------------------------

5 Inch Heavy Duty Korean Style Red Plastic-Core PP Caster (125mm, 250kg)
— Budget-Friendly Trolley Wheel, PP-on-PP Dual Color, Fixed / Swivel / Brake

4. PRODUCT OVERVIEW

The 5 Inch (125mm) Heavy Duty Korean Style Red Plastic-Core PP Caster is the mid-range workhorse for buyers who want more capacity without moving up to the 6 inch. Featuring a red PP-on-PP dual-color injection molded wheel (Shore 95-98, D scale) on a plastic core, this caster delivers 250kg per wheel with zero rust risk.

The all-plastic construction is completely rust-free, making it ideal for humid, wet, or corrosive environments. The 50mm flat/plain tread provides stable ground contact, while the 5.5mm galvanized Korean-style bracket ensures long service life.

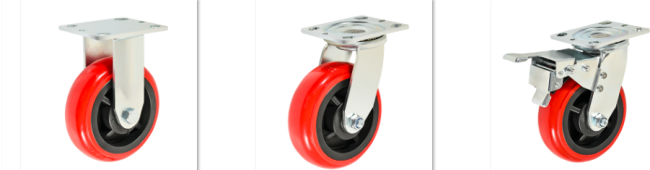

Available in Fixed (Rigid / 定向), Swivel (万向), and Brake (刹车) configurations.

QUICK SPECS:

• Model Series:    B01-R/S/B-1KPP-550
• Wheel Diameter:  5" / 125 mm
• Tread Width:     50 mm (Flat / Plain Tread)
• Load Capacity:   250 kg per caster
• 4-Wheel Cart:    1000 kg (with 1.3x safety factor)
• Bearing:         6202 Ball Bearing
• Installation H:  165 mm
• Top Plate:       115 x 100 mm
• Hole Spacing:    82 x 72 mm
• Hole Diameter:   O13 mm
• Bracket:         5.5 mm (Base & Fork), Galvanized
• Material:        Red PP-on-PP Dual Color (Plastic Core)
• Hardness:        Shore 95-98 (D scale)
• Options:         Fixed / Swivel / Brake
• MOQ:             50 pcs
• Free Sample:     Yes (freight collect)

5. TECHNICAL SPECIFICATION (from factory table)

--------------------------------------------------

--------------------------------------------------

6. FEATURES OF THE RED PLASTIC-CORE WHEEL

--------------------------------------------------

1. RED PP-ON-PP DUAL-COLOR INJECTION
The wheel uses PP-on-PP dual-color injection molding — a red PP tread layer over a black PP core. This gives a premium two-tone look while keeping the wheel 100% plastic, lightweight, and rust-free.

2. SHORE 95-98 (D SCALE) — HARD & DURABLE
PP hardness of Shore 95-98 on the D scale means the wheel resists deformation under heavy static loads. It will not go flat like rubber, and it outlasts soft TPR in high-abrasion environments.

3. LIGHTWEIGHT — EASIER TO PUSH
No iron core means significantly less wheel weight. A lighter wheel = lower rolling resistance = easier to push, especially for female operators and elderly users.

4. RUST-FREE — FOR HUMID & WET AREAS
All-plastic wheel will never rust. Safe for outdoor use, wash-down areas, food processing, and marine/offshore environments where iron-core wheels would corrode.

5. BUDGET-FRIENDLY — CHEAP & PRACTICAL
PP is the most cost-effective caster wheel material. You get 250kg capacity at a fraction of the cost of PU or nylon. Perfect for price-sensitive projects and large volume orders.

6. NON-MARKING & CHEMICAL RESISTANT
PP tread will not leave black marks on epoxy or concrete floors. Resists most acids, alkalis, oils, and cleaning chemicals.

--------------------------------------------------

7. WHERE THIS 5" HEAVY-DUTY KOREAN-STYLE WHEEL FITS

--------------------------------------------------

The 5 inch size is the most popular mid-range option. Its 250kg capacity and 165mm installation height make it the go-to choice for medium-duty industrial equipment.

BEST FOR:

• Flow racks and WIP stations
• Packing and sorting stations
• Medium warehouse dollies
• Assembly line equipment bases
• Maintenance platforms
• Logistics trolleys

NOT FOR:

• CNC router tables (needs spring suspension)
• Scissor lifts (needs spring suspension)
• Uneven outdoor terrain (no shock absorption)

--------------------------------------------------

8. FEATURES & ADVANTAGES OF PP-ON-PP

--------------------------------------------------

• COST-EFFECTIVE: Lowest price per caster among all wheel materials
• LIGHTWEIGHT: No iron core = easy to push, reduces operator fatigue
• RUST-FREE: All-plastic, never corrodes — ideal for wet/humid environments
• HARD & WEAR-RESISTANT: Shore 95-98, outlasts TPR and rubber
• NON-MARKING: Will not blacken epoxy or concrete floors
• CHEMICAL RESISTANT: Withstands oils, acids, alkalis, cleaning agents
• STABLE HEIGHT: No spring = equipment stays at a fixed working height
• 3-IN-1 OPTIONS: Fixed / Swivel / Brake from one model series

--------------------------------------------------

9. APPLICATION SCENARIOS — DETAILED BY INDUSTRY

--------------------------------------------------

A. METALWORKING & MACHINERY
Work-in-progress trolleys, parts bins, fixture carts, tool trolleys.
Keyword: metalworking WIP trolley caster, fixture cart wheel

B. WAREHOUSING & LOGISTICS
Flow racks, picking carts, order-picking trolleys, medium warehouse dollies.
Keyword: warehouse flow rack caster, logistics picking cart wheel

C. WOODWORKING & FURNITURE
Assembly line carts, panel dollies, lumber carts.
Keyword: woodworking assembly cart caster, panel dolly wheel

D. AUTOMOTIVE & GARAGE
Parts trolleys, tool carts, tire dollies.
Keyword: auto repair parts trolley caster, garage tool cart wheel

E. RETAIL & COMMERCIAL
Rolling racks, POS fixtures, shelving units.
Keyword: retail rolling rack caster, commercial shelf wheel

F. LABORATORY & MEDICAL
Lab utility carts, instrument trolleys, specimen transport.
Keyword: laboratory utility cart caster, medical trolley wheel

G. FOOD & BEVERAGE
Food-grade trolleys (with food-grade PP option), prep carts.
Keyword: food grade trolley caster, prep cart wheel

--------------------------------------------------

10. CUSTOM ORDERS & FACTORY STRENGTH

--------------------------------------------------

We are a professional industrial caster manufacturer with more than 10 years of factory experience. We welcome OEM / ODM orders and can customize any combination of wheel and bracket to your requirements — including different materials, hardness, colors, and bracket thicknesses.

Just send us your drawing, sample, or requirement and we will engineer the right caster for your application.

FACTORY STRENGTHS:

• 10+ years caster manufacturing experience
• OEM / ODM welcome
• MOQ: 50 pcs
• Free sample available (freight collect)
• Express Order (EO) service for urgent projects
• Serving clients in 30+ countries
• Reference brands: LUMA / BMB / TENTE / COLSON / DARCOR

11. FULL CUSTOMIZATION — YOUR SPECIFICATION, OUR WHEEL

WHEEL MATERIAL:

PP (red / black / any RAL)  |  TPR (grey)  |  Rubber (black)  |  PU (red/blue/black)  |  Nylon (white)  |  Cast Iron  |  Phenolic

WHEEL HARDNESS:

PP / Nylon: Shore 95-98 (D scale)
TPR / Rubber / PU: Shore A 70-100

WHEEL COLOR:

Any RAL color (red + black dual-color standard)

CORE / CENTRE:

Plastic core (standard)  |  Aluminium core  |  Iron core  |  No core

BRACKET:

Galvanized (standard)  |  Stainless 304  |  Stainless 316  |  Painted
Thickness: 4.0 / 5.5 / 6.0 / 8.0 mm (to your drawing)

BRACKET THICKNESS & TOP PLATE SIZE:

To your drawing (standard A05 bracket is 5.5 mm; we can go thicker for higher loads)

MOUNTING TYPE:

Top plate (115x100, 82x72, O13 standard)  |  Threaded stem  |  Bolt hole  |  Expanding adapter  |  Central hole

BRAKE TYPE:

No brake  |  Side lock  |  Total lock  |  Direction lock

BEARING:

Plain  |  Roller  |  6202  |  6203  |  6204  |  6205  |  6305

LOAD RATING:

From 100 kg up to 1,000 kg+ per caster

SPECIAL FEATURES:

Anti-static (ESD)  |  High-temperature  |  Food-grade  |  Explosion-proof  |  Dual-wheel  |  Spring suspension

MOQ: 50 pcs
LEAD TIME: 15-25 days (standard) / EO express service available
SAMPLE: 1 pc free (freight collect)

--------------------------------------------------

12. SEO KEYWORDS & HASHTAGS

--------------------------------------------------

PRIMARY KEYWORDS:

• budget-friendly trolley wheel PP caster
• heavy duty PP caster 250kg
• red plastic core PP caster
• Korean style PP caster
• PP-on-PP dual color caster
• 5 inch PP fixed caster 125mm
• cheap practical caster wheel
• lightweight rust-free caster

SIZE-SPECIFIC:

• 5 inch red PP caster 250kg
• 125mm Korean style PP fixed caster
• 5" PP-on-PP dual color caster
• 5" budget trolley wheel PP

B2B / RFQ PHRASES:

• PP caster manufacturer China
• OEM PP caster factory Zhongshan
• cheap caster wheel MOQ 50
• budget-friendly trolley wheel supplier
• PP vs TPR caster industrial
• free sample caster freight collect

LONG-TAIL:

• red PP-on-PP dual color injection molded caster 5 inch
• lightweight rust-free plastic core PP caster 250kg
• budget-friendly heavy duty PP trolley wheel 125mm
• Korean style red PP caster 6202 bearing 115x100 plate
• 5 inch PP fixed swivel brake caster OEM

TOPIC CLUSTER (internal linking):

• /heavy-duty-pp-caster-series (series page)
• /4-inch-pp-caster-200kg
• /6-inch-pp-caster-300kg
• /8-inch-pp-caster-350kg
• /pp-vs-tpr-vs-rubber-vs-nylon-caster-guide
• /caster-mounting-plate-size-guide

HASHTAGS:

#BudgetFriendlyCaster #PPTrolleyWheel #RedPPCaster #KoreanStyleCaster #PPonPPDualColor #LightweightRustFree #CheapPracticalCaster #HeavyDutyPP #FixedSwivelBrake #6202Bearing #115x100Plate #LUMACaster #OEMCaster #ZhongshanFactory #MOQ50 #FreeSample

--------------------------------------------------

13. FAQ

--------------------------------------------------

Q1: What is a 5 inch red plastic-core PP caster?
A1: It is a 125mm caster wheel made of polypropylene (PP) with a plastic core, using PP-on-PP dual-color injection molding (red tread + black core). Shore 95-98, lightweight, rust-free, 250kg capacity.

Q2: Is the 5 inch PP caster suitable for a flow rack?
A2: Yes. With 250kg capacity, it is ideal for flow racks, WIP stations, and packing stations in warehouses and factories.

Q3: Fixed vs Swivel vs Brake — which should I choose?
A3: Fixed (定向) for straight-line stability. Swivel (万向) for 360-degree turning. Brake (刹车) locks the wheel in place. Many buyers use 2 fixed + 2 swivel/brake.

Q4: Will the PP wheel mark my epoxy floor?
A4: No. PP is non-marking and will not leave black scuff marks on epoxy or concrete.

Q5: Can I get a custom color or hardness?
A5: Yes. We offer any RAL color and can adjust Shore hardness. MOQ 50 pcs, free sample (freight collect), EO express service available.

--------------------------------------------------

14. GET A QUOTE

--------------------------------------------------

Contact us today for a quote, free sample, or engineering consultation. As a professional industrial caster manufacturer with over 10 years of factory experience, we are ready to help you select the right size and configuration for your application.

======================================================================
