Heavy-duty Red Plastic Core Pp Caster 6 Inch Lightweight Rust-free Pp Trolley Whee Cnc Router Carts And Machining Centers
The 6 Inch (150mm) Heavy Duty Korean Style Red Plastic-Core PP Caster is the heavy-duty champion of the PP series. Featuring a red PP-on-PP dual-color injection molded wheel (Shore 95-98, D scale) on a plastic core, this caster delivers 300kg per wheel with zero rust risk.
The all-plastic construction is completely rust-free, making it ideal for humid, wet, or corrosive environments. The 50mm flat/plain tread provides stable ground contact, while the 5.5mm galvanized Korean-style bracket ensures long service life.

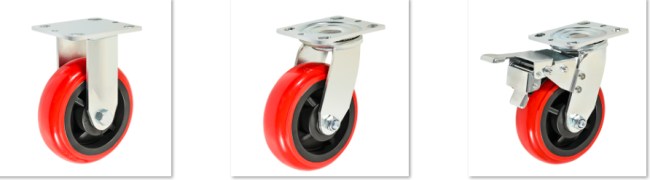

Available in Fixed (Rigid , Swivel, and Brake configurations.
| Model Series | B01-R/S/B-1KPP-650 |
|---|---|
| Wheel Diameter | 6" / 150 mm |
| Tread Width | 50 mm (Flat / Plain Tread) |
| Load Capacity | 300 kg per caster |
| 4-Wheel Cart Capacity | 1200 kg (with 1.3x safety factor) |
| Bearing | 6202 Ball Bearing |
| Installation Height | 190 mm |
| Top Plate | 115 x 100 mm |
| Hole Spacing | 82 x 72 mm |
| Hole Diameter | Ø13 mm |
| Bracket | 5.5 mm (Base & Fork), Galvanized |
| Material | Red PP-on-PP Dual Color (Plastic Core) |
| Hardness | Shore 95-98 (D scale) |
| Options | Fixed / Swivel / Brake |
| MOQ | 50 pcs |
| Free Sample | Yes (freight collect) |
| Model | B01-R/S/B-1KPP-650 |
|---|---|
| Wheel Diameter | 6 inch / 150 mm |
| Tread Width | 50 mm |
| Wheel Material | Red PP-on-PP (plastic core), Shore 95-98 |
| Wheel Color | Red (wheel) + Black (core) — dual color |
| Load Capacity | 300 kg / caster |
| Bearing | 6202 Ball Bearing |
| Installation Height | 190 mm |
| Top Plate | 115 x 100 mm |
| Hole Spacing | 82 x 72 mm |
| Hole Diameter | Ø13 mm |
| Base Plate Thickness | 5.5 mm |
| Bracket Thickness | 5.5 mm |
| Bracket Finish | Galvanized |
| Types | Fixed / Swivel / Brake |
| MOQ | 50 pcs |

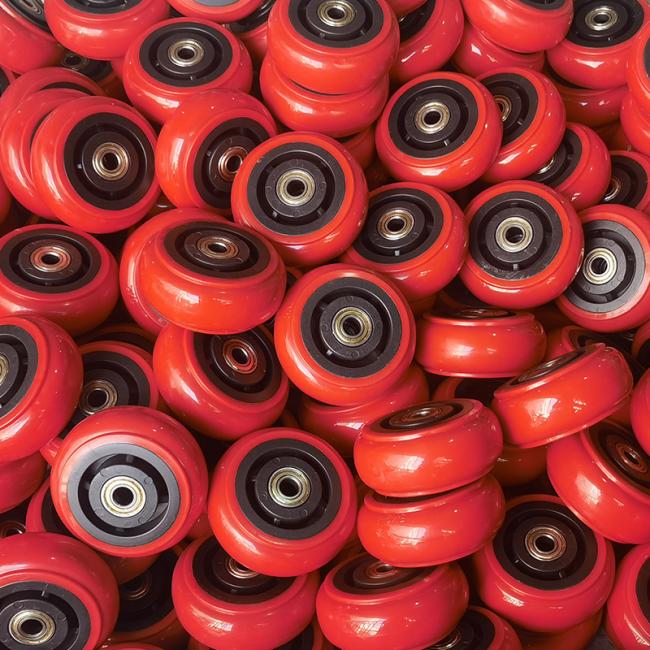

- Red PP-on-PP Dual-Color Injection: The wheel uses PP-on-PP dual-color injection molding — a red PP tread layer over a black PP core. This gives a premium two-tone look while keeping the wheel 100% plastic, lightweight, and rust-free.
- Shore 95-98 (D Scale) — Hard & Durable: PP hardness of Shore 95-98 on the D scale means the wheel resists deformation under heavy static loads. It will not go flat like rubber, and it outlasts soft TPR in high-abrasion environments.
- Lightweight — Easier to Push: No iron core means significantly less wheel weight. A lighter wheel means lower rolling resistance and easier pushing, especially for female operators and elderly users.
- Rust-Free — For Humid & Wet Areas: The all-plastic wheel will never rust. Safe for outdoor use, wash-down areas, food processing, and marine/offshore environments where iron-core wheels would corrode.
- Budget-Friendly — Cheap & Practical: PP is the most cost-effective caster wheel material. You get 300kg capacity at a fraction of the cost of PU or nylon. Perfect for price-sensitive projects and large volume orders.
- Non-Marking & Chemical Resistant: PP tread will not leave black marks on epoxy or concrete floors. Resists most acids, alkalis, oils, and cleaning chemicals.
The 6 inch size is the heavyweight of the PP series. Its 300kg capacity and 190mm installation height make it the first choice for heavy industrial equipment on flat factory floors.
- Mold trolleys and die carts
- CNC router carts and machining centers
- Heavy warehouse dollies
- Staging fixtures and moving platforms
- Heavy industrial workbenches
- Bulk material handling carts
- CNC router tables (needs spring suspension)
- Scissor lifts (needs spring suspension)
- Uneven outdoor terrain (no shock absorption)
- Cost-Effective: Lowest price per caster among all wheel materials
- Lightweight: No iron core means easy pushing and reduced operator fatigue
- Rust-Free: All-plastic, never corrodes — ideal for wet/humid environments
- Hard & Wear-Resistant: Shore 95-98, outlasts TPR and rubber
- Non-Marking: Will not blacken epoxy or concrete floors
- Chemical Resistant: Withstands oils, acids, alkalis, and cleaning agents
- Stable Height: No spring means equipment stays at a fixed working height
- 3-in-1 Options: Fixed / Swivel / Brake from one model series
Mold trolleys, die carts, machining center carts, heavy fixture carts. Keywords: mold trolley caster, die cart wheel, CNC router cart caster.
Heavy warehouse dollies, bulk material transporters, pallet dollies. Keywords: heavy warehouse dolly caster, bulk material transporter wheel.
CNC router carts, panel saw dollies, heavy lumber carts. Keywords: CNC router cart caster, woodworking heavy cart wheel.
Heavy parts trolleys, engine dollies, tire racks. Keywords: engine dolly caster, auto heavy parts trolley wheel.
Heavy rolling racks, industrial shelving units. Keywords: heavy rolling rack caster, industrial shelf wheel.
Heavy lab utility carts, specimen transport. Keywords: heavy laboratory cart caster.
Heavy food-grade trolleys (with food-grade PP option), bulk prep carts. Keywords: heavy food grade trolley caster.
We are a professional industrial caster manufacturer with more than 10 years of factory experience. We welcome OEM / ODM orders and can customize any combination of wheel and bracket to your requirements — including different materials, hardness, colors, and bracket thicknesses.
Just send us your drawing, sample, or requirement and we will engineer the right caster for your application.
- 10+ years caster manufacturing experience
- OEM / ODM welcome
- MOQ: 50 pcs
- Free sample available (freight collect)
- Express Order (EO) service for urgent projects
- Serving clients in 30+ countries
- Reference brands: LUMA / BMB / TENTE / COLSON / DARCOR
| Wheel Material | PP (red / black / any RAL) | TPR (grey) | Rubber (black) | PU (red/blue/black) | Nylon (white) | Cast Iron | Phenolic |
|---|---|
| Wheel Hardness | PP / Nylon: Shore 95-98 (D scale); TPR / Rubber / PU: Shore A 70-100 |
| Wheel Color | Any RAL color (red + black dual-color standard) |
| Core / Centre | Plastic core (standard) | Aluminium core | Iron core | No core |
| Bracket | Galvanized (standard) | Stainless 304 | Stainless 316 | Painted. Thickness: 4.0 / 5.5 / 6.0 / 8.0 mm (to your drawing) |
| Bracket Thickness & Top Plate Size | To your drawing (standard A05 bracket is 5.5 mm; we can go thicker for higher loads) |
| Mounting Type | Top plate (115x100, 82x72, Ø13 standard) | Threaded stem | Bolt hole | Expanding adapter | Central hole |
| Brake Type | No brake | Side lock | Total lock | Direction lock |
| Bearing | Plain | Roller | 6202 | 6203 | 6204 | 6205 | 6305 |
| Load Rating | From 100 kg up to 1,000 kg+ per caster |
| Special Features | Anti-static (ESD) | High-temperature | Food-grade | Explosion-proof | Dual-wheel | Spring suspension |
| MOQ | 50 pcs |
| Lead Time | 15-25 days (standard) / EO express service available |
| Sample | 1 pc free (freight collect) |
It is a 150mm caster wheel made of polypropylene (PP) with a plastic core, using PP-on-PP dual-color injection molding (red tread + black core). Shore 95-98, lightweight, rust-free, 300kg capacity.
Yes. With 300kg capacity, it is ideal for mold trolleys, die carts, and CNC router carts on flat factory floors.
Fixed (定向) for straight-line stability. Swivel (万向) for 360-degree turning. Brake (刹车) locks the wheel in place. Many buyers use 2 fixed + 2 swivel/brake.
No. PP is non-marking and will not leave black scuff marks on epoxy or concrete.
Yes. We offer any RAL color and can adjust Shore hardness. MOQ 50 pcs, free sample (freight collect), EO express service available.
Contact us today for a quote, free sample, or engineering consultation. As a professional industrial caster manufacturer with over 10 years of factory experience, we are ready to help you select the right size and configuration for your application.
