Hygienic Industrial High Speed Door With High-Speed Operation For Food Processing
Hygienic Industrial High Speed Door With High-Speed Operation And Excellent Sealing Performance For Food Processing
Product Specifications
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control |
Key Features for Food Industry Applications
Hygienic Door Structure
- Smooth PVC or stainless steel surface, easy to clean
- No exposed screws to reduce dirt accumulation
- Resistant to moisture, grease, and food residues
High-Speed Operation
- Opening speed up to 2.0 m/s
- Reduces waiting time for workers and forklifts
- Maintains stable internal environment
Excellent Sealing Performance
- Bottom airbag or soft bottom edge
- Side guide brush sealing
- Effectively blocks insects and dust
Advantages for Food Manufacturers
- Improves hygiene management and cleanliness control
- Reduces temperature loss between processing areas
- Enhances internal logistics efficiency
- Low maintenance cost for long-term operation
Typical Applications
- Food processing workshops
- Beverage production lines
- Meat, dairy, and frozen food factories
- Packaging and clean preparation areas
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Features
- Opening Methods: Standard configuration features manual push-button activation; optional methods include remote control, radar, magnetic loop sensors, pull-cord switches, and access control systems.
- Safety Protection System: Equipped with infrared sensors and a comprehensive safety protection system.
Why Choose Us?
Changzhou YOHO Industrial Door Co., Ltd. is a professional manufacturer of Industrial High Speed Doors and related loading dock equipment. With years of production and export experience, we provide reliable industrial fast door solutions for warehouses, logistics centers, manufacturing plants, food factories, and cold storage facilities worldwide.
Certified Quality
Our factory is certified with ISO 9001 and our products comply with CE standards, ensuring every Industrial High Speed Door meets international requirements for safety, durability, and performance.
Advanced Manufacturing

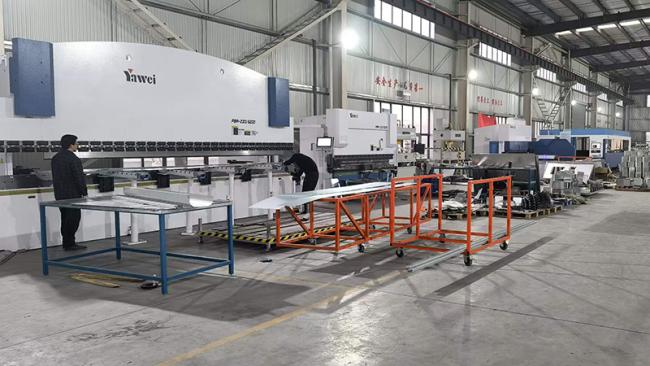

Equipped with modern production lines, CNC processing equipment, and professional testing systems, we ensure precise manufacturing and strict quality control for every industrial fast door.
 |
 |
Custom OEM & ODM Service
We offer customized sizes, colors, control systems, and branding solutions to meet different project specifications and distributor requirements.
Contact Us Today
Looking for a reliable supplier of Industrial High Speed Door and industrial fast door solutions?
Contact us today to receive:
- Competitive factory prices
- Customized design support
- Technical drawings and specifications
- OEM/ODM manufacturing service
- Fast worldwide delivery
Our team is ready to help you find the ideal high speed door solution for your project.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
