Reliable & Durable 0.75KW-1.5KW PVC High Speed Door For Industrial Use
Wind Resistance Insulated High-Speed Door Reliable & Durable For Industrial Use

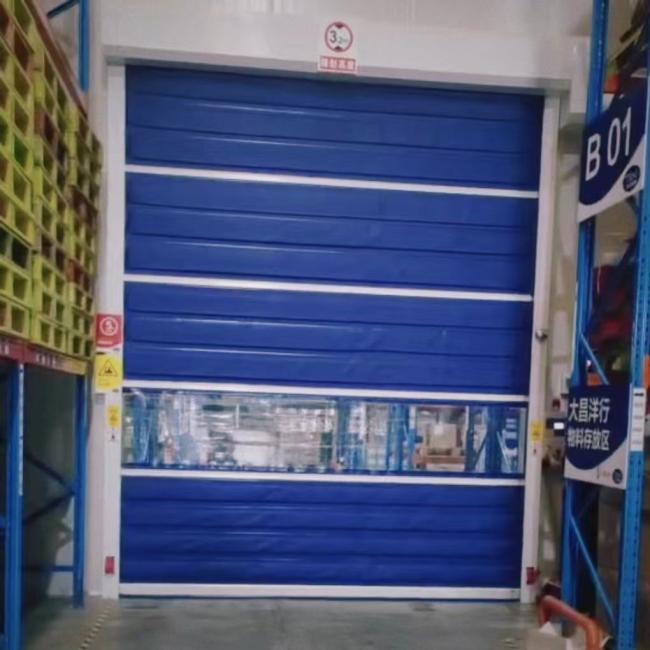

The Insulated High-Speed Door for logistics warehouse internal passageways is designed to provide thermal separation, fast traffic flow, and energy efficiency inside large-scale logistics and distribution centers.
In modern warehouses, internal passageways connect temperature-sensitive storage zones, picking areas, sorting lines, and packing stations. Frequent forklift and personnel movement can cause heat loss and airflow disturbance. This insulated high-speed door combines fast opening speed with thermal insulation performance, helping warehouses maintain stable indoor conditions while ensuring smooth logistics operations.
Product Parameters
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Maximum Door Size | Width: 1000–6000 mm; Height: 1500–6000 mm |
| Operating Speed | Opening: 0.8-2.0 m/s (adjustable); Closing: 0.5-0.8 m/s (adjustable) |
| Curtain Thickness & Color | 0.8/1.2/1.5/2.0 mm thick PVC curtain; available in Blue, Orange, Gray |
| Motor Power | 0.75–1.5 kW (depends on door size and speed) |
| Temperature Range | PVC: -10°C to 60°C; Steel/Stainless Steel: -10°C to 60°C |
| Sealing Performance | High-quality brush seals on tracks; bottom EPDM seal for superior sealing |
| Wind Resistance | Up to Class 6 (reinforceable to Class 8) |
| Manual Operation | Can be manually opened with a wrench during power failure or malfunction |
| Power Requirements | 220V / 13A, Single-phase, 50–60Hz; IP54 control box; complies with electrical safety standards |
| Protection & Insulation | IP54 rating for water and dust protection; suitable for harsh environments |
| Control & Switching Options | Standard: one-button switch with emergency stop; Optional: Radar sensor, Ground magnetic sensor, Pull-rope switch, Remote control |
Product Advantages
- Maintains stable indoor temperature in logistics warehouse interiors
- Reduces energy loss caused by frequent internal door operation
- Improves efficiency of forklift and personnel movement
- Enhances separation between different functional warehouse areas
- Durable construction suitable for continuous high-cycle operation
Applications
- Internal passageways between logistics warehouse zones
- Connections between storage, sorting, and packing areas
- Forklift and trolley traffic corridors
- E-commerce fulfillment and distribution centers
- Ambient-temperature warehouse facilities and controlled indoor areas
Control & Safety Configuration
- Opening Speed: Up to 0.8-2.0 m/s
- Control System: Industrial servo control system with fault self-diagnosis
- Safety Protection:
- Infrared safety photocells
- Bottom soft safety edge
- Emergency stop function
- Activation Options: Push button, radar sensor, ground loop, pull rope, remote control
- Emergency Operation: Manual opening during power failure
FAQ
What is an insulated high-speed door used for in warehouses?
It is used to separate internal areas while maintaining thermal insulation and allowing fast logistics traffic.
Can this door be used in cold storage rooms?
No. This insulated high-speed door is designed for normal-temperature or insulated rooms, not for cold storage or sub-zero environments.
Is it suitable for high-frequency forklift traffic?
Yes. The door is designed for high-cycle operation in busy warehouse environments.
Can the door be customized?
Yes. Door size, frame material, curtain thickness, and control methods can be customized.
|
|
|
