Custom Size High Speed Automatic Modern Outdoor PVC Folding Screen Stacking Door For Finished Goods Warehouses
Custom Size High Speed Automatic Modern Outdoor PVC Folding Screen Stacking Door For Finished Goods Warehouses
The High Speed Stacking Door is a Durable High Speed Door specifically designed for finished goods warehouses where fast dispatch, order fulfillment, and inventory turnover are critical. This Stacking High Speed Door enables rapid access while maintaining structural stability for large warehouse openings.
Product Specifications
| Parameter | Description |
| Special Door Type | High Speed Stacking Door |
| Opening Method | Electric Side Opening |
| Maximum Dimensions | Door width: 1000mm–12000mm, Door height: 1500mm–12000mm |
| Operating Speed | Opening speed: 0.6–1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray |
| Frame Material | Standard track frame: Galvanized steel with powder coating Optional upgrade: Stainless steel |
| Project Solution Capability | 3D model design |
| Surface Finishing | Finished |
| Sealing Performance | High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure |
| Wind Resistance | Up to Class 6 wind, can be reinforced to Class 8 |
| Manual Operation | In case of power failure or malfunction, the door can be manually opened using a standard wrench |
| Power Supply Requirements | Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards |
| Insulation Protection | IP54, waterproof and dustproof for harsh environments |
| Opening/Closing Control | Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control |
| Pre-reserved Ports | Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible |
| Control System (Servo System) | Uses dedicated servo system with DSP chip core System sets door opening height based on incremental encoder signals from the motor and limit switch signals LED display shows fault codes Direction protection: controller reports error if motor wiring is reversed; door remains stationary Torque loop, position loop, and speed loop fully closed Motor can stop at exact position without using an electromagnetic brake |
Key Features
-
Large opening industrial door for warehouse exits
-
Fast opening reduces outbound waiting time
-
Designed for frequent daily operation
-
Stable stacking structure for long-term use
Advantages for Finished Goods Storage
-
Improves outbound logistics efficiency
-
Reduces air exchange and dust intrusion
-
Enhances warehouse traffic safety
-
Supports high-frequency industrial usage
Typical Applications
-
Finished product warehouses
-
E-commerce fulfillment centers
-
Export packaging zones
-
Dispatch loading areas
Feature Highlight: Fast Opening Speed
As a fast opening industrial door, it reduces waiting time during peak shipping periods.

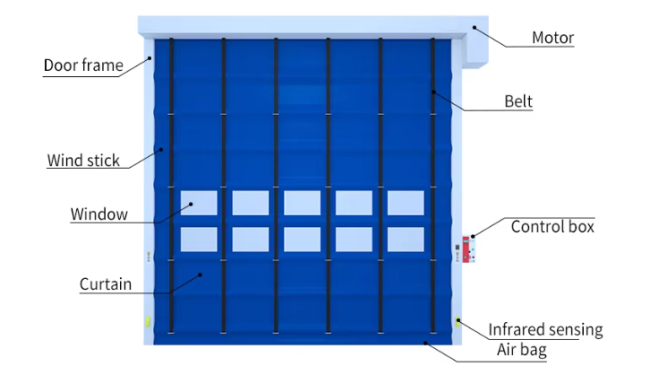

The component of product
Options of Door Opening ways
our door's opening way has the push buttom,motion sensor,induction loop,remote control,pull swith,infrared light curtain and so on.
FAQ
Q1: Is this suitable for warehouse entrances?
Yes, it is an Industrial Door for Warehouse Entrance.
Q2: Can it operate all day?
Yes, it supports high-cycle warehouse operations.
Q3: Is it customizable?
Yes, size and control options can be customized.
Q4: Does it improve loading speed?
Yes, fast opening significantly reduces waiting time.
|
|
|
