Durable High Speed Freezer Door 1.5-3.8KW Rapid Opening / Closing
Freezer Fast Rapid High Speed Door Manufacturer Pvc+painted Steel Automatic 2 Years Between The Refrigerated And Frozen Sections

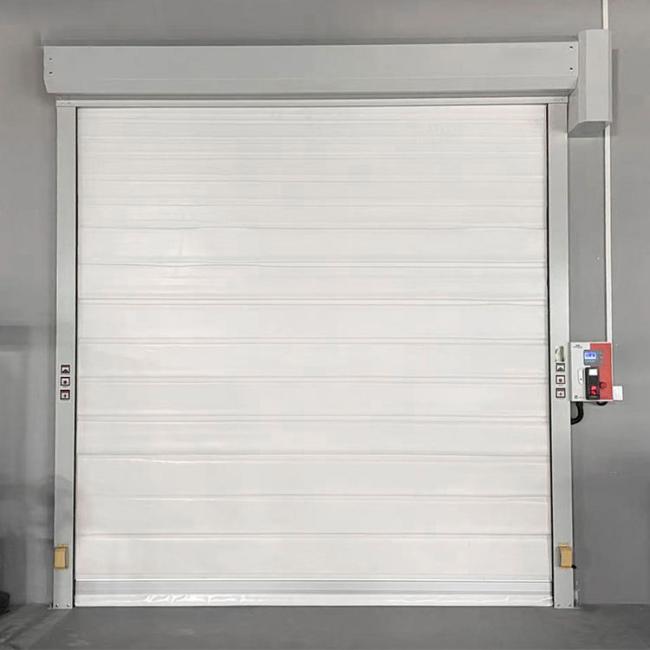

The Cold Room Freezer Door is specially designed for internal separation between 0°C cold storage areas and -18°C freezer zones, ensuring stable temperature control and efficient workflow.
Installed in internal partitions of cold storage facilities, this door allows frequent access while maintaining thermal separation between temperature zones, preventing energy loss and preserving product quality.
The temperature zone separation door combines fast operation, reliable sealing, and durable construction to ensure smooth internal logistics while protecting temperature-sensitive goods across different cold storage zones.
Product Specifications
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–4000 mm Door height: 1500–4000 mm |
| Dual-Side Track Heating System | Heating wires are installed inside both side tracks to ensure continuous and stable operation of the door curtain in low-temperature environments. |
| Operating Speed | Opening speed: 0.6–1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | The door curtain features a 3+2 composite structure, with thickened insulated curtains on both inner and outer layers and an aluminum foil insulation core. Total curtain thickness: 18–23 mm. |
| Frame Material | Tracks made of aluminum alloy, thickness 2.0 mm Enclosure frame made of 304 stainless steel |
| Sealing Performance | The tracks adopt a nylon + PVC wind-resistant curtain system, combined with an airtight bottom sealing structure, ensuring excellent sealing performance. |
| Wind Resistance | Maximum wind resistance Grade 6, upgradable to Grade 8. |
| Manual Operation | In the event of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz IP54-rated control box, compliant with national electrical safety standards. |
| Insulation Protection | IP54 protection ensures dustproof and waterproof performance even in harsh environments. |
Key Features of Cold Room to Freezer Transition Door
-
Rapid Opening & Closing
Minimizes temperature exchange during high-frequency internal transfers. -
Thermal Separation
Maintains distinct temperatures between cold room (0°C) and freezer (-18°C) zones. -
Durable Construction
Suitable for continuous internal use in demanding cold storage environments. -
High-Quality Sealing
Prevents cold air loss, frost formation, and condensation. -
Flexible Activation Options
Compatible with radar sensors, pull cords, ground loops, and remote controls.
Advantages for Cold Room to Freezer Applications
-
Stable Temperature Management
Protects products by maintaining strict temperature differentiation between zones. -
Energy Efficiency
Reduces refrigeration load and energy loss between zones. -
Improved Internal Logistics
Supports smooth movement of personnel and forklifts between cold and freezer areas. -
Reliable & Safe Operation
Includes safety sensors and emergency manual opening. -
Durable for High-Frequency Use
Built for continuous daily internal access.
Typical Applications
-

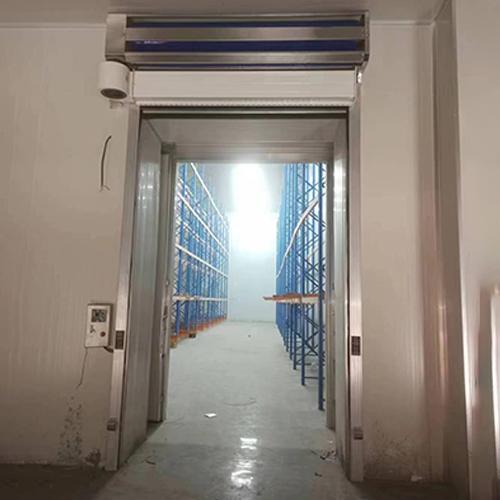

Internal partition between cold storage and freezer zones
-
0°C cold rooms to -18°C freezer areas
-
Internal temperature-controlled warehouse divisions
-
Cold storage facilities with multi-zone layouts
Detailed Feature: Thermal Separation for Energy Saving
The cold to freezer door ensures effective thermal separation between temperature zones.
By combining rapid door cycles with airtight sealing, this door prevents warm air from entering the freezer zone or cold air from escaping, preserving consistent temperatures.
This thermal separation reduces energy consumption, prevents frost buildup, and maintains optimal storage conditions for perishable goods.
Installation Instructions
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm
b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor:
When measuring H and B, take the maximum value as the final dimension
When measuring h b1 b2, take the smallest value as the final size
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
FAQ
Q1: Can this door maintain distinct temperatures between zones?
Yes, it is designed for effective thermal separation between 0°C and -18°C areas.
Q2: How does it save energy?
High-speed operation and tight sealing minimize cold air loss and reduce refrigeration load.
Q3: Is it suitable for high-frequency internal use?
Yes, it supports continuous movement of personnel and forklifts.
Q4: Is emergency manual operation available?
Yes, manual opening is included for power outages or emergencies.
|
|
|
