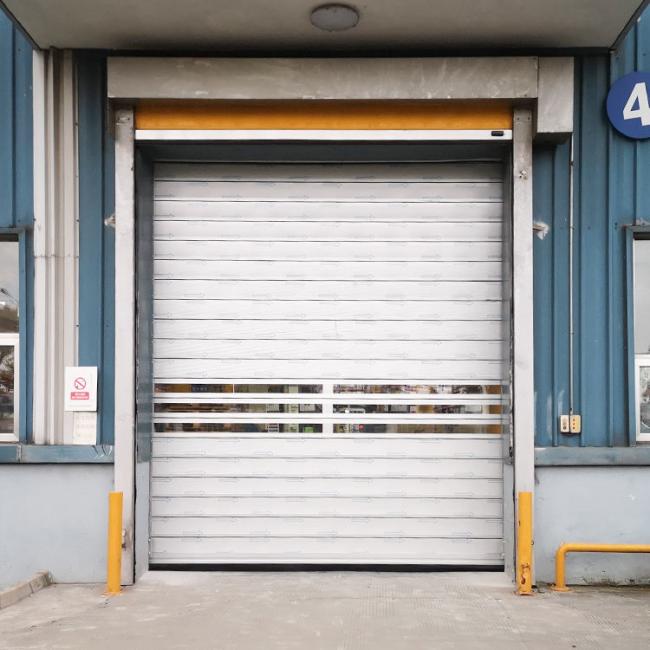

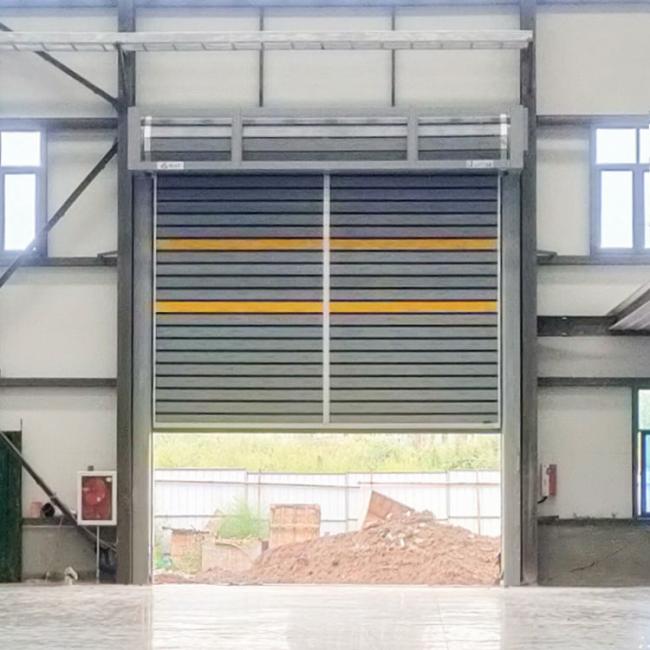

Rigid Aluminum Spiral High Speed Door 0.75KW-1.5KW For Beverage Workshops
Full Clear Aluminum CE Certificate Rigid Spiral High Speed Door For Beverage Production Workshops
Product Overview
Beverage production workshops operate with high-speed filling lines, continuous material flow, and strict hygiene control. From raw material handling to bottling and packaging, doors in beverage plants must open quickly, operate reliably, and support clean production environments.
The Spiral High Speed Door is an ideal solution for beverage manufacturing facilities, providing fast opening speed, rigid aluminum construction, and a non-contact spiral track system. It helps beverage producers maintain smooth workflow, reduce cross-contamination risks, and improve operational efficiency.
Also known as Turbo High Speed Door, Rigid Spiral High Speed Door, or Spiral Lift High Speed Door, this door is widely used in modern beverage factories.
Product Specifications
| Parameter | Description |
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
Advantages of Spiral High Speed Doors in Beverage Workshops
-
Improves production line efficiency
-
Supports hygiene zoning management
-
Reduces air exchange and dust movement
-
Long service life with low maintenance
-
Suitable for large and high openings
This makes it a preferred high speed door for beverage factories.
Detailed Feature Focus: Spiral Track Structure
The spiral lift track design allows door panels to rise independently without contact.
For beverage production environments, this offers:
-
Reduced mechanical wear
-
Cleaner operation with less debris
-
Stable performance during high-frequency use
Compared with fabric roll-up doors, spiral doors provide superior structural integrity and reliability.
Installation Options & Space Requirements
Spiral High Speed Doors can be installed at:
-
Internal production area entrances
-
Packaging workshop access points
-
Logistics corridors inside beverage plants
They require moderate headroom and minimal side space, fitting well into existing beverage factory layouts.
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.
Comparison with Other High Speed Door Types
Spiral High Speed Door vs PVC Roll-Up Door
PVC doors open fast but lack rigidity and durability for heavy beverage plant traffic.
Spiral High Speed Door vs Sectional Door
Sectional doors operate slowly and are not designed for high-cycle production environments.
Spiral High Speed Door vs Metal Roller Shutter
Traditional roller shutters are noisier and require more maintenance.
FAQs
Is a Spiral High Speed Door suitable for beverage production workshops?
Yes, it is ideal for filling, packaging, and internal logistics areas in beverage plants.
Can the door support high-frequency daily operation?
Yes, it is designed for high-cycle industrial use.
Is the door easy to clean?
Yes, the aluminum panels feature smooth, clean-friendly surfaces.
Do you offer OEM and export solutions?
Yes, we are a professional Spiral High Speed Door manufacturer and supplier.
Get a Quote for Spiral High Speed Door
Looking for a Spiral High Speed Door for beverage production workshops?
Contact a trusted Spiral High Speed Door supplier to receive technical drawings and a customized quotation.
|
|
|
