0.2-0.4m/s Speed Overhead Sectional Lifting Door Industrial Door With Dock Seal For Express Delivery Hubs
Industrial Sectional Overhead Door for Express Delivery Hubs
An Industrial Sectional Overhead Door, also called an Industrial Lift-up Door or Warehouse Lift-up Door, is a vital solution for express delivery hubs. Designed for high-speed, high-frequency operations, this automatic industrial door supports rapid parcel flow, fast truck turnaround, and safe, reliable access in busy courier and logistics hubs.
Why Express Delivery Hubs Need Sectional Overhead Doors
Express delivery hubs operate with continuous inbound and outbound shipments, requiring doors that are fast, durable, and energy-efficient. The industrial sectional door opens vertically along reinforced tracks, leaving dock areas clear for simultaneous operations of trucks, forklifts, and conveyor systems.
Key Advantages
-
High-Speed Operation – Enables rapid truck loading/unloading and parcel movement.
-
Space-Saving Vertical Lifting – Keeps dock areas free for multiple vehicles.
-
Heavy-Duty Design – Built for thousands of daily cycles in high-traffic hubs.
Features of Our Industrial Sectional Overhead Door
Durable Panel Construction
Panels are made of steel or aluminum, forming a heavy duty industrial door capable of withstanding high-frequency daily use.
Reinforced Track & Spring System
Industrial-grade tracks and torsion springs ensure smooth operation and long-term reliability for warehouse lift-up doors in busy hubs.
Insulated Panels for Climate & Energy Efficiency
Insulated sectional doors maintain optimal indoor temperature, energy efficiency, and noise reduction in large sorting areas.
Advanced Safety Systems
Includes spring break protection, anti-fall devices, and optional sensors to ensure personnel and cargo safety.
Product Specifications
|
Item |
Description |
|
Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
|
Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
|
Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
|
Thickness of Panel |
40mm / 50mm |
|
Width of Panel |
430mm / 550mm |
|
Density of Sandwiches |
48kg/m3 |
|
Surface Treatment |
Power coating,thickness of coating:30um |
|
Heat Preservation |
4.5W/m.h |
|
Wind Resistance |
Beaufort scale 11, 28m/s |
|
Noise Level: |
≤60db |
|
Sound Insulation Level |
24 Db |
|
Fire Retardation: |
Class A |
|
Speed |
0.2-0.4m / s |
|
Max Dimension |
12m * 8m |
|
Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
|
Steel cord |
Flexible ,3.8mm |
|
Power Supply |
380V 50Hz / 220V 50Hz |
|
Service Life |
10 years |
|
Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
|
Balance System |
a. Balance the weight of door through the torsion spring |
|
Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
|
Optional Item |
Window,pedestrian door |
Installation method

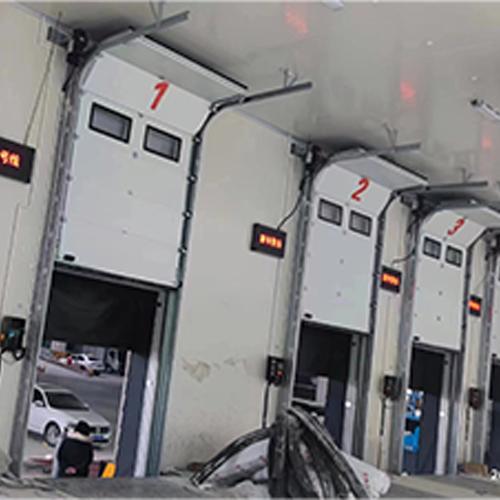

Application Scenarios in Express Delivery Hubs
-
Inbound & Outbound Loading – Fast parcel transfer between trucks and sorting lines.
-
High-Volume Sorting Zones – Supports forklifts and conveyor systems efficiently.
-
Multi-Dock Operations – Accommodates multiple simultaneous vehicle movements.
-
Temperature-Controlled Storage – Maintains optimal conditions for sensitive packages.
-
Multi-Client Logistics Hubs – Flexible solutions for handling parcels from multiple carriers.
Frequently Asked Questions (FAQ)
Q1: Can these doors handle continuous, high-frequency operations?
Yes, designed for express delivery hubs with rapid truck and parcel turnover.
Q2: Are insulated doors available for climate-sensitive areas?
Yes, insulated panels maintain temperature and reduce energy loss.
Q3: Can doors be customized for different dock layouts?
Yes, door size, panels, and operation mode can be fully customized.
Q4: Are remote control and automation supported?
Yes, doors integrate with automation, push-button, and remote control systems.
Get a Quote
We provide project consultation, OEM solutions, and bulk order options for industrial sectional overhead doors in express delivery hubs.
|
|
|
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
