High Strength Steel Sectional Door Industrial Overhead Door For Automotive Parts Factories
Industrial Sectional Overhead Door for Automotive Parts Factories
Automotive parts factories operate on precision, speed, and strict production schedules. From stamping lines to component assembly and packaging areas, entrances must support continuous material flow without disrupting internal processes. Our Industrial Sectional Overhead Door, also known as an Industrial Lift-up Door, is designed to provide controlled access, stable operation, and long-term durability for automotive parts manufacturing environments.
What Is an Industrial Sectional Overhead Door?
Definition of an Industrial Lift-up Door
An Industrial Lift-up Door is a vertically opening Sectional Overhead Door composed of multiple horizontal panels. When opened, the panels travel along overhead tracks and rest beneath the ceiling, making it an ideal Factory Lift-up Door for space-sensitive automotive facilities.
How Sectional Overhead Doors Function
The door operates through a balanced track and spring system or an electric drive. This structure allows smooth lifting and precise positioning, even for large-format Industrial Sectional Doors used in production plants.
Why Automotive Parts Factories Use Sectional Overhead Doors
Supports High-Precision Production Flow
Automotive parts factories require controlled separation between production stages. A Sectional Overhead Garage Door ensures smooth logistics without disturbing assembly accuracy.
Designed for Repetitive Daily Operations
Frequent opening and closing cycles are common in parts manufacturing. A Heavy Duty Industrial Door is built to maintain consistent performance under continuous use.
Optimized for Forklift and Cart Traffic
Wide, unobstructed openings allow efficient movement of pallets, bins, and components.
Structural Features for Automotive Manufacturing
High-Strength Steel or Aluminum Panels
Available as Steel Sectional Doors or aluminum options, the panels resist impact from carts and forklifts commonly used in parts factories.
Industrial Track System with High Load Capacity
The Industrial Lift-up Door with Tracks ensures stable movement and long service life, even for oversized doors.
Stable Operation in Clean & Semi-Clean Areas
Designed to perform reliably in stamping, machining, and assembly zones.
Panel Types & Insulation Options
Single-Skin Panels for Internal Production Zones
Suitable for areas where insulation is not required.
Insulated Sectional Door for Temperature Control
An Insulated Lift-up Door helps maintain stable conditions in precision assembly or inspection areas.
Energy Efficiency for Factory Buildings
Insulated panels reduce air exchange and support energy-saving operations.
Product Specifications
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 0.2-0.4m / s |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Installation method
Application Areas in Automotive Parts Factories
Component Manufacturing Workshops
Supports material transfer between machining and assembly lines.
Assembly & Sub-Assembly Zones
Provides controlled access between production stages.
Warehouse & Storage Areas
Functions as a reliable Warehouse Lift-up Door inside factory buildings.
Finished Parts Packaging & Dispatch Areas
Facilitates outbound logistics without disrupting production flow.
Maintenance & Equipment Service Bays
Ensures safe access for service vehicles and tools.
Customization for Automotive Industry Projects
Door Size & Opening Configuration
Custom-built solutions for wide or tall factory openings.

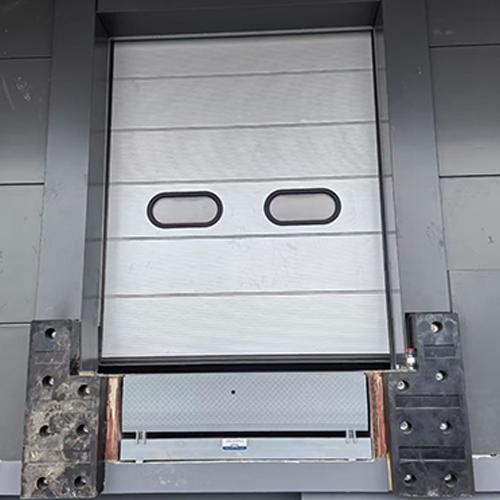

Vision Panels & Inspection Windows
Improve visibility and operational safety.
Surface Finish & Industrial Accessories
Powder coating, corrosion resistance, and optional hardware available.
Frequently Asked Questions (FAQ)
Are sectional overhead doors suitable for automotive parts factories?
Yes, they are widely used due to their stability and space-saving design.
Can these doors handle continuous daily operation?
They are designed for high-frequency industrial use.
What materials are available for door panels?
Steel and aluminum options are available, with insulated or single-skin designs.
Can the door be customized for automotive projects?
Yes, size, control system, insulation, and accessories can all be customized.
