Industrial Sectional Doors 40mm 50mm 80mm Sectional Garage Door For Industrial Parks / Zones

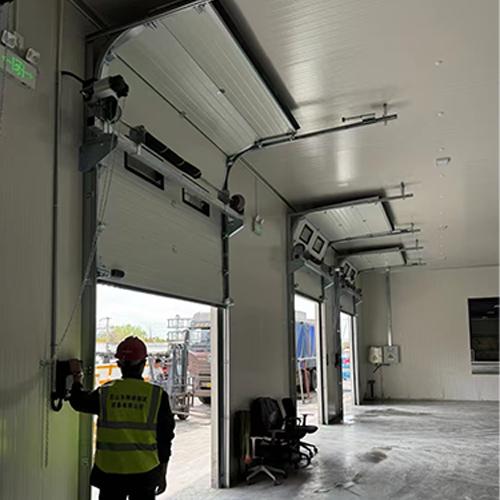

Industrial Sectional Overhead Door for Industrial Parks & Zones
Industrial parks and zones often house multiple manufacturing, warehousing, and logistics operations. Entrances need to accommodate heavy vehicle traffic, large-scale deliveries, and diverse industrial activities. Our Industrial Lift-up Door, also known as a Sectional Overhead Door, is designed to deliver durability, efficient access, and operational safety across large industrial complexes.
Key Features for Industrial Park Applications
Durable Steel or Aluminum Panels
Options include Steel Sectional Doors or lightweight aluminum panels suitable for different industrial applications.
Reinforced Track & Spring Systems
High-quality tracks and torsion springs provide stable lifting for large door panels.
Reliable Performance for Frequent Use
Built to handle dozens of cycles per day, suitable for industrial zones with continuous operation.
Weather Sealing & Energy Efficiency
Effective seals prevent dust, drafts, and temperature fluctuations from affecting indoor operations.
Product Specifications
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.3 - 0.6mm Color-Coated Steel |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm / 80mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 10-15 m / min |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Typical Applications in Industrial Parks & Zones
Warehouses & Distribution Centers
Facilitates smooth loading and unloading of goods.
Manufacturing Facilities
Reliable access for raw materials and finished products.
Logistics & Freight Hubs
Supports high-frequency truck and forklift movement.
Maintenance & Service Buildings
Provides safe and controlled access to workshops and service bays.
Office & Administrative Areas
Optional insulated doors improve energy efficiency and comfort in office sections.
Frequently Asked Questions (FAQ)
Are sectional overhead doors suitable for industrial parks?
Yes, they are ideal for multi-building zones with heavy traffic.
Can these doors withstand repeated truck and forklift operations?
Yes, designed for high-frequency industrial use.
Do they offer insulation for sensitive areas?
Insulated options are available for offices, storage, or climate-sensitive zones.
Can doors be customized for unique industrial layouts?
Yes, size, panel type, insulation, and control systems are fully customizable.
