Industrial Insulated Overhead Sectional Door 24dB For Multi Tenant Industrial Buildings

Price Negotiable
Price: Negotiable
MOQ: IUNIT
Delivery Time: 10~15DAYS
Brand: YOHO
Product Description

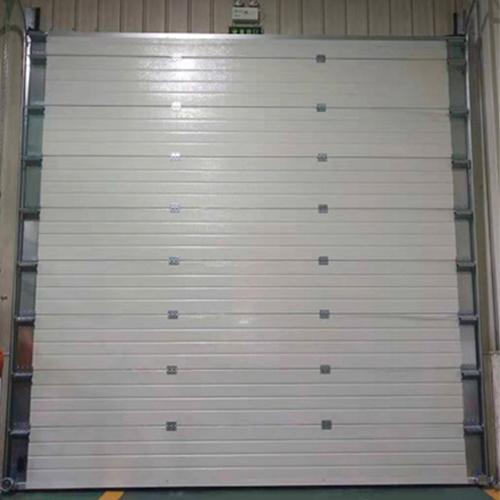

Industrial Sectional Overhead Door for Multi-Tenant Industrial Buildings

Multi-tenant industrial buildings accommodate multiple companies operating within the same facility. These shared environments require doors that offer reliable access control, space efficiency, and durability while adapting to different tenant needs. The Industrial Sectional Overhead Door provides flexible operation and long-term performance for shared industrial spaces.


Door Requirements in Multi-Tenant Industrial Facilities

Shared Access & Independent Operations

Each tenant may have different workflows and schedules. A Sectional Lift-up Door allows independent access without interfering with neighboring units.

Efficient Space Utilization

The vertical opening design preserves interior and exterior space, making it ideal for compact or shared loading and traffic areas.


Why Sectional Overhead Doors Suit Multi-Tenant Buildings

Adaptable for Various Industrial Uses

Suitable for light manufacturing, warehousing, assembly, and logistics tenants within the same building.

Reduced Maintenance for Property Owners

Durable components minimize service frequency, lowering long-term maintenance costs.

Consistent Appearance Across Units

Uniform door design improves overall building aesthetics and management efficiency.


Product Specifications

Item

Description

Material

SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate

Thickness of Panel Mateiral

0.326 / 0.45mm / 0.55mm / 0.6mm

Thickness of Guiding Rail

Gualvanized Steel,thickness: 2mm

Thickness of Panel

40mm / 50mm

Width of Panel

430mm / 550mm

Density of Sandwiches

48kg/m3

Surface Treatment

Power coating,thickness of coating:30um

Heat Preservation

4.5W/m.h

Wind Resistance

Beaufort scale 11, 28m/s

Noise Level:

≤60db

Sound Insulation Level

24 Db

Fire Retardation:

Class A

Speed

0.2-0.4m / s

Max Dimension

12m * 8m

Sealing Performance

EPDM rubber all round sealing : two side, top, bottom,between door panels

Steel cord

Flexible ,3.8mm

Power Supply

380V 50Hz / 220V 50Hz

Service Life

10 years

Emergency Operation

Manual Hoist Chain to open the door in case of power off

Balance System

a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor

Safety

Airbag protection, door anti-fall device, wire rope anti-break protection device.

Optional Item

Window,pedestrian door



Installation method

Structural Features for Shared Industrial Spaces

High-Strength Panel Construction

Steel or aluminum sectional panels withstand daily use by different tenants.

Stable Track & Lifting System

Ensures smooth operation even with varying usage intensity across units.

Designed for Frequent Open-Close Cycles

Supports continuous use in shared industrial environments.


Safety & Access Control Features

Mechanical Safety Protection

Includes spring break and cable break devices for shared-use safety.

Vision Panels for Traffic Awareness

Improves visibility in shared corridors and loading zones.

Access Control Compatibility

Supports key switches, remote controls, and access systems for tenant-level management.


Operation Options for Multi-Tenant Applications

Manual Doors for Low-Traffic Units

Cost-effective solution for storage or low-frequency access areas.

Automatic Industrial Doors for Active Tenants

Motorized operation improves efficiency in busy tenant spaces.


Common Applications in Multi-Tenant Industrial Buildings

Individual Tenant Units

Separates operational areas while maintaining easy access.

Shared Loading & Unloading Areas

Supports organized logistics flow among multiple users.

Internal Partition Between Tenants

Acts as a reliable industrial partition door.

Service & Maintenance Zones

Provides controlled access to shared technical areas.


FAQ – Multi-Tenant Industrial Buildings

Are sectional overhead doors suitable for shared industrial buildings?

Yes, they are widely used in multi-tenant facilities due to flexibility and durability.

Can different tenants use different control methods?

Yes, doors can be configured with separate access systems.

Do these doors require frequent maintenance?

No, heavy-duty design ensures low maintenance under shared use.
