Steel Sectional Overhead Door 10-15m/min Opening Speed For Airport Ground Support Facilities
Industrial Sectional Overhead Door for Airport Ground Support Facilities
Airport ground support facilities are essential to efficient aircraft operations, handling baggage carts, cargo loaders, fuel trucks, catering vehicles, and maintenance equipment around the clock. These buildings require durable and reliable door systems that can withstand frequent vehicle traffic, large opening sizes, and demanding operational schedules. The Industrial Sectional Overhead Door is an ideal solution for airport service buildings, offering excellent insulation, smooth operation, and long-term durability.
Also known as a Sectional Overhead Door, Commercial Sectional Overhead Door, or Sectional Overhead Doors Commercial, this heavy-duty lift-up door is widely used in airport maintenance garages, equipment storage buildings, vehicle service bays, and logistics facilities. For projects requiring fire compartmentation, optional Fire Rated Sectional Overhead Door configurations are available to enhance building safety and regulatory compliance.
Core Features for Airport Ground Support Applications
Heavy-Duty Door Panels
Steel or aluminum panels resist impacts from vehicles and daily operations.
Reinforced Tracks & Balanced Spring System
Smooth operation for high-frequency use and heavy loads.
Reliable Sealing & Protection
Minimizes dust, debris, and environmental exposure to internal areas.
Product Specifications
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.3-0.6mm |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm / 80mm |
| Density of Sandwiches | 43kg/m³ |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 10-15m/min |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Installation method

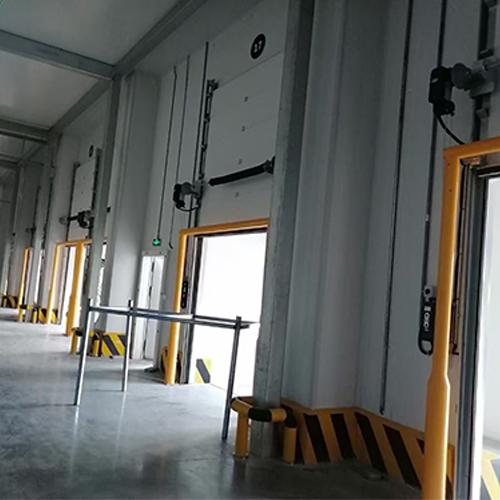

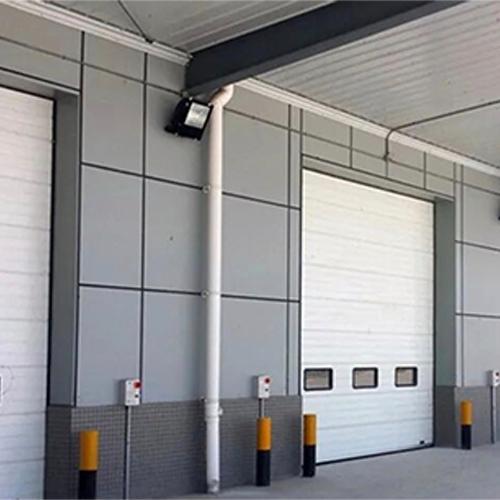

Typical Applications in Airport Ground Support Facilities
Equipment Storage & Maintenance Zones
Secures trolleys, baggage carts, fuel trucks, and maintenance tools.
Vehicle Garages & Service Bays
Facilitates quick entry and exit for airport service vehicles.
Loading & Refueling Areas
Supports organized workflow during aircraft servicing operations.
Material Handling & Supply Storage
Provides secure access for parts, tools, and other ground support materials.
FAQ – Airport Ground Support Facilities
Can sectional overhead doors handle large ground support vehicles?
Yes, doors can be customized for wide and tall vehicle access.
Are insulated doors necessary for ground support areas?
Optional, mainly for climate-controlled maintenance or sensitive storage zones.
Is automatic operation recommended?
Yes, for main vehicle bays with high-frequency use.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
|
|
|

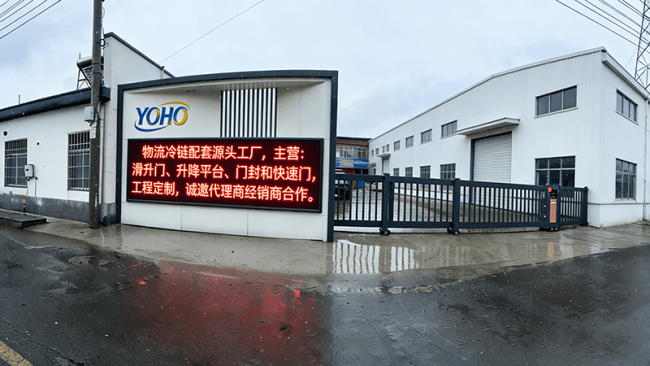

Why Choose Changzhou YOHO Industrial Door Co., Ltd.
Changzhou YOHO Industrial Door Co., Ltd. is a professional manufacturer of industrial door systems and loading dock equipment, serving distributors, contractors, and EPC project buyers worldwide.

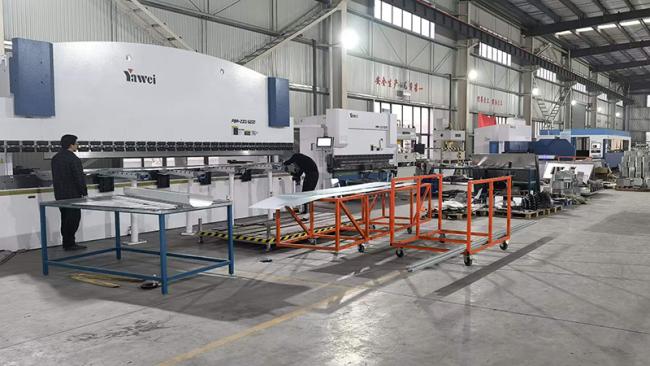

Advanced Manufacturing Capability
Our factory is equipped with CNC cutting machines, automated production lines, and professional testing equipment to ensure precise manufacturing and stable quality.
 |
 |
International Certifications
Our industrial sectional overhead doors are manufactured under strict quality control and comply with international standards such as CE and ISO certifications.
Get a Quote for Industrial Sectional Overhead Doors
Whether you need a Sectional Overhead Door, Commercial Sectional Overhead Door, Industrial Sectional Overhead Door, or Fire Rated Sectional Overhead Door for airport ground support facilities, Changzhou YOHO Industrial Door Co., Ltd. can provide reliable products, competitive pricing, and professional technical support.
Contact us today to receive:
- Free project consultation
- Customized technical drawings
- Bulk order quotations
- OEM and private label solutions
Send your door size and project requirements now, and our engineering team will recommend the most suitable sectional overhead door solution for your facility.
