High Load Capacity Sectional Door Suitable For Heavy Vehicle Traffic Used In Railway Freight Depots

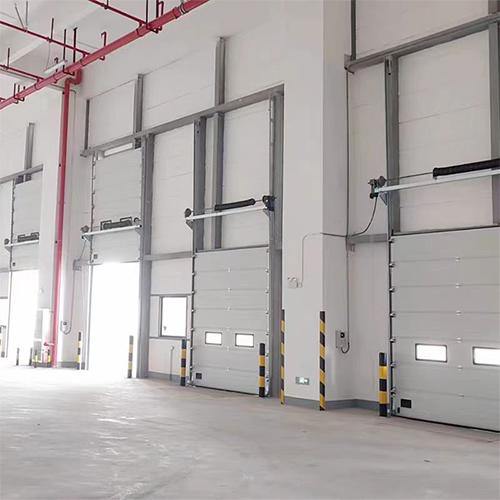

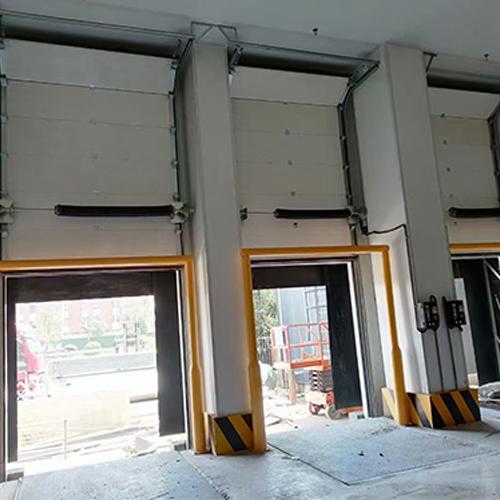

Industrial Sectional Overhead Door for Railway Freight Depots
Railway freight depots handle high volumes of cargo transported by trains and trucks. Doors in these facilities must withstand frequent opening and closing, heavy equipment, and rapid cargo transfer schedules. An Industrial Sectional Overhead Door offers a durable lift-up solution that optimizes workflow, improves safety, and maximizes space in railway freight operations.
Core Features for Railway Freight Depot Applications
Heavy-Duty Industrial Panels
Steel or aluminum panels resist impact from cargo handling and machinery.
Reinforced Track & Spring System
Provides smooth, stable operation during continuous high-frequency use.
Effective Sealing & Environmental Protection
Protects goods from dust, drafts, and weather conditions in open rail yards.
Product Specifications
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 0.2-0.4m / s |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Installation method
Insulation & Environmental Considerations
Single-Skin Panels for Standard Freight Storage
Ideal for general cargo zones without climate control.
Insulated Sectional Doors for Sensitive Cargo
Maintains stable conditions for temperature-sensitive or high-value shipments.
Noise Reduction & Staff Comfort
Reduces operational noise in office or nearby operational zones.
Safety & Traffic Management
Mechanical Safety Features
Spring break and cable safety systems prevent accidents.
Vision Panels for High Visibility
Helps prevent collisions between vehicles and personnel in busy freight yards.
Controlled Door Movement
Ensures safe operation under heavy traffic conditions.
Operation & Control Options
Manual Operation for Low-Traffic Access
Cost-effective solution for secondary or auxiliary doors.
Automatic Operation for Main Freight Bays
Electric operation increases efficiency in high-volume loading areas.
Integration with Access and Scheduling Systems
Optional integration for secure and timed operations.
Typical Applications in Railway Freight Depots
Inbound Cargo Receiving Areas
Supports unloading from freight trains and trucks.
Sorting & Temporary Storage Zones
Facilitates organization and preparation for onward transport.
Outbound Shipping Areas
Optimizes workflow for deliveries to distribution centers or clients.
Maintenance & Equipment Storage
Secures forklifts, cranes, and other cargo-handling tools.
Customization Options
Door Size & Track Layout
Adapted to rail dock dimensions and cargo vehicle heights.
Windows, Pass Doors & Accessories
Enhances visibility and safe personnel movement.
Color & Surface Finish Options
Supports zoning, depot identification, and durability.
Installation & Maintenance
Flexible Installation for Rail Freight Structures
Compatible with steel, concrete, or modular depot buildings.
Low Maintenance for Heavy-Use Operations
Ensures long-term reliability under continuous freight handling.
FAQ – Railway Freight Depots
Can sectional overhead doors handle frequent train cargo operations?
Yes, they are designed for continuous industrial use and heavy traffic.
Are insulated doors necessary in railway depots?
Insulation is optional, depending on the type of cargo stored.
Is automatic operation recommended?
Yes, especially for main loading and unloading bays to improve efficiency.
|
|
|
