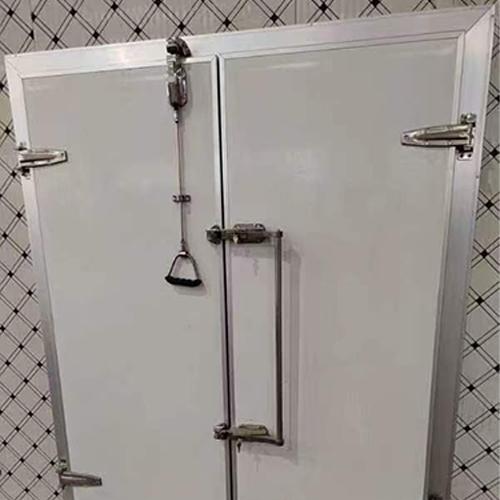

75mm / 100mm / 120mm / 150mm Semi Embedded Cold Room Swing Door For Industrial & Commercial Cold Storage Facilities

Industrial and commercial cold storage facilities require doors that can withstand frequent use while maintaining consistent internal temperatures. The semi-recessed cold room door is designed to meet these demands by combining strong insulation performance, stable structure, and reliable sealing for large-scale cold storage operations.

This insulated cold storage door is commonly installed in logistics warehouses, distribution centers, and commercial cold rooms where efficiency, durability, and energy control are critical.

Structural Design for Industrial and Commercial Cold Rooms

Semi-Recessed Installation for Warehouse Cold Storage

The semi-recessed installation allows the door leaf to align closely with the cold room wall, reducing exposed edges and minimizing thermal bridges. This structure supports better temperature retention in large industrial cold rooms and improves overall energy efficiency.

Swing Door Design for Logistics Operations

Single-leaf and double-leaf swing door options accommodate different door openings and traffic requirements. The design supports frequent opening by forklifts, pallet trucks, and manual handling without compromising door stability.

Insulation Performance for Large-Scale Cold Storage

Polyurethane Insulated Door Core

The door leaf is filled with high-density polyurethane insulation (40kg/m³ ±2), providing consistent thermal protection for industrial and commercial cold storage environments.

Door Thickness Options for Different Storage Zones

Available door thicknesses of 75mm, 100mm, 120mm, and 150mm allow the door to be matched to chilled storage areas, frozen warehouses, and ultra-low temperature freezer rooms down to -45°C.

Product Specifications

Sealing Performance and Airtight Control

EPDM and Magnetic Sealing System

EPDM sealing strips combined with PVC magnetic seals ensure tight closure, reducing cold air leakage and improving temperature stability across industrial cold storage zones.

Improved Energy Control in Cold Storage Facilities

Effective sealing helps reduce energy loss, supporting cost-efficient operation in large commercial cold storage warehouses.

Hardware and Safety Configuration

Industrial-Grade Hardware for Low Temperatures

Zinc alloy, stainless steel, and nylon hardware components are selected for reliable operation in cold and frozen storage conditions.

Internal Safety Release System

An internal push rod and emergency handle allow safe exit from inside the cold room, meeting safety requirements commonly applied in industrial and commercial facilities.

Typical Industrial and Commercial Applications

• Cold Chain Logistics Warehouses
• Distribution Centers and Transit Cold Rooms
• Third-Party Cold Storage Facilities
• Import and Export Cold Storage Areas
• Commercial Refrigerated Warehouses

Advantages for Industrial & Commercial Cold Storage

• Stable Temperature Control in Large Cold Rooms
• Reduced Energy Loss During Frequent Door Operation
• Durable Structure for High-Traffic Environments
• Lower Maintenance Requirements in Long-Term Use
• Customizable Design for Different Facility Layouts

Frequently Asked Questions

Is a semi-recessed cold room door suitable for industrial cold storage warehouses?

Yes. Its insulation performance, durability, and sealing design make it suitable for high-traffic industrial cold storage facilities.

What door thickness is recommended for commercial freezer rooms?

For frozen storage areas, door thicknesses of 100mm or above are recommended, depending on the target temperature.

Is door frame heating necessary in large cold storage facilities?

For freezer rooms and low-temperature warehouses, heated door frames are strongly recommended to prevent icing and ensure smooth operation.
