0.5mm 0.6mm 0.8mm Insulated Cold Room Doors For Cold Chain Logistics
Frozen Environments Down To -45°C Insulated Sliding Cold Storage Door For Cold Chain Logistics

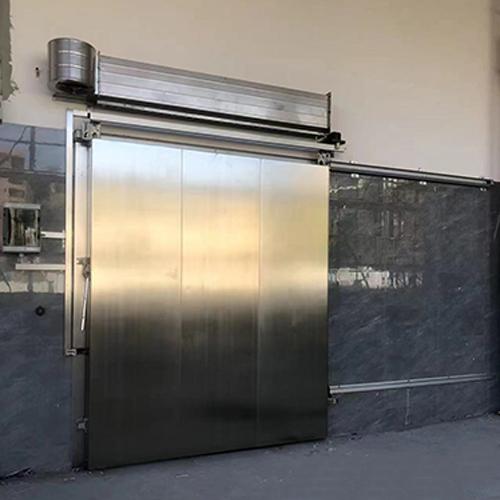

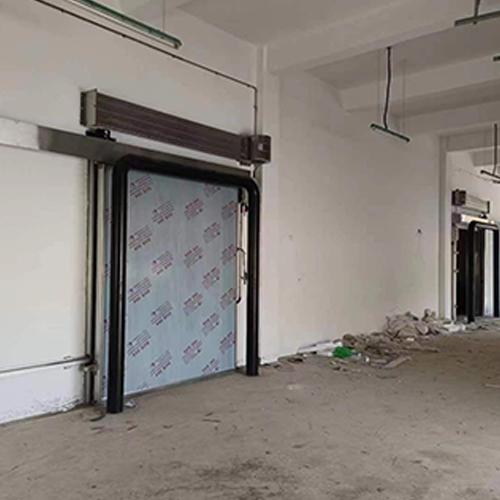

Electric Sliding Cold Storage Doors are widely used in cold chain logistics centers, temperature-controlled warehouses, and refrigerated distribution hubs where fast material flow, stable temperature control, and high operational efficiency are essential.
This motorized cold storage sliding door is designed to support high-frequency opening cycles, large door openings, and continuous logistics operations in chilled and frozen environments down to -45°C.
With an insulated airtight structure and electric operation, the door minimizes cold air loss while maintaining smooth logistics movement for pallets, forklifts, and automated handling systems.
Product Specifications
| Required Options | Parameter requirements | |
| Electric Sliding Door (Single Leaf) | Electric sliding doors (double-leaf) | |
| Door size | Door opening width less than 3 meters | Door opening width greater than 3 meters |
| Opening direction | Left opening/Right opening | Double-leaf |
| Door panel thickness | 150/200mm | 150/200mm |
| Panel material | 0.5mm, 0.6mm, 0.8mm color-coated steel 0.6mm, 0.8mm, 1.0mm stainless steel |
0.5mm, 0.6mm, 0.8mm color-coated steel 0.6mm, 0.8mm, 1.0mm stainless steel |
| Door leaf material | Aluminum alloy door panel with thermal break | Aluminum alloy door panel with thermal break |
| Clear opening (door frame) | Aluminum alloy door frame with thermal break | Aluminum alloy door frame with thermal break |
| Upper track | Heavy-duty upper track, aluminum alloy material | Heavy-duty upper track, aluminum alloy material |
| Lower track | Side track, aluminum alloy material | Side track, aluminum alloy material |
| Door accessories | Complete set of 304 stainless steel & nylon accessories | Complete set of 304 stainless steel & nylon accessories |
| Sealing material | EPDM rubber | EPDM rubber |
| Safety device | Internal handle (optional internal door opener) New type of emergency escape device (safety escape lock) |
Internal handle (optional internal door opener) New type of emergency escape device (safety escape lock) |
| Door leaf material | Thermal insulation and flame-retardant polyurethane (40kg/m³±2) | Thermal insulation and flame-retardant polyurethane (40kg/m³±2) |
| Heating method | Standard aluminum alloy door frame with 3-sided heating, optional threshold heating | Standard aluminum alloy door frame with 3-sided heating, optional threshold heating |
| Electrical control system | Cold storage door dedicated electronic control | Cold storage door dedicated electronic control |
| Air curtain | Optional color-coated steel or stainless steel centrifugal air curtain | Optional color-coated steel or stainless steel centrifugal air curtain |
| Suitable temperature | -45°~50° | -45°~50° |
Safety Features for Cold Chain Logistics Operations
Safety is essential in high-traffic logistics environments.
Emergency Escape Device & Safety Release Lock
A built-in emergency escape system allows personnel to exit safely from inside cold rooms at any time.
Internal Handle & Optional Manual Override
The internal handle and manual override ensure reliable operation during power interruptions.
Application Scenarios in Cold Chain Logistics
Electric sliding cold storage doors are widely used in:
Cold Chain Warehouses & Distribution Centers
Ideal for refrigerated warehouses, regional cold chain hubs, and distribution centers.
Freezer Rooms & Temperature-Controlled Zones
Suitable for multi-temperature logistics facilities with chilled and frozen zones.
Logistics Loading & Internal Transfer Areas
Used at internal transfer points to separate temperature zones while maintaining efficient material flow.
Optional Accessories & Customization Options
Centrifugal Air Curtain Options
Optional centrifugal air curtains help reduce cold air loss during frequent logistics operations.
Customized Door Size, Opening Direction & Control Systems
Customization options include large opening sizes, opening direction, and integration with logistics control systems.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Frequently Asked Questions About Electric Sliding Cold Storage Doors for Cold Chain Logistics
What temperature range is suitable for cold chain logistics use?
The door supports environments from -45°C to +50°C.
How does the door help reduce energy loss?
Airtight sealing, PU insulation, and optional air curtains minimize cold air leakage.
Can the door be customized for large logistics openings?
Yes, double leaf configurations and custom sizes are available.
|
|
|
