Aluminum Roll Up Shutter Door With Servo System 0.6–1.5m/s Opening Speed For Warehouse Logistics Factory
Aluminum Roll Up Shutter Door With Servo System 0.6–1.5m/s Opening Speed For Warehouse, Logistics, Factory
Product Introduction

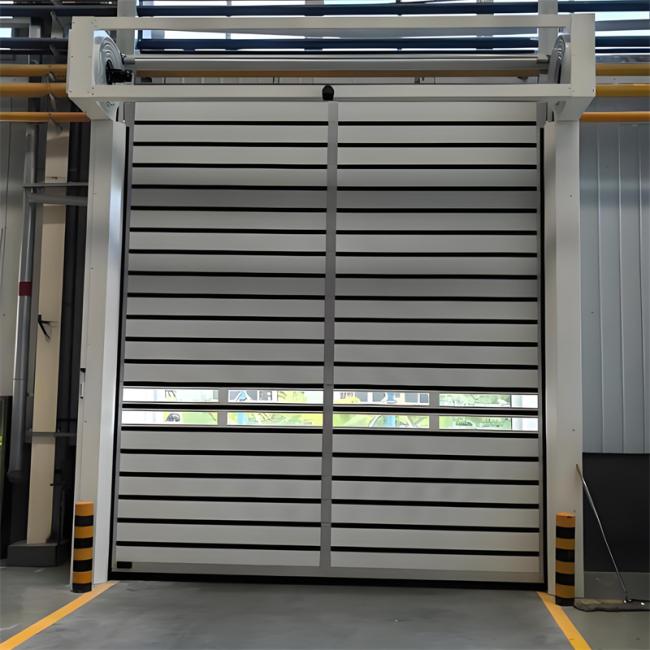

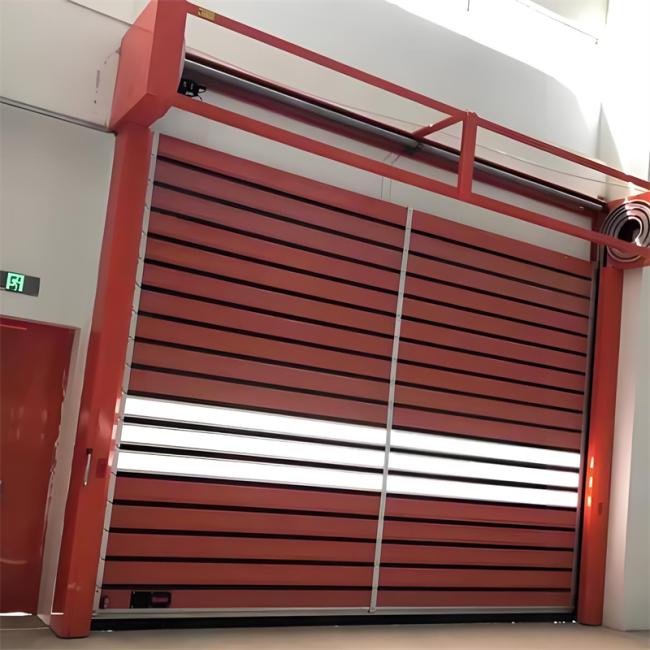

The High Speed Spiral Door is a high-performance industrial door system designed for facilities that require fast access, high security, and frequent operation. Compared with traditional doors, this High Speed Roll Up Shutter Door adopts a spiral lifting structure, allowing the door panels to move along a spiral track without friction between slats, significantly improving durability and operation speed.
This Spiral Roll Up Shutter Door integrates an aluminum curtain system, advanced servo motor, and safety control system. It is widely used in warehouses, logistics centers, manufacturing facilities, and commercial buildings that require rapid opening, reliable operation, and enhanced wind resistance.
Key Features of High Speed Spiral Door
High Speed Opening & Closing Performance
- Opening speed up to 0.6–1.5 m/s
Enables rapid passage for forklifts and vehicles, reducing waiting time. - Adjustable speed settings
Allows flexible configuration based on site conditions.
Aluminum Roll Up Shutter Door Structure
- High-strength aluminum curtain
Provides excellent durability and impact resistance. - Lightweight yet rigid panels
Ensures stable movement and long service life.
Spiral Roll Up Shutter Door Design
- Spiral lifting track system
Prevents panel-to-panel contact during operation. - Reduced wear and tear
Minimizes maintenance compared to traditional roll-up doors.
Intelligent Servo Motor & Control System
- Special servo motor system
Delivers precise and stable door operation. - Smooth acceleration and deceleration
Improves safety and extends motor life.
Advanced Safety Protection System
- Bottom safety buffer device
Prevents accidents during closing. - Safety sensors (optional)
Enhances protection for people and vehicles.
Product Specifications
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
Technical Specifications of High Speed Spiral Door
Door Size Range
- Width: 1000–7000 mm
- Height: 1500–5000 mm
- Customized sizes available for special applications.
Operating Performance
- Opening speed: 0.6–1.5 m/s
- Closing speed: 0.6 m/s
- Daily operation frequency: 500–800 cycles
Power & Control
- Motor power: 0.75–1.5 kW
- Voltage options available upon request
- Servo control system for accurate operation.
Material Options
- Aluminum panels
- PVC curtain options
- Composite materials for insulation and durability.
Wind Resistance
- Designed to withstand wind speeds up to Grade 8, suitable for exterior industrial entrances.
Advantages of High Speed Roll Up Shutter Door
Improves Operational Efficiency
- Fast opening cycles reduce waiting time and increase workflow efficiency.
Enhances Safety & Reliability
- Integrated safety systems protect equipment and personnel.
Low Maintenance & Long Service Life
- Spiral design reduces wear and extends component lifespan.
Supports High-Frequency Operation
- Designed for intensive use in logistics and manufacturing environments.
Applications of Spiral Roll Up Shutter Door
Industrial Warehouses
Used in high-traffic warehouse entrances for fast access.
Logistics & Distribution Centers
Improves loading and unloading efficiency.
Manufacturing Plants
Separates production areas while maintaining workflow.
Commercial & Parking Facilities
Suitable for garages and secure commercial entrances.
Installation Options & Space Requirements
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.
The Spiral Lift High Speed Door can be adapted to various metal plant layouts:
- Large exterior openings
- Internal workshop partitions
- High headroom or limited side space
Multiple lifting configurations are available to meet site conditions.
Why Choose Our High Speed Spiral Door
Certified Manufacturing Quality
- Complies with ISO 9001 / CE standards.
- Strict quality control ensures consistent performance.
Customization & Flexibility
- Customized sizes, colors, and control systems available.
Professional Industrial Experience
- Extensive experience in industrial high speed door systems.
- Global export capability and after-sales support.
FAQ – High Speed Spiral Door
What is a High Speed Spiral Door?
A High Speed Spiral Door is a fast-operating industrial door that lifts along a spiral track, reducing wear and enabling rapid operation.
What materials are used in this roll up shutter door?
Common materials include aluminum panels, PVC, and composite materials, depending on application requirements.
How fast can the door open?
The High Speed Roll Up Shutter Door can reach opening speeds up to 1.5 m/s, with adjustable settings.
Is it suitable for outdoor use?
Yes. The Aluminum Roll Up Shutter Door offers strong wind resistance and durability for exterior installations.
|
|
|
