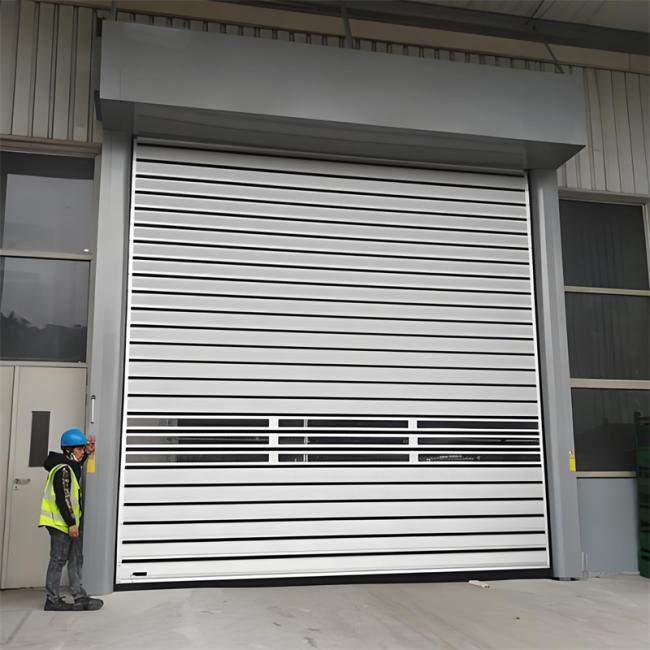

High Speed Roll Up Shutter Door With Aluminum Panels For Commercial Industrial Buildings
High Speed Roll Up Shutter Door With Aluminum Panels For Commercial & Industrial Buildings
Product Introduction
As industrial and commercial buildings evolve, access systems must deliver both efficiency and reliability. The High Speed Spiral Door offers a high-performance solution designed for environments where speed, durability, and safety are essential.
This High Speed Roll Up Shutter Door combines a spiral lifting mechanism with advanced servo control technology, ensuring smooth and precise operation. Compared to conventional roll up shutter door systems, this Spiral Roll Up Shutter Door provides longer service life and improved operational stability, making it ideal for demanding applications.
Key Features of Spiral Roll Up Shutter Door
Spiral Lifting Mechanism
-
Independent panel movement
Prevents friction and reduces wear between door sections. -
Smooth and quiet operation
Improves user experience in commercial environments.
High Speed Operation Performance
-
Opening speed up to 1.5 m/s
Ensures fast access for vehicles and personnel. -
Adjustable operation parameters
Allows flexible control for different usage scenarios.
Aluminum Roll Up Shutter Door Structure
-
Durable aluminum panels
Provide strength and resistance to environmental impact. -
Optional transparent sections
Enhance visibility and lighting if required.
Advanced Safety System
-
Bottom safety buffer device
Protects against accidental collisions. -
Optional infrared sensors
Detect obstacles and prevent accidents.
Intelligent Control System
-
Servo motor system
Ensures precise positioning and consistent operation. -
User-friendly control interface
Simplifies daily operation and maintenance.
Product Specifications
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
Technical Specifications
Size & Customization
- Standard size range available
- Full customization support for large openings
Performance Parameters
- High cycle operation capability
Suitable for frequent daily use. - Stable opening and closing speeds
Maintains efficiency over time.
Power Configuration
- 0.75–1.5 kW motor
- Industrial-grade power system
Advantages of High Speed Roll Up Shutter Door
Reliable Long-Term Performance
-
Robust structure
Ensures consistent operation in demanding environments.
Reduced Maintenance Requirements
-
Spiral design
Minimizes mechanical wear and service frequency.
Improved Operational Efficiency
-
Fast opening speed
Reduces waiting time and increases productivity.
Enhanced Safety & Control
-
Integrated safety systems
Protect both personnel and equipment.
Applications
Warehouses
Supports high-frequency logistics operations.

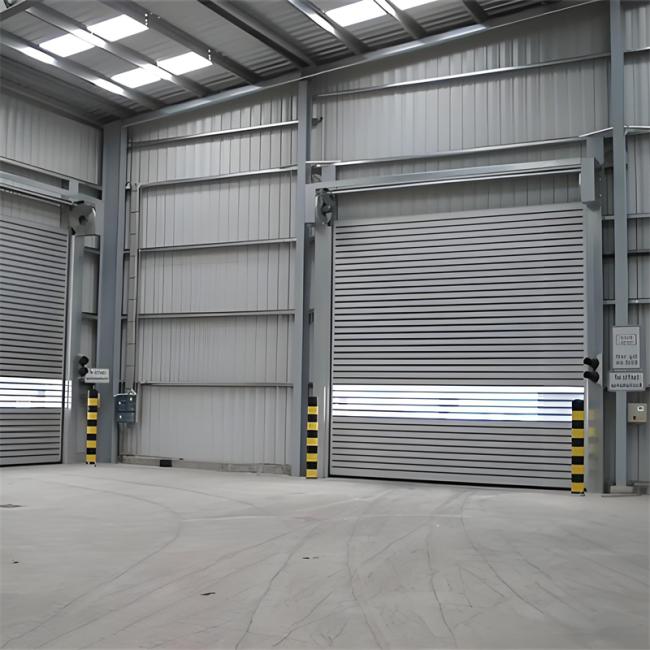

Industrial Facilities
Ensures efficient internal transportation.
Commercial Buildings
Provides modern and secure entrances.
Parking Systems
Improves vehicle flow and access control.
Installation Options & Space Requirements
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.
The Spiral Lift High Speed Door can be adapted to various metal plant layouts:
- Large exterior openings
- Internal workshop partitions
- High headroom or limited side space
Multiple lifting configurations are available to meet site conditions.
Why Choose Our Spiral High Speed Door
Advanced Engineering Design
Optimized for performance and durability.
High-Quality Materials
Ensure long service life and stability.
Flexible Customization
Adapts to different project requirements.
Reliable Global Service
Supports international customers.
FAQ
What is a spiral high speed door?
A high-speed door with a spiral lifting structure for improved durability.
What makes it better than traditional doors?
Reduced wear, faster speed, and longer lifespan.
Is it suitable for commercial use?
Yes, widely used in both industrial and commercial buildings.
|
|
|
