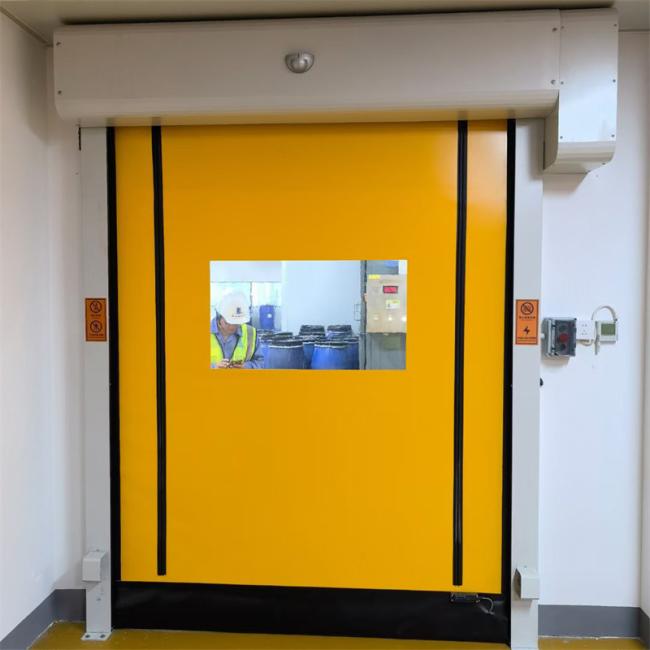

Wind Resistance Grade 5 Industrial High Speed Zipper Door Self Repairing Curtain System For Modern Facilities
Wind Resistance Grade 5 Industrial High Speed Zipper Door With Self-Repairing Curtain System For Modern Facilities
Reliable High-Speed Door for Modern Facilities
Wind Resistance Grade 5 – Stable Performance in Industrial Environments
-
Reinforced Zipper Track Structure
The High Speed Zipper Door adopts a zipper-guided side track system that firmly locks the curtain in place, preventing deviation or detachment under wind pressure.
-
Anti-Flutter Curtain Stability
Compared with traditional soft curtain high speed doors, the curtain remains stable without shaking or fluttering, even in areas with frequent airflow or pressure differences.
-
Reliable Operation Under Air Pressure
Designed as a wind resistant high speed door, it performs consistently in logistics buffer zones, warehouse entrances, and semi-outdoor environments.
-
Enhanced Sealing Performance
The tight zipper structure combined with bottom sealing ensures minimal air leakage, improving both insulation and dust control.
-
Reduced Wear and Longer Service Life
Stable operation under wind conditions reduces mechanical stress and curtain wear, extending the lifespan of the door system.
Product Parameters
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–5000 mm Door height: 1500–5000 mm |
| Control System (Servo System) | The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include: 1.LED Display: Shows fault codes for easy diagnostics. 2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement. 3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation. 4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions. |
| Drive Motor | The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism. 1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound. 2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications. |
| Operating Speed | Opening speed: 1.2-2.0 m/s (adjustable) Closing speed: 0.5-0.8 m/s (adjustable) |

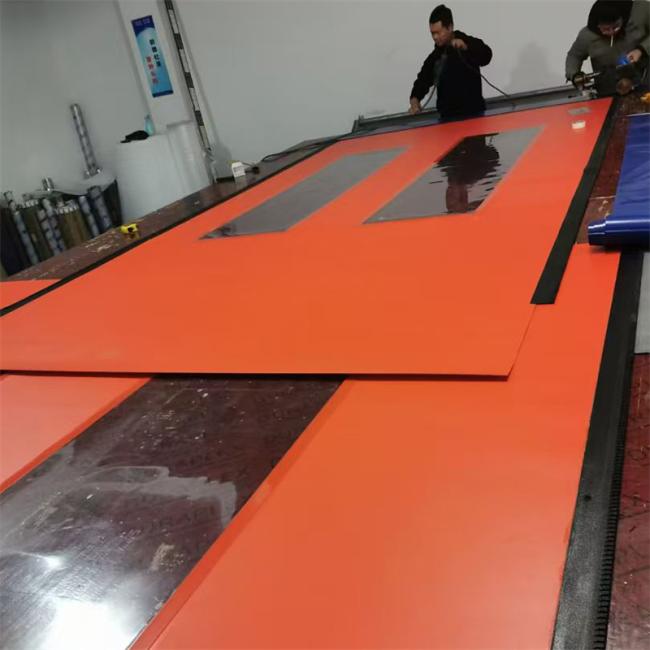

| Door Curtain Material | Door curtain thickness: 1.2–2.0 mm Available colors: Blue, Orange, Gray |
| Frame Material | Cabin tracks made of galvanized steel, upgradable to stainless steel. |
| Sealing Performance | The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness. |
| Wind Resistance | Up to Grade 5 wind resistance. |
| Safety Features | 1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear. 2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration) |
| Manual Operation | In case of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards. |
| Insulation Protection | IP54 rating ensures dustproof and waterproof operation even in harsh environments. |
| Operating Methods | Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control. |
| Reserved Interfaces | The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices. |
Intelligent Control System
DSP Servo Control Technology
Ensures precise door movement and positioning.
-
Automated Operation Compatibility
Supports integration with industrial automation systems.
-
Smart Error Detection
Real-time monitoring improves system reliability.
Safety Features
-
Infrared Safety Sensors
Stops or reverses door movement when obstacles are detected.
-
Bottom Edge Protection
Prevents accidents during closing.
Safe Manual Operation
Allows manual opening in case of power failure.
Application Areas
-
Industrial Warehouses
-
Logistics Transfer Zones
-
Manufacturing Facilities
-
Internal Clean Transport Areas
High-Frequency Access Zones
Suitable for areas with constant movement of goods and equipment.
Customization & Installation Options
-
Flexible Design Options
Door size, color, and control systems can be customized.
-
Multiple Activation Methods
Radar, remote control, pull cord, and loop detector available.
Site Adaptability
Installation can be adjusted based on available space and layout.
Why Choose This High Speed Zipper Door
-
Durable and Reliable Performance
Designed for long-term industrial use.
-
Energy Saving Operation
Reduces unnecessary air exchange.
-
Proven Industrial Solution
Widely used in global industrial applications.
FAQ
What industries use High Speed Zipper Doors?
Mainly logistics, manufacturing, and warehouse sectors.
Is it suitable for continuous operation?
Yes, it supports high-frequency daily use.
Can the door size be customized?
Yes, fully customizable based on requirements.
Does it require frequent maintenance?
No, the self-repairing system minimizes maintenance needs.
|
|
|
