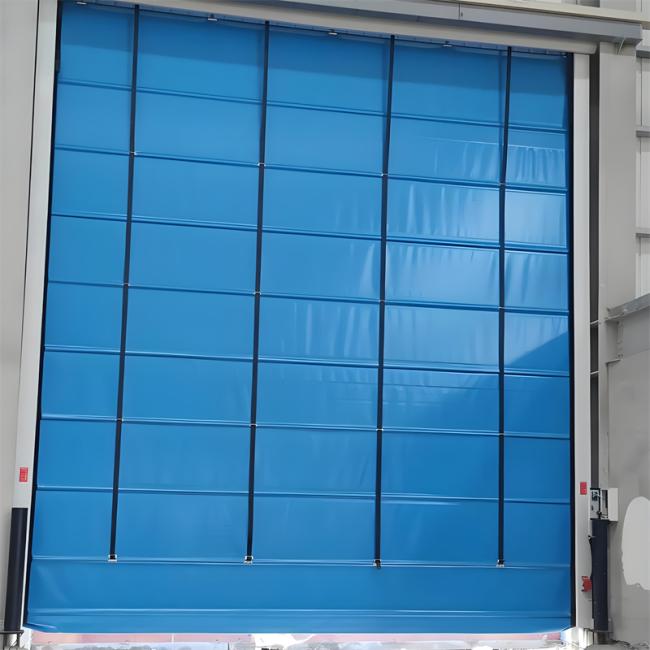

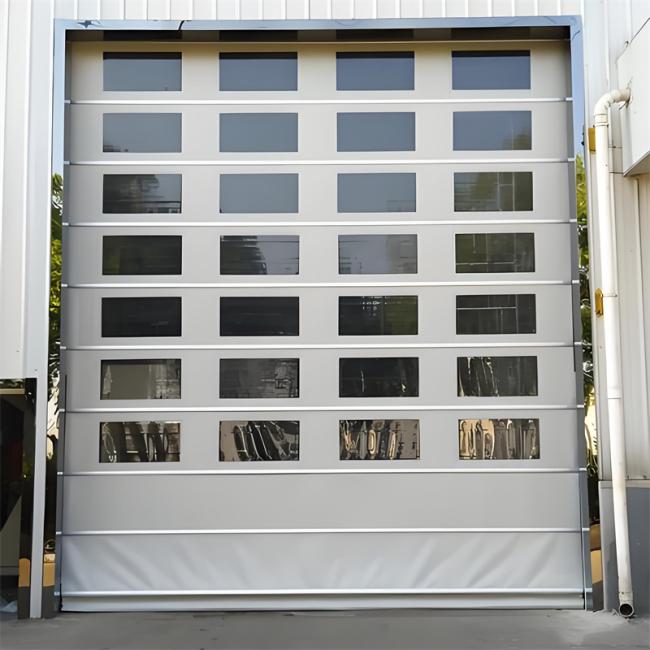

Product Overview of High Speed Folding Door
The Industrial High Speed Folding Door is a robust and reliable industrial entrance solution specifically developed for facilities requiring large door dimensions, high-speed operation, and long-term durability. Unlike conventional industrial doors, this system adopts a vertical stacking curtain structure, reducing mechanical stress and improving operational stability.
It is particularly suitable for high-demand environments such as warehouses, manufacturing plants, and heavy industry facilities where continuous operation and efficiency are essential.
Key Features of High Speed Stacking Door
-
Advanced Stacking Curtain Structure
Segmented Lifting Design
The curtain is lifted in sections rather than rolled, minimizing wear and ensuring stable performance for large-size openings.
Reduced Material Fatigue
Even stress distribution extends the lifespan of the curtain and reduces maintenance frequency.
-
High Frequency Operation Capability
Continuous Industrial Use
Designed to withstand intensive daily operation cycles without performance degradation.
Stable Operation Under Load
Maintains smooth and reliable movement even under heavy-duty working conditions.
-
Enhanced Wind Resistance Performance
Reinforced Structural Design
Equipped with wind-resistant bars and strong guide rails to improve stability.
Suitable for Outdoor Applications
Performs reliably in environments with strong wind pressure and weather exposure.
-
Servo Motor Control System
High Precision Positioning
Ensures accurate stopping position without the need for mechanical braking systems.
Smooth Acceleration & Deceleration
Reduces mechanical impact and extends system lifespan.
-
Multi-Layer Sealing System
Dust and Airflow Control
Brush sealing along tracks and bottom sealing structure effectively reduce contamination.
Improved Indoor Environment Stability
Helps maintain temperature and cleanliness in controlled spaces.
Technical Specifications
| Parameter | Description |
|---|---|
| Maximum Dimensions | Door width: 1000mm-12000mm, Door height: 1500mm-12000mm |
| Operating Speed | Opening speed: 0.6-1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | 0.8-1.5 mm thick curtain; available colors: Blue, Orange, Gray |
| Frame Material | Standard track frame: Galvanized steel with powder coating Optional upgrade: Stainless steel |
| Sealing Performance | High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure |
| Wind Resistance | Up to Class 6 wind, can be reinforced to Class 8 |
| Manual Operation | In case of power failure or malfunction, the door can be manually opened using a standard wrench |
| Power Supply Requirements | Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards |
| Insulation Protection | IP54, waterproof and dustproof for harsh environments |
| Opening/Closing Control | Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control |
| Pre-reserved Ports | Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible |
Installation Requirements
All measurements are taken indoors, with at least three points measured for each value:
- H - Doorway height (distance from the floor to the top of the doorway)
- B - Doorway opening width (distance from the left edge to the right edge of the doorway)
- h - The distance from the top of the doorway to the ceiling, which must be at least 900 mm
- b1/b2 - The distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm
When measuring H and B, the maximum value is taken as the final dimension; when measuring h, b1, and L, the minimum value is taken as the final dimension.
Available Color Options
FAQ – High Speed Stacking Door
What is the opening speed of the door?
The opening speed can reach up to 1.2 m/s and can be adjusted based on project requirements.
Is the door suitable for continuous operation?
Yes, it is specifically designed for high-cycle industrial use.
Can it be integrated with automation systems?
Yes, it supports radar sensors, loop detectors, and other automation systems.
