0.8–1.2 Mm PVC Door Curtain Thickness Industrial Fast Door Solution For Across Logistics Manufacturing
0.8–1.2 Mm PVC Door Curtain Thickness Industrial Fast Door Solution For Across Logistics, Manufacturing

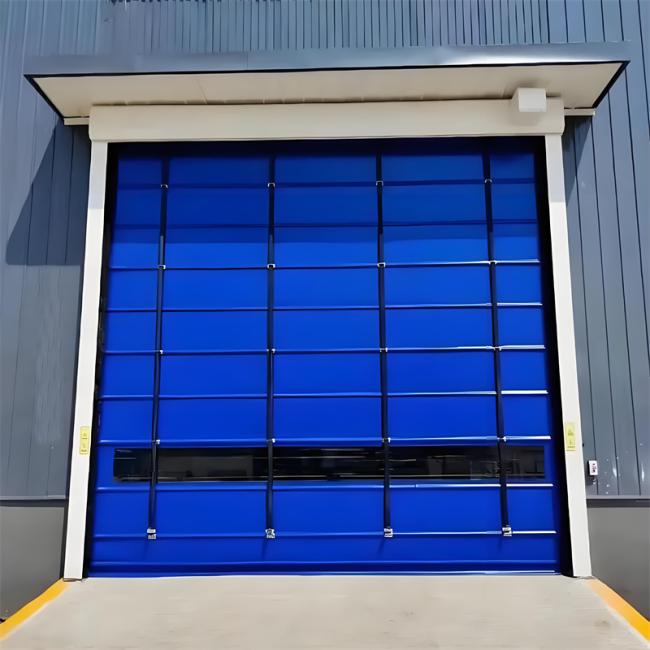

Product Overview of High Speed Stacking Door
The High Speed Stacking Door is a high-efficiency industrial door solution developed for modern facilities that require fast access, large opening capability, and reliable environmental control. With its advanced stacking structure and high-speed performance, it provides a superior alternative to traditional industrial doors.
This industrial fast door is widely used across logistics, manufacturing, and heavy industry sectors to enhance operational efficiency and reduce long-term costs.
Key Features of High Speed Stacking Door
-
Large Size Industrial Door Capability
Support for Oversized Openings
Designed to accommodate large industrial entrances, ideal for heavy equipment and vehicle access.
-
High-Speed Access System
Fast Opening & Closing Performance
Reduces waiting time and improves workflow efficiency.
High Cycle Durability
Maintains stable performance under continuous operation.
-
Robust and Durable Construction
Industrial-Grade Materials
Ensures long service life even in harsh environments.
Reinforced Structural Design
Improves resistance to wind and external forces.
-
Smart Control Integration
Automation Compatibility
Easily integrates with modern industrial control systems.
Multiple Operation Modes
Supports automatic and manual control methods.
-
Efficient Sealing Performance
Environmental Protection
Reduces dust and air leakage.
Temperature Control
Improves insulation performance in controlled environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Maximum Dimensions | Door width: 1000mm-12000mm, Door height: 1500mm-12000mm |
| Operating Speed | Opening speed: 0.6-1.2 m/s (adjustable) Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material | 0.8-1.2 mm thick curtain; available colors: Blue, Orange, Gray |
| Frame Material | Standard track frame: Galvanized steel with powder coating Optional upgrade: Stainless steel |
| Sealing Performance | High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure |
| Wind Resistance | Up to Class 6 wind, can be reinforced to Class 8 |
| Manual Operation | In case of power failure or malfunction, the door can be manually opened using a standard wrench |
| Power Supply Requirements | Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards |
| Insulation Protection | IP54, waterproof and dustproof for harsh environments |
| Opening/Closing Control | Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control |
| Pre-reserved Ports | Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible |
Installation Requirements
- H - Doorway height (distance from the floor to the top of the doorway)
- B - Doorway opening width (distance from the left edge to the right edge of the doorway)
- h - The distance from the top of the doorway to the ceiling, which must be at least 900 mm
- b1/b2 - The distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm
Available Color Options
Application Advantages of High Speed Stacking Door
-
Logistics & Distribution Centers
Optimized Transportation Efficiency
Improves vehicle turnaround time and reduces congestion.
High Throughput Capability
Supports continuous operation in busy logistics environments.
-
Manufacturing & Production Facilities
Production Line Optimization
Enhances efficiency between different operational zones.
Environmental Separation
Maintains clean and controlled production areas.
-
Heavy Industry Applications
Extreme Condition Adaptability
Suitable for dust, heavy load, and large-scale operations.
Large Equipment Accessibility
Supports entry and exit of oversized machinery.
-
Energy & Cost Efficiency
Reduced Energy Consumption
Minimizes temperature loss and air exchange.
Lower Operational Costs
Improves overall facility efficiency.
Company Strength
-
Full Manufacturing Capability
Integrated Production Process
Ensures quality and cost control.
-
Engineering & Technical Support
Project-Based Design Services
Customized solutions for different industries.
-
Global Export Experience
International Market Expertise
Supports clients across multiple regions.
Product Comparison – Stacking Door vs Traditional Industrial Door
-
Operational Efficiency
Stacking Door
Faster operation and better efficiency.
Traditional Door
Slower and less efficient.
-
Durability
Stacking Door
Longer service life under heavy use.
Traditional Door
More wear over time.
-
Application Range
Stacking Door
Suitable for large and high-demand environments.
Traditional Door
Limited to standard applications.
FAQ – High Speed Stacking Door
What industries use this door?
Used in factories, warehouses, logistics centers, and heavy industry.
Can it be customized?
Yes, fully customizable based on project needs.
What are the main benefits?
High speed, durability, and energy efficiency.
|
|
|
