High-Frequency Operation Industrial Rigid High Speed Door For Main Warehouse Entrance

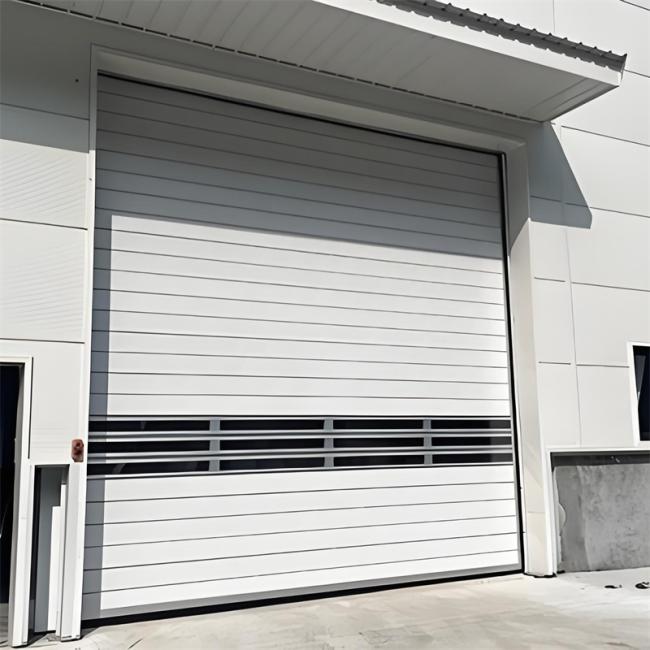

Aluminum Rigid High Speed Door for Warehouse Entrance
High Speed Spiral Door Designed for Logistics & Loading Dock Applications
Product Overview
The Aluminum Rigid High Speed Door is a high-performance industrial high speed door specifically designed for main warehouse entrances and high-traffic logistics environments. Built with durable aluminum alloy panels and a powerful drive system, this warehouse high speed spiral door delivers fast opening speeds, excellent wind resistance, and superior sealing performance.
Ideal for logistics centers, distribution hubs, and loading dock areas, this logistics rigid door ensures efficient vehicle and forklift movement while minimizing energy loss caused by air exchange. It is the optimal solution for modern warehouse operations requiring high-frequency use and reliable performance.
Key Features of Warehouse High Speed Spiral Door
High-Frequency Operation for Busy Warehouse Entrances
- Designed for intensive use (hundreds of cycles per day)
- Opening speed: 0.6–1.2 m/s (adjustable)
- Closing speed: 0.6 m/s
- Ideal for high traffic warehouse environments
Strong Wind Resistance for Exterior Applications
- Rigid aluminum structure for high stability
- Suitable for main warehouse entrance and external doors
- Performs reliably in windy outdoor conditions
Durable Aluminum Alloy Door Structure
- Aluminum rigid panel, total thickness 10mm
- Panel width 100mm for enhanced strength
- Long service life in heavy-duty logistics environments
Energy Saving & Insulated Performance
- Reduces cold/hot air exchange
- Improves warehouse temperature control
- Lowers energy consumption in large facilities
Efficient Sealing System
- Bottom seal: aluminum profile + sealing strip
- Track sealing: flexible sealing strips
- Prevents dust, air leakage, and external pollutants
Product Parameters
| Parameter | Description |
|---|---|
| Motor System | The motor drive system adopts a branded motor system, equipped with an encoder and an emergency manual opening mechanism. Ensures optimal performance of safety protection devices (such as infrared sensors) with fast rebound response. Features strong overload capacity, capable of operating over 1,000 cycles per day in high-frequency applications. Supports automatic/manual mode switching while ensuring safe operation of the high-speed door. The control cabinet is installed inside the workshop, and an external up/down push button is provided outside the door for convenient access by external personnel. |
| Control System | The rigid high-speed door is equipped with a dedicated control system and a specialized control box with power options of 0.75 / 1.5 / 2.2 kW. The control box includes a main power switch, emergency stop button, manual/automatic mode selector, and manual up/down control buttons. It allows precise control of the door opening height. |
| End Buffering | End buffering technology effectively protects the reducer and operating mechanism from rigid impact damage. Speed can be digitally adjusted according to actual requirements, enabling full-stroke speed variation (fast–slow–stop), reducing wear on components and providing outstanding protection for the reduction mechanism. |
| Door Structure | The door curtain adopts a modular assembly structure, using aluminum alloy panels specifically designed for industrial doors with multi-layer sealing strips. The aluminum alloy hollow panel has a standard width of 90 mm, thickness of 1.5 mm, and wall thickness of 1.0 mm. The surface is anodized with organic coloring, available in optional colors. Panels are sealed with flexible connection strips, offering a folding life of over one million cycles. The panels do not contact each other, maintaining long-term flatness and durability. |
| Safety System | Infrared Safety Sensors: Photoelectric sensors are installed on both sides of the door frame. When an obstacle is detected beneath the door, it remains open. If an object passes through during closing, the door reopens to the preset open position and descends again after a delay once the area is clear. External infrared devices can be connected to control fast rebound. Rebound speed and infrared function logic (single activation or continuous hold-open) can be easily adjusted via parameters. Bottom Safety Edge: When an obstacle is located within the infrared blind zone during closing, the bottom safety edge triggers an immediate upward rebound upon contact, effectively protecting people and objects and preventing accidents. |
| Wind Resistance | Wind resistance up to 32 m/s, compliant with national standard Grade 12 wind resistance. |
| Transparent Window | High-quality PVC panels with a double-layer structure provide excellent thermal insulation while maintaining high transparency and natural lighting. Clear visibility from both sides enhances aesthetics and overall appearance. (Optional) |
| Sealing Performance | Multiple sealing designs including guide rail sealing, inter-panel sealing, top sealing, and bottom sealing ensure excellent airtightness and effective environmental isolation between indoor and outdoor areas. |
| Thermal Insulation Performance | For an installed door in the closed state (4 × 3 m), the thermal insulation coefficient is K < 0.6 W/(㎡·K). |
| Manual Operation | In the event of a power failure, the motor brake can be released at any time, allowing the door to be lifted with the assistance of the balancing system. This effectively resolves situations where the door cannot be opened due to power loss or malfunction. |
| Panel Drive System | The door panels are driven by a high-quality, wear-resistant, high-strength roller chain structure. The synchronized chain drives the door into a variable-speed roller mechanism for smooth and efficient operation. |
| Operating Methods | Standard one-touch push button with emergency stop function; manual opening operation available during power failure. |
Application Value in Main Warehouse Entrance
-
Improve Vehicle & Forklift Traffic Efficiency
The fast opening industrial high speed door minimizes waiting time, allowing smooth passage for forklifts, trucks, and pallet handling equipment.
-
Reduce Energy Loss in Warehouse Operations
The insulated aluminum high speed door reduces airflow exchange, maintaining indoor temperature and improving energy efficiency.
-
Enhance Logistics Workflow
As a loading dock high speed door, it ensures continuous and efficient goods movement in high-volume logistics environments.
-
Reliable for High-Frequency Use
Designed for hundreds of opening cycles per day, ensuring stable and long-term performance in busy warehouse entrances.
-
Ideal for Exterior Industrial Applications
The wind-resistant rigid structure makes it perfect for warehouse exterior doors and large industrial openings.
Typical Applications
-
Main Warehouse Entrance
High-speed access for logistics operations
-
Loading Dock Areas
Efficient loading and unloading processes
-
Distribution Centers
Smooth material flow in high-volume environments
-
Logistics Hubs
Supports continuous high-frequency operations
FAQ
What is the best high speed door for warehouse entrance?
An aluminum rigid high speed door is the best choice due to its durability, wind resistance, and high-speed operation for heavy logistics use.
Can this door handle high-frequency operation?
Yes, it is designed for hundreds of cycles per day, ideal for busy warehouse and loading dock environments.
Is this door suitable for exterior warehouse use?
Yes, its rigid aluminum structure provides excellent wind resistance, making it perfect for external warehouse entrances.
Does it help reduce energy costs?
Yes, the insulated structure and sealing system significantly reduce energy loss caused by air exchange.
Can the door be customized for different warehouse sizes?
Yes, size, color, and optional vision window can be customized based on project requirements.
|
|
|
