Customized Color Flexible PVC Curtain Structure High Speed Zipper Door For Warehouse Logistics And Industrial
Customized Color Flexible PVC Curtain Structure High Speed Zipper Door For Warehouse, Logistics And Industrial Applications
Product Introduction

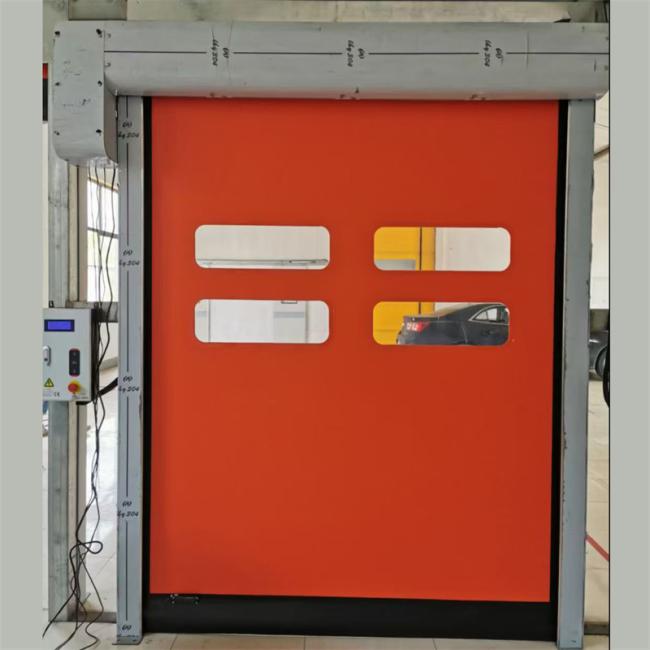

The High Speed Zipper Door is a high-performance industrial high speed door designed for environments that require fast access, high efficiency, and reliable sealing. Featuring a flexible PVC curtain combined with a self-repairing zipper structure, this zipper high speed door ensures smooth operation even under high-frequency usage conditions.
As a widely used warehouse high speed door and logistics high speed door, it plays a critical role in improving internal transportation efficiency while maintaining environmental control such as dust isolation and airflow management. Compared with traditional industrial roll up doors, the high speed zipper door provides faster operation, lower maintenance, and better safety performance.
Key Features of High Speed Zipper Door
-
Self Repairing Zipper System
The advanced zipper track allows the curtain to automatically reinsert after accidental impact. This self repairing high speed door design significantly reduces downtime and avoids costly repairs.
-
High Speed Opening Performance
With an adjustable opening speed of up to 2.0 m/s, this rapid roll up door improves traffic efficiency for forklifts, AGVs, and workers in busy warehouse environments.
-
Flexible PVC Curtain Structure
The door curtain is made of durable PVC material (1.2–2.0 mm thickness), making it a reliable high speed fabric door suitable for high-cycle industrial applications.
-
Excellent Sealing Performance
The zipper structure eliminates the need for brushes, creating a dust proof high speed door with superior airtightness and environmental separation.
Product Parameters
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–5000 mm Door height: 1500–5000 mm |
| Control System (Servo System) | The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include: 1.LED Display: Shows fault codes for easy diagnostics. 2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement. 3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation. 4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions. |
| Drive Motor | The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism. 1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound. 2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications. |
| Operating Speed | Opening speed: 1.2-2.0 m/s (adjustable) Closing speed: 0.5-0.8 m/s (adjustable) |
| Door Curtain Material | Door curtain thickness: 1.2–2.0 mm Available colors: Blue, Orange, Gray |
| Frame Material | Cabin tracks made of galvanized steel, upgradable to stainless steel. |
| Sealing Performance | The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness. |
| Wind Resistance | Up to Grade 5 wind resistance. |
| Safety Features | 1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear. 2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration) |
| Manual Operation | In case of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards. |
| Insulation Protection | IP54 rating ensures dustproof and waterproof operation even in harsh environments. |
| Operating Methods | Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control. |
| Reserved Interfaces | The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices. |
Advantages in Warehouse and Logistics Applications
Improved Workflow Efficiency
As a high speed door for warehouse entrance, it reduces waiting time and enhances overall logistics productivity.
Energy Saving Industrial Door
Fast operation minimizes air exchange, making it an energy saving industrial door suitable for controlled environments.
Reduced Maintenance Cost
The self healing door structure lowers maintenance frequency and extends service life.
Application Scenarios

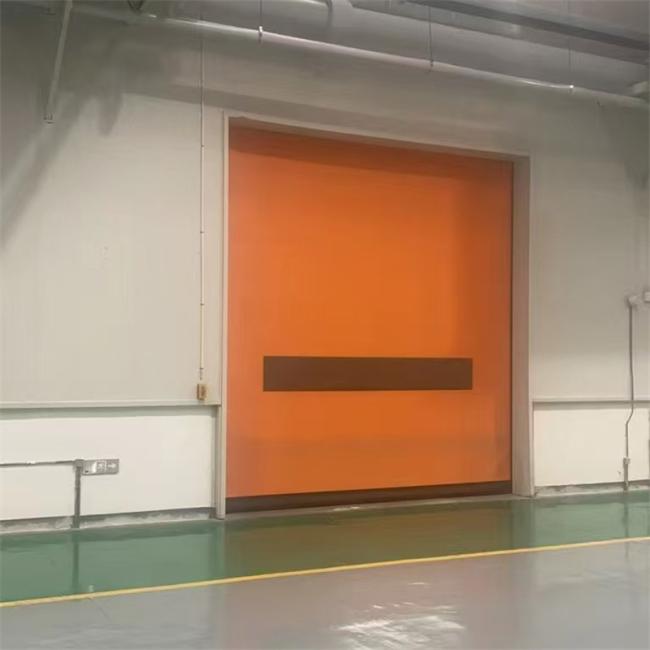

Warehouse High Speed Door
Ideal for internal logistics and goods transfer areas.
Logistics High Speed Door
Used in distribution centers and sorting facilities.
Distribution Center Rapid Door
Ensures smooth high-frequency operations.
Factory High Speed Door
Suitable for production and storage zones.
Why Choose Our High Speed Zipper Door
Professional Industrial Door Manufacturer
We specialize in high speed door manufacturing with years of export experience.
OEM & Custom Solutions
We provide custom high speed zipper door solutions based on project requirements.
FAQ
What is a High Speed Zipper Door?
It is a self repairing high speed door using a zipper system for automatic reset after impact.
Is it suitable for heavy-duty industrial use?
Yes, it is designed for high-frequency industrial environments.
Can it integrate with automation systems?
Yes, it supports AGV, PLC, and sensor integration.
Does it require frequent maintenance?
No, the self repairing system reduces maintenance needs.
|
|
|
