0.75-3.8KW Power Custom High Speed Zipper Door For Industrial Projects OEM Solutions

Price Negotiable

Price: negotiation

MOQ: IUNIT

Delivery Time: 10~15DAYS

Brand: YOHO

Product Description

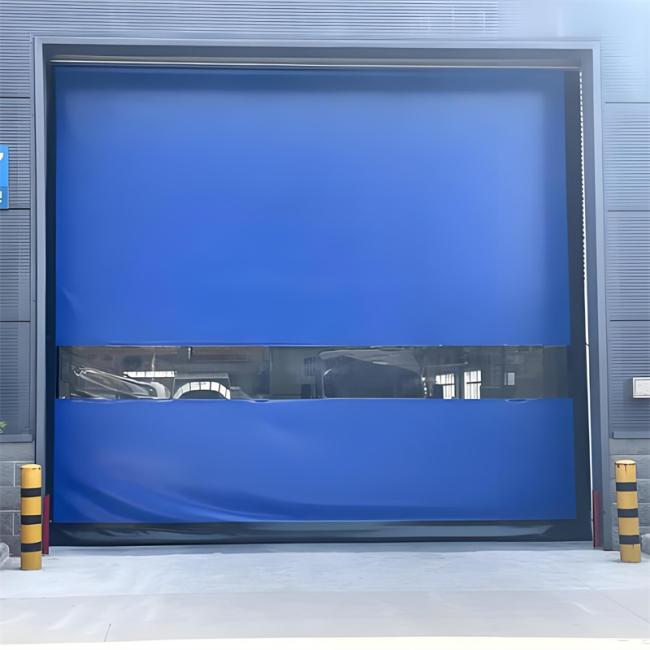

0.75-3.8KW Power Custom High Speed Zipper Door For Industrial Projects And OEM Solutions

Product Overview

The Custom High Speed Zipper Door is designed to meet specific industrial requirements across different industries. As a flexible and adaptable industrial high speed door, it can be tailored in size, speed, control system, and material to suit various project conditions.

This custom high speed door is widely used in warehouses, factories, and logistics centers where standard door sizes or configurations may not be sufficient.

Product Parameters

Parameter	Description
Maximum Available Size	Door width: 1000–5000 mm Door height: 1500–5000 mm
Control System (Servo System)	The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include: 1.LED Display: Shows fault codes for easy diagnostics. 2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement. 3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation. 4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions.
Drive Motor	The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism. 1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound. 2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications.
Operating Speed	Opening speed: 1.2–2.0 m/s (adjustable) Closing speed: 0.5-0.8 m/s (adjustable)

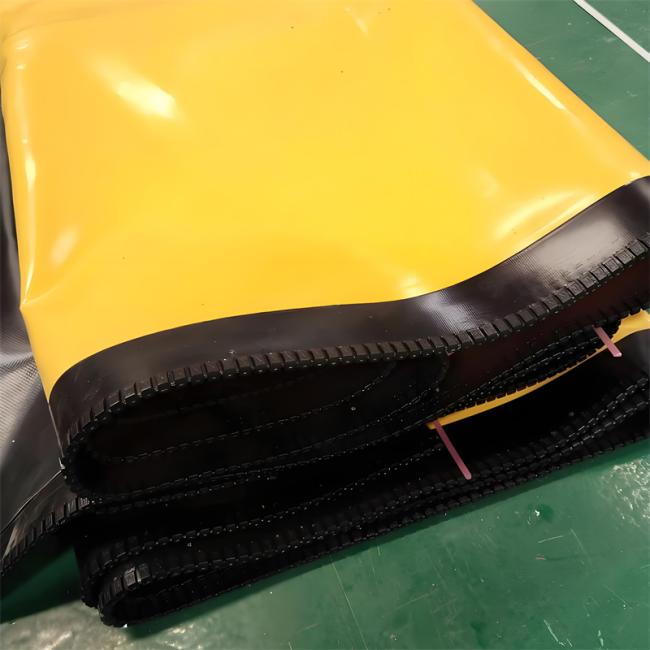

Door Curtain Material	Door curtain thickness: 1.2–2.0 mm Available colors: Blue, Orange, Gray
Frame Material	Cabin tracks made of galvanized steel, upgradable to stainless steel.
Sealing Performance	The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness.
Wind Resistance	Up to Grade 5 wind resistance.
Safety Features	1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear. 2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration)
Manual Operation	In case of power failure or system malfunction, the door can be opened manually using a standard wrench.
Power Requirements	220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards.
Insulation Protection	IP54 rating ensures dustproof and waterproof operation even in harsh environments.
Operating Methods	Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control.
Reserved Interfaces	The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices.
