Automatic Garage Door – Insulated Sectional Garage Door for Residential & Commercial Projects
Insulated Garage Door for Villas and Commercial Buildings
Product Overview
Our garage door is a high-performance automatic sectional garage door designed for villas, private houses, commercial storefronts, underground parking systems, and industrial facilities. Built with double-layer galvanized steel or aluminum panels filled with high-density polyurethane foam, this insulated door provides excellent thermal insulation, quiet operation, and long-term durability.
Available in both manual and motorized versions, this automatic garage door features standard lift tracks, flexible installation, and a compact overhead design that saves side space. It is widely used as a residential garage door, commercial garage door, villa garage door, and smart garage door for modern construction projects and wholesale distribution.
Garage Door Technical Specifications
Door Panel Specifications
| Item | Specification |
|---|---|
| Door Type | Sectional Garage Door |
| Opening Method | Automatic / Manual |
| Panel Thickness | 40mm standard (customizable) |
| Steel Thickness | ≥ 0.326mm inner and outer sheets |
| Insulation Material | CFC-free Polyurethane Foam |
| Foam Density | 48 ± 2 kg/m³ |
| Thermal Insulation | Excellent heat and sound insulation |
| Surface Finish | PE coating, three-coat two-bake process |
| Paint Thickness | Front ≥ 25μm, Back ≥ 10μm |
| Panel Flatness Tolerance | ±0.5mm |
| Colors | White, Silver Gray, Dark Gray, Red, Wood Grain |
| Lift Type | Standard Lift (customized available) |
| Motor Type | Automatic Garage Door Opener |
| Control Options | Remote Control, Wall Switch, Smart App |
| Certification | CE Standard |
| Customization | Size, Color, Surface Pattern, Windows |
High Quality Garage Door Panel Construction

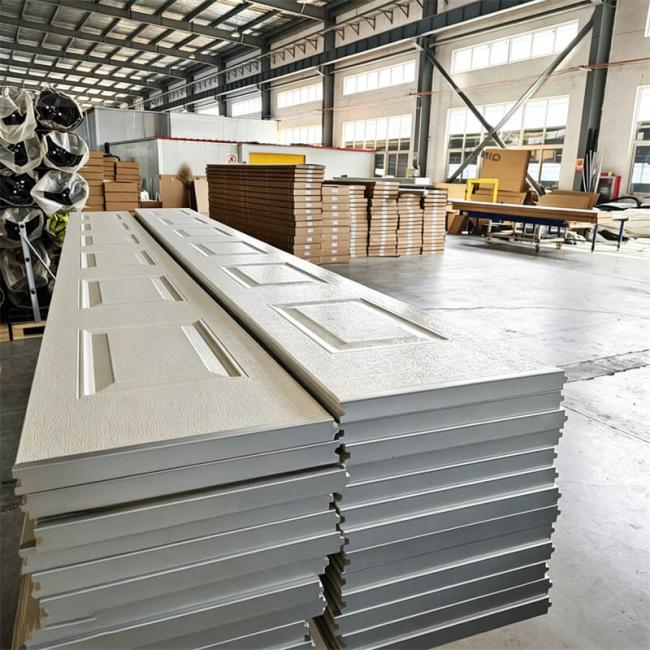

Double-Layer Steel or Aluminum Panels
The door panels are manufactured from premium galvanized steel or aluminum sheets and formed on an automated production line according to European CE standards.
High-Density Polyurethane Insulation
Each panel is injected with eco-friendly polyurethane foam, creating a rigid sandwich structure with superior thermal efficiency and structural strength.
Finger Protection Design
Optional anti-pinch panel profiles enhance operational safety for residential and commercial applications.
Decorative Surface Options
Available surface styles include:
- Woodgrain Pattern
- Stucco Texture
- Flush Smooth Panel
- Ribbed Line Pattern
- Square Embossed Design
Garage Door System Components
-
Balance Spring System
The counterbalance system consists of torsion springs or extension springs, cable drums, shafts, and lifting cables to ensure smooth and safe door movement.
-
Automatic Garage Door Opener
The motor delivers strong lifting force, low energy consumption, quiet operation, and long service life.
-
Track and Hardware System
Heavy-duty galvanized tracks, hinges, rollers, and brackets provide stable and reliable performance.
-
Safety Devices
Infrared sensors, obstacle detection, auto-reverse, and emergency manual release are available.
Unique Advantages for Different Applications
-
Residential Garage Door for Private Houses and Villas
Enhances home security, improves curb appeal, and provides quiet and convenient daily access.
-
Commercial Garage Door for Storefronts
Combines modern appearance with reliable operation for retail and commercial entrances.
-
Underground Parking Garage Door
Supports frequent opening cycles and integrates with access control systems.
-
Smart Garage Door for Luxury Homes
Allows remote monitoring and operation through smart home systems.
Frequently Asked Questions
The standard panel thickness is 40mm, with other thicknesses available upon request.
Yes, we provide custom dimensions, colors, panel styles, window options, and smart control systems.
Yes, all panels are filled with high-density polyurethane foam for excellent thermal insulation.
Manual and automatic versions are available, with remote control and optional smart app control.
Our garage doors are manufactured according to European CE standards.
