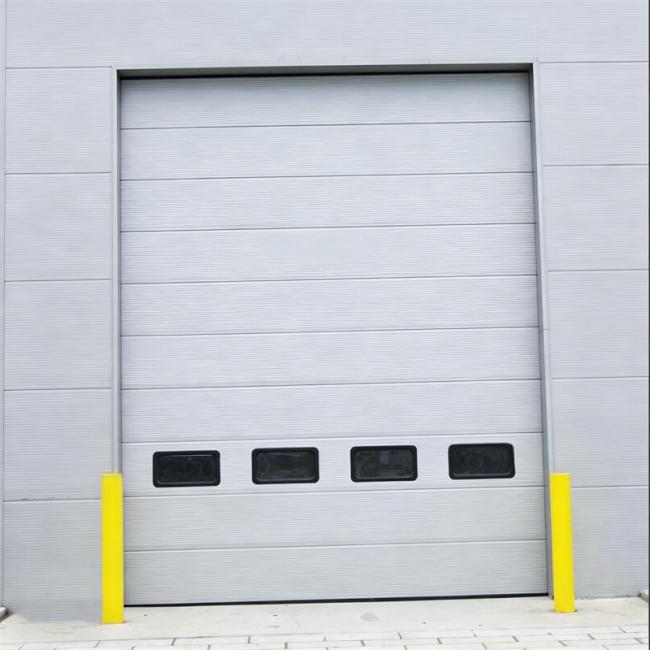

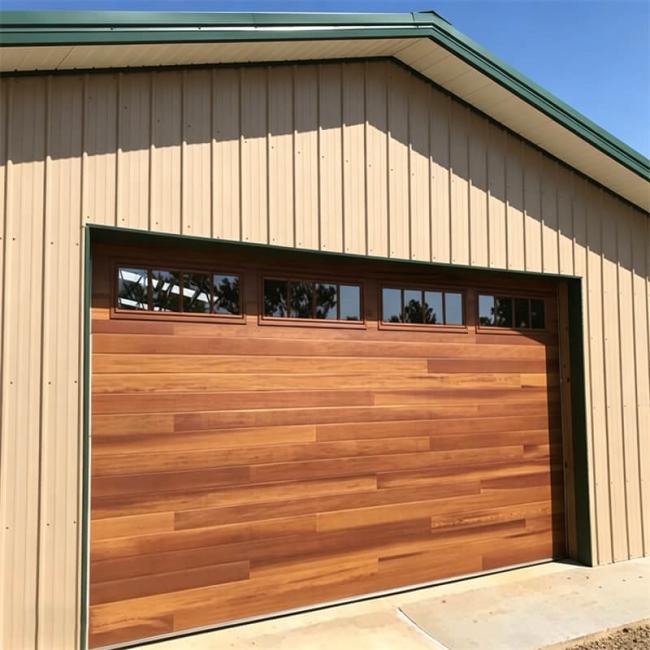

Modern Designed Automatic Steel Sectional High Speed Garage Door Windproof
Advanced Garage Door Solution for High-Traffic Environments
The Modern Designed Automatic Steel Sectional High Speed Garage Door With Windproof is engineered for demanding commercial and industrial applications requiring fast operation, thermal insulation, and strong wind resistance. Combining reinforced steel sectional panels with a high-speed motorized lifting system, this high speed garage door delivers reliable performance in logistics centers, underground parking facilities, workshops, and commercial buildings.
Designed with insulated sandwich panels and durable hardware systems, this steel sectional garage door minimizes energy loss while ensuring smooth, stable, and quiet operation. It is an ideal automatic garage door solution for projects requiring efficiency, safety, and modern architectural appearance.
Garage Door Technical Specifications
Door Panel Specifications
| Item | Specification |
|---|---|
| Door Type | Sectional Garage Door |
| Opening Method | Automatic / Manual |
| Panel Thickness | 40mm standard (customizable) |
| Steel Thickness | ≥ 0.326mm inner and outer sheets |
| Insulation Material | CFC-free Polyurethane Foam |
| Foam Density | 48 ± 2 kg/m³ |
| Thermal Insulation | Excellent heat and sound insulation |
| Surface Finish | PE coating, three-coat two-bake process |
| Paint Thickness | Front ≥ 25μm, Back ≥ 10μm |
| Panel Flatness Tolerance | ±0.5mm |
| Colors | White, Silver Gray, Dark Gray, Red, Wood Grain |
| Lift Type | Standard Lift (customized available) |
| Motor Type | Automatic Garage Door Opener |
| Control Options | Remote Control, Wall Switch, Smart App |
| Certification | CE Standard |
| Customization | Size, Color, Surface Pattern, Windows |
Applications of Automatic Steel Sectional Garage Door
-
Commercial Garage Entrances
Used for office buildings, shopping malls, and underground parking facilities.
-
Warehouse and Logistics Centers
Provides fast access for loading and unloading operations.
-
Industrial Manufacturing Plants
Suitable for production workshops and heavy-duty industrial environments.
-
Underground Parking Systems
Supports high-frequency vehicle movement with reliable automation.
-
Modern Architectural Projects
Combines industrial performance with modern visual aesthetics.
Structural Components of High Speed Garage Door
-
Sectional Door Panels
Manufactured using galvanized steel sheets and polyurethane foam injection technology.
-
Balance Spring System
Torsion spring systems provide stable lifting force and smooth movement.
-
Automatic Door Opener
Heavy-duty motor offers strong power, low energy consumption, and long service life.
-
Safety Sensor System
Infrared protection and automatic reverse improve operational security.
Frequently Asked Questions
Q1: What makes this garage door windproof?
The reinforced tracks, heavy-duty hinges, and strengthened panel structure improve wind resistance.
Q2: Is the opening speed adjustable?
Yes, the motor system supports adjustable opening and closing speeds.
Q3: Can the door size be customized?
Yes, custom dimensions and lifting methods are available.
Q4: Is the garage door insulated?
Yes, the panels are filled with high-density polyurethane foam insulation.
Q5: What applications is this door suitable for?
It is suitable for commercial buildings, warehouses, factories, and underground parking systems.
Q6: Do you provide OEM service?
Yes, OEM and ODM manufacturing services are supported for distributors and project contractors.
