PVC Industrial Fast Door With Hygienic Design For Pharmaceutical Clean Rooms

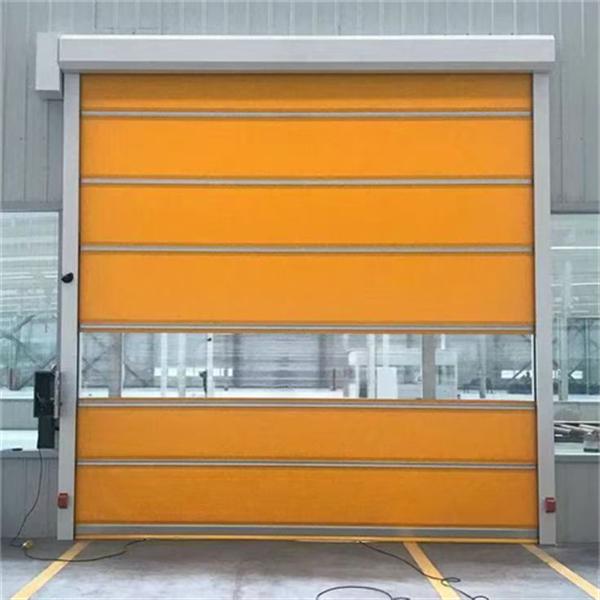

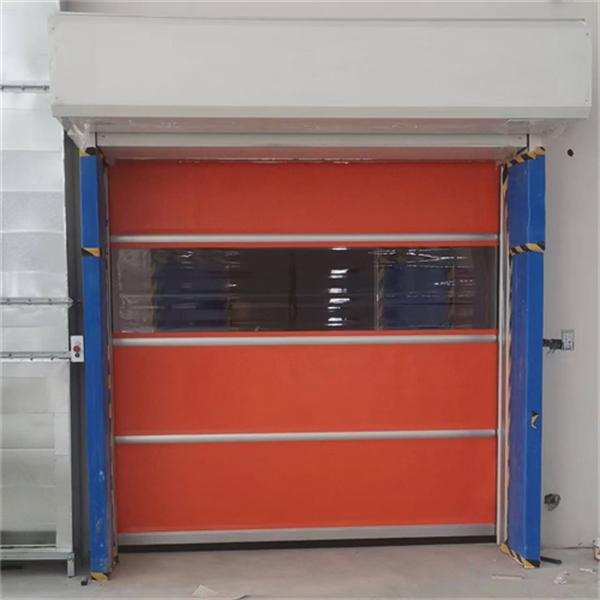

Clean Room High Speed Door
Product Introduction
Clean rooms require strict control of airborne particles, pressure differences, temperature, and personnel movement. Every time a door remains open too long, contaminants can enter the controlled environment, affecting product quality and compliance standards. For pharmaceutical plants, electronics manufacturing facilities, laboratories, and clean production areas, maintaining a stable environment is critical.
The Clean Room High Speed Door is specifically designed for controlled environments where cleanliness, efficiency, and reliability are essential. With rapid opening and closing speeds, excellent sealing performance, and smooth hygienic surfaces, this Industrial Fast Door helps reduce contamination risks while supporting efficient movement of personnel, carts, and materials.
Key Features
-
High-Speed Operation
Fast opening and closing cycles minimize exposure time and help maintain clean room pressure balance.
-
Superior Sealing Performance
Side guide seals and bottom sealing systems reduce dust infiltration and uncontrolled airflow.
-
Smooth Hygienic Surface
PVC curtain and optional stainless steel structure allow easy cleaning and routine sanitation.
-
Intelligent Access Control
Compatible with radar sensors, push buttons, card readers, interlock systems, and clean room automation controls.
-
High-Frequency Operation
Designed for continuous daily use in facilities with frequent personnel and material movement.
|
|
|
Benefits for Clean Room Facilities
-
Reduce Contamination Risks
Fast door operation minimizes airborne particle transfer between different production areas.
-
Maintain Pressure Stability
Supports clean room pressure control requirements and environmental consistency.
-
Improve Production Efficiency
Allows personnel and material movement without compromising clean room integrity.
-
Reduce Energy Consumption
Excellent sealing reduces air leakage and HVAC energy loss.
-
Support Regulatory Compliance
Helps facilities maintain controlled conditions required in regulated industries.
Applications
- Pharmaceutical Clean Rooms
- Medical Device Manufacturing
- Electronics Assembly Plants
- Semiconductor Production Facilities
- Biotechnology Laboratories
- Precision Manufacturing Workshops
- Research & Development Centers
- Controlled Packaging Areas
Product Specifications
| Material | PVC curtain / Galvanized steel / Stainless steel |
|---|---|
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control |
Why Choose Changzhou YOHO Industrial Door Co., Ltd.
Changzhou YOHO Industrial Door Co., Ltd. specializes in Industrial High Speed Doors, Clean Room Doors, Loading Dock Equipment, and Industrial Access Solutions.
- ISO 9001 & CE Certified
- OEM & ODM Support
- Professional Manufacturing Experience
- Global Export Capability
- Customized Clean Room Solutions
|
|
|
FAQ
What is a clean room high speed door?
A clean room high speed door is a fast-operating industrial door designed to reduce contamination and maintain controlled environmental conditions.
Why are high speed doors used in clean rooms?
They minimize air exchange, help maintain pressure differentials, and reduce particle contamination during traffic movement.
Can clean room doors help maintain positive pressure?
Yes. Fast closing speeds and effective sealing help support clean room pressure control systems.
What industries use clean room high speed doors?
Pharmaceutical manufacturing, electronics production, semiconductor facilities, laboratories, and medical device factories commonly use them.
Are clean room high speed doors easy to clean?
Yes. Smooth PVC curtains and optional stainless steel frames are designed for easy cleaning and sanitation.
