Invisible Holographic LED Display Wall Mounted Full Color 50 Watts High Brightness

Price Negotiable
Price: negotiable
MOQ: 1000
Delivery Time: Negotiable
Brand: Cheer
Product Description
Holographic Invisible LED Display

The same series as the crystal transparent screen, much more cost-effective proposal for indoor transparent display.

Specification Table
Parameter HT Series HI Series
Model CHEER-HT2.5 / HT3.5 / HT3.91 / HT5 CHEER-HI6.25 / HI7.8 / HI10 / HI15.625 / HI20
Module Size 1500×160mm / 1500×224mm / 1500×250mm 1500×250mm / 1500×240mm
Pixel Density 160000~40000 dots/㎡ 25600~4096 dots/㎡
Transparency 70%~88% 85%~98%
Weight 2kg/㎡ 2kg/㎡
Thickness 0.8mm 0.8mm
Viewing Angle 160° / 160° 160° / 160°
Refresh Rate ≥3840Hz ≥3840Hz
Max Power Consumption ≤300~≤800W/㎡ ≤800~≤400W/㎡
Average Power Consumption ≤240W/㎡ ≤240~≤120W/㎡
Brightness ≤5000cd/㎡ ≤5000cd/㎡
Lifespan 100000 hours 100000 hours
IP Rating IP43 IP43
Forward-Looking Design

Our patented zero-code technology and extensive IP portfolio set a new global standard for invisible screen displays.

Unparalleled Transparency

With up to 90% transparency, the Holographic Invisible Screen seamlessly integrates into any environment.

Versatile Installation

Easily installed without a back frame and can be cut or bent to fit any space.

Features
  • Easily installation

    Lightweight(2kg/m2)

    Easily installed without a back frame and can be cut or bent to fit any space.

    Thin(1-3mm)

    Seamlessly integrates with glass and other surfaces.

    Up to 90% Transparency

    Delivers an unobtrusive, fully transparent display experience.

  • High brightness

    The brightness can be 1500-3000CD/SQM, it can meet all indoor requirement. 14-16 bits, high gray scale. 1920HZ - 3840HZ, high refresh rate.

Application Scenarios
Product Selling Points

  • Flexible and cuttable, adaptable to various irregular and complex scenarios
  • Ultra-light and ultra-thin, double-sided mounting on glass with minimalist installation and maintenance
  • Visible, semi-invisible, invisible — 90% transparency + 9000:1 contrast ratio for high-definition images
  • Integrated unit sizes: 11m, 22m, 1*2m — free splicing without restrictions
  • 90% high transparency, barely blocking natural light
  • High brightness of 5000cd/m², vibrant colors even under direct sunlight

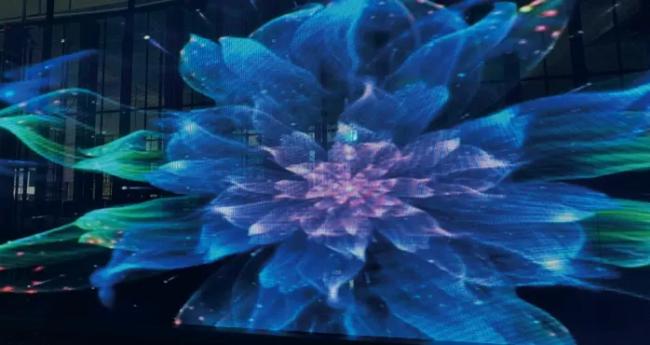

Application Scenarios

  • Commercial Complexes: Glass curtain walls, atriums, glass railings, glass showrooms, observation elevators, etc.
  • Brand Chains: Tea and catering stores, bakeries, clothing/jewelry shops, 3C experience stores, bank branches
  • Advertising & Media: Transportation hubs such as airports, high-speed rail stations, subway stations, bus terminals
  • Performing Arts & Stage Design: Bars/clubs, stage backdrops, variety shows, cultural tourism landscapes
